Homework Answers
Add Answer to:

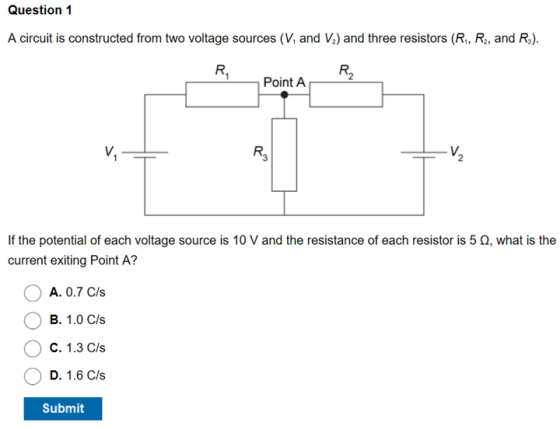

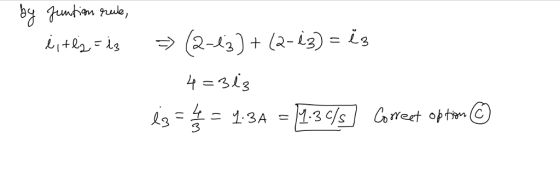

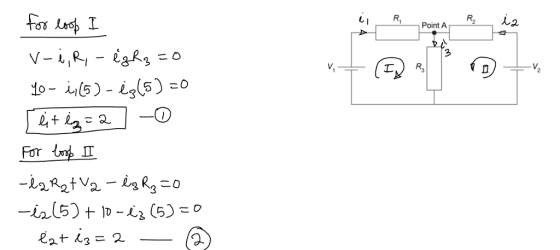

Question 1 A circuit is constructed from two voltage sources (V and Va) and three resistors...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
A circuit is constructed with five resistors and a battery as shown. The battery voltage is...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V 12 V. The values for the resistors are: R148 , R2- 128 Ω, R3-127 Ω, and R4-107 Ω. The value for Rx is unknown, but it is known that 14, the current that flows through resistor R4, is zero 1) What is 1, the magnitude of the current that flows through the resistor R1? Submit 2) What is V2, the magnitude of the...
A circuit is constructed with five resistors and a battery as shown. The values for the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
A circuit is constructed with five resistors and one real battery as shown above right. We...
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R = R3 = 40 N, R4 = Rs = 80 and R2 = 142 N. The measured voltage across the terminals of the batery is Vbattery = 11.41 V. I R R R R4...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
A circuit is constructed with five resistors and a battery as shown. The battery voltage is...
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V = 12 V. The values for the resistors are: R1 = 64 Ω, R2 = 110 Ω, R3 = 131 Ω, and R4 = 135 Ω. The value for RX is unknown, but it is known that I4, the current that flows through resistor R4, is zero. 1) What is I1, the magnitude of the current that flows through the resistor R1? A...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery...
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
A circuit is constructed with six resistors and two batteries as shown The battery voltages are V1=18 V and V2=12 V.
A circuit is constructed with six resistors and two batteries as shown The battery voltages are V1=18 V and V2=12 V. The positive terminals are indicated with a + sign, The values for the resistors are: R1=R5=66 Ω, R2=R6=83 Ω R3=55 Ω, and R4=69 Ω. The positive directions for the currents I1, I2 and I3 are indicated by the directions of the arrows.1) What is V4, the magnitude of the voltage across the resistor R4? 2) What is I3, the current...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω)...
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
A circuit is constructed with
five resistors and one real battery as shown above right. We model.
The real battery as an ideal emf V = 12 V in series with an
internal resistance r as shown above left. The values for the
resistors are: R1 = R3 = 22 Ω, R4 = R5 = 82 Ω and R2 = 147 Ω. The
measured voltage across the terminals of the batery is Vbattery =
11.6 V.
A circuit is constructed...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
A circuit is constructed with five resistors and a battery as shown. The battery voltage is V 12 V. The values for the resistors are: R148 , R2- 128 Ω, R3-127 Ω, and R4-107 Ω. The value for Rx is unknown, but it is known that 14, the current that flows through resistor R4, is zero 1) What is 1, the magnitude of the current that flows through the resistor R1? Submit 2) What is V2, the magnitude of the...
A circuit is constructed with five resistors and a battery as shown. The values for the resistors are: R1 = R5 = 43 A, R2 = 121 , R3 = 64, and R4 = 1300. The battery voltage is V = 12 V. R1 b 4 Ra R5 1) What is Rab, the equivalent resistance between points a and b? 76.92 Submit 2) What is Rac, the equivalent resistance between points a and c? 119.9 Submit 3) What is 15,...
A circuit is constructed with five resistors and one real battery as shown above right. We model. The real battery as an ideal emf V = 12 V in series with an internal resistance r as shown above left. The values for the resistors are: R = R3 = 40 N, R4 = Rs = 80 and R2 = 142 N. The measured voltage across the terminals of the batery is Vbattery = 11.41 V. I R R R R4...
21.7- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 10.0 Ω and 24.0 Ω respectively what is the current through the resistor R? R1 R2 Ri Submit Answer Tries 0/10 What is the current through the resistor R2? Submit Answer Tries o/1o What is the current through the resistor R3? Submit Answer Tries 0/10
21.8- Resistors in Series and Parallel In the circuit below the voltage supplied by the battery is 12.0 V and the resistance of the resistors, R1, R2 and R3 are 6.00 Ω, 12.0 Ω and 18.0 Ω respectively, what is the power output of the resistor R1? R1 R2 R3 Submit Answer Tries 0/10 What is the power output of the resistor R2? Submit Answer Tries 0/10 What is the power output of the resistor R3? Submit Answer Tries 0/10
Consider the circuit below with three resistors Two resistors, R2 (10 Ω) and R3 (10 Ω) are connected in parallel to another resistor R1 (5 Ω). And the circuit is connected to a 20 V power supply 9. Find the equivalent resistance (R) of the circuit shown above. (3 pts) Answer 10. Find the current that goes through R1. (4 pts) Answer 11. Find the potential difference through resistors in parallel (R2 and R3). (4 pts) Answer
