Homework Answers
Add Answer to:

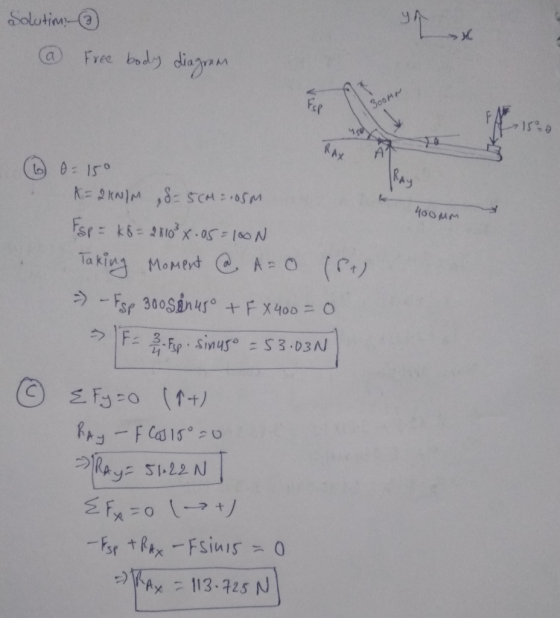

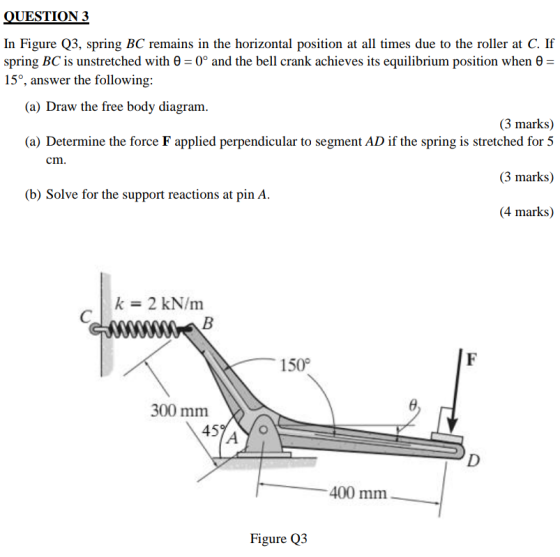

QUESTION 3 In Figure Q3, spring BC remains in the horizontal position at all times due...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
Q3 QUESTION 3 The block with mass of 10 kg is attached with the spring located...
Q3
QUESTION 3 The block with mass of 10 kg is attached with the spring located on the smooth plane as shown in Figure Q3. The plane has been raised to 8 =30° from horizontal surface. When the force F= 200 N is applied, the block started moving down the plane with a speed of 2 m/s. We know that when s = 0.4 m, the spring in an unstretched condition. Given the spring has a stiffness, k=300 N/m (a)...
The length of AB is 3000mm and AD is 4000mm and the horizontal load at C...
The length of AB is 3000mm and AD is 4000mm and the horizontal load at C is >40kn as my writing is messy. Thanks. and a) A pinned support to the loading have Jointed frame ABCD A roller indicated Figure Circular cross-section and materias. supported by Subjected Ale members made of stee are . Determine at A and D the support reactions 2) Determine an the member forces. at point c using 3) Find out the Horizontal displacement table template...
AB= 3000mm AD= 4000mm especially struggling with part 3 of this question. and Q.) A Jointed...
AB= 3000mm
AD= 4000mm
especially struggling with part 3 of this question.
and Q.) A Jointed frame pinned Support A, a to the loading indicated have Circular Cross-Section materials. roller Figure and supported by a subjected ALL members made of steel all are at A and D . Determine the support reactions 2) Determine the member forces, all at point a using 3) Find out the Horizontal displacement template provided. table • 40kn Free or simply Booom, A Figure Q1:...
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to t...
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segm...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
Need answers for all questions. Thanks. QUESTION 2 ( 6 marks) a) Complete the free body...
Need answers for all questions. Thanks.
QUESTION 2 ( 6 marks) a) Complete the free body diagrams (FBD 1 and FBD 2). b) Complete the free body diagrams (FBD 1 and FBD 2). All contacting surfaces are smooth. Member ACE has a mass m and its center of gravity is at point C. Pumas FBD2 QUESTION 3 ( 6 marks) Determine the reaction at pin O and the force in hydraulic cylinder BC for the crane given in Figure Q3...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requi...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, Ơalkw-168 MPa and allowable shear stress. llo 110 MPa, choose the lightest wide flange beam from Appendix. Given data E-225 GPa, p 7850 kg/m3. Assume A is a pin and B a roller support Rasuk yang dsokong mudah Disebabkan sebuah keperluan tertentu,...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
The bar, WA=100[lb] and L=3[ft], shown in figure is initially in the vertical position. The bar is subjected to a couple moment of M=20 [lb-ft] and a force F=50[l b], which is always perpendicular to the end of bar. Also, the spring is attached to bar at distance L / 2 from point A, and has unstretched length of l0=1.2[ft]. The spring remains in horizontal position throughout the motion due to the roller guide at B. Determine angular velocity of...
Q3
QUESTION 3 The block with mass of 10 kg is attached with the spring located on the smooth plane as shown in Figure Q3. The plane has been raised to 8 =30° from horizontal surface. When the force F= 200 N is applied, the block started moving down the plane with a speed of 2 m/s. We know that when s = 0.4 m, the spring in an unstretched condition. Given the spring has a stiffness, k=300 N/m (a)...
The length of AB is 3000mm and AD is 4000mm and the horizontal load at C is >40kn as my writing is messy. Thanks. and a) A pinned support to the loading have Jointed frame ABCD A roller indicated Figure Circular cross-section and materias. supported by Subjected Ale members made of stee are . Determine at A and D the support reactions 2) Determine an the member forces. at point c using 3) Find out the Horizontal displacement table template...
AB= 3000mm
AD= 4000mm
especially struggling with part 3 of this question.
and Q.) A Jointed frame pinned Support A, a to the loading indicated have Circular Cross-Section materials. roller Figure and supported by a subjected ALL members made of steel all are at A and D . Determine the support reactions 2) Determine the member forces, all at point a using 3) Find out the Horizontal displacement template provided. table • 40kn Free or simply Booom, A Figure Q1:...
0 Question 3 a) Using the Force Method, determine the reactions at all supports. In addition to the applied loads, support at A rotates 0.005 radian counterclockwise Given E=200GPa and i=150 x 106 mm! 200 x 109 (20 marks) oda rotation 5 kN/m 25 kNm 10 m 6 m By Figure 3 b) If a spring is connected at point C, determine the force in this spring using the force Method By comparing to the solution in Question 3(a), what...
3- (SKMMIH3/SME2113) from plastic having modulus of elasticity, E-4.0GPa a) Bar ABCD shown in Figure Q3a is made The bar consists of three segments, AB, BC, and CD. Segment AB is hollow and segments BC and CD are solids If the shortening (contraction) of bar ABCD is limited to 4.0 mm, determine the maximum allowable force P to be applied at C. (8 marks) 90 mm ΟΙ 00 mm 1080 min PL 500 mm 250 mm 250 mm Figure Q3a...
Need answers for all questions. Thanks.
QUESTION 2 ( 6 marks) a) Complete the free body diagrams (FBD 1 and FBD 2). b) Complete the free body diagrams (FBD 1 and FBD 2). All contacting surfaces are smooth. Member ACE has a mass m and its center of gravity is at point C. Pumas FBD2 QUESTION 3 ( 6 marks) Determine the reaction at pin O and the force in hydraulic cylinder BC for the crane given in Figure Q3...
The simply supported beam carries a uniform load. of 30 kN/m is shown in Figure 3. Due to a certain requirement, maximum deflection should not be more than 1/360 of the span length. If the allowable bending stress, Ơalkw-168 MPa and allowable shear stress. llo 110 MPa, choose the lightest wide flange beam from Appendix. Given data E-225 GPa, p 7850 kg/m3. Assume A is a pin and B a roller support Rasuk yang dsokong mudah Disebabkan sebuah keperluan tertentu,...
A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
