The CPU design team is designing an instruction set with three classes of instructions. Parameters are...
The CPU design team is designing an instruction set with three classes of instructions. Parameters are given in the following table. Consider a program with 65% ALU instructions, 25% memory instructions, and 10% control instructions. What is the average CPI for this CPU?
| Clock Rate | 8 GHz |
| CPI for ALU Inst. | 7 |
| CPI for Memory Inst. | 15 |
| CPI for Control Inst. | 8 |

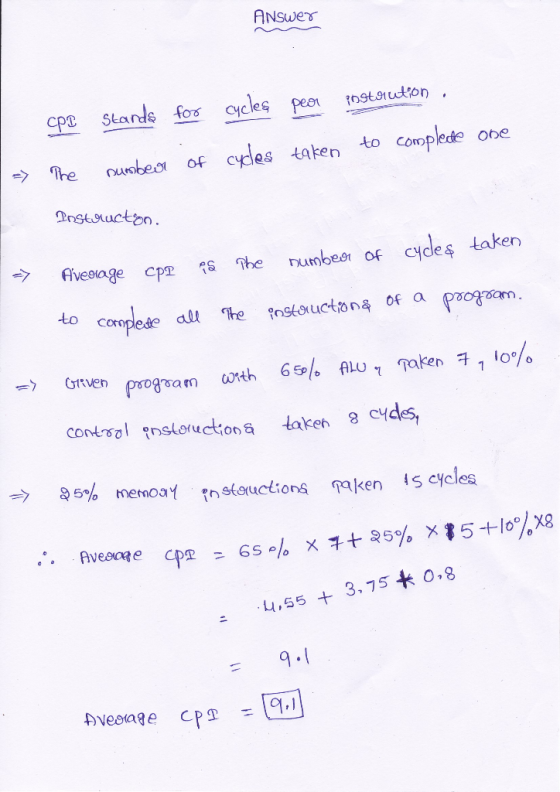

Homework Answers
