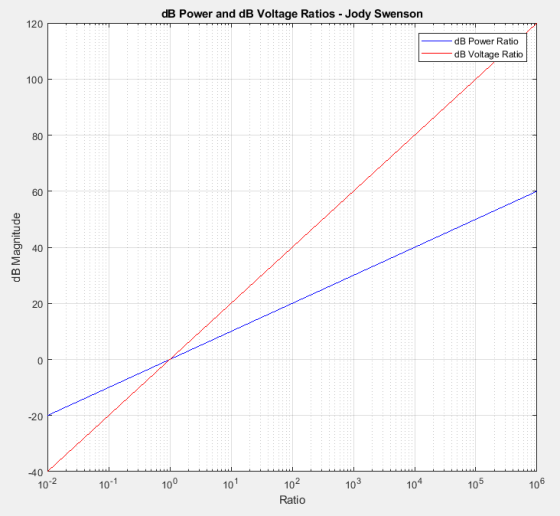

4. Using MATLAB, generate an m-file to produce a plot of dB power ratio (10log10(Ratio)), and dB voltage ratio (20log10(Ratio)). Use the logspace() command to generate a logarithmic Ratio vector ranging from 10-2 to 106, consisting of 2000 points. Use the semilogx() command to plot dB_Power ratio and dB_Voltage ratio versus Ratio. Include the title shown below ending with your name, x-axis label, y-axis label and legend as shown in the plot below.
Homework Answers
Matlab Script:
Ratio = logspace(-2,6,2000);
dB_Power_ratio = 10*log10(Ratio);
dB_Voltage_ratio = 20*log10(Ratio);
semilogx(Ratio,dB_Power_ratio);
hold on;
semilogx(Ratio,dB_Voltage_ratio);
title('dB Power dB Voltage Ratios - Your Name');
xlabel('Ratio');
ylabel('dB Magnitude');
legend('dB Power Ratio','dB Voltage Ratio');
hold off;
