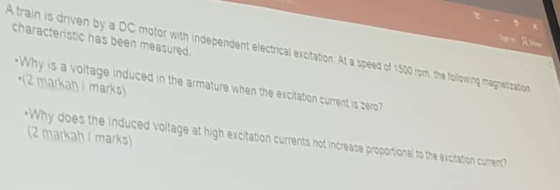

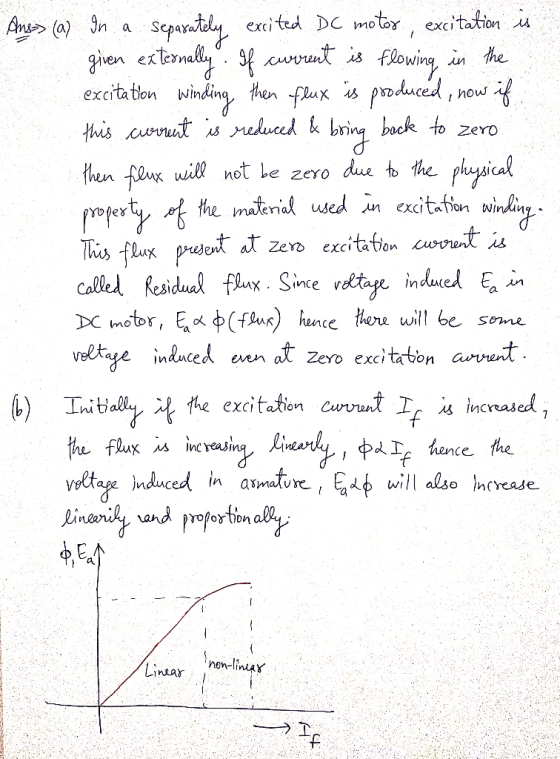

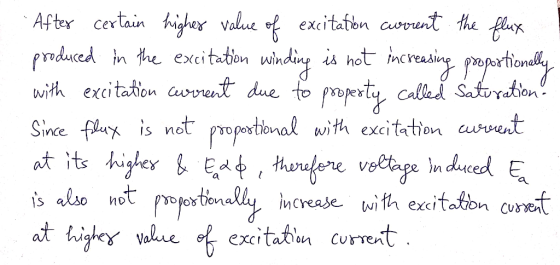

A train is driven by a DC motor with independent electrical excitation At a speed cf...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor with an armature resistance of 0.04 Q and a field resistance of 50 Q. The motor has compensating windings, so armature reactance can be ignored. Mechanical and core losses may be ignored also. The moter is driving a load toque that is proportional with speed, Ti a (n). The motor is driving a load with a line current of 80 A and an initial...
Given a 1/4 hp, separately excited, dc motor with the following parameters: K = 0.61, R, 15Ω, La-...
I can not seem to get the right answers. Thank you!
Given a 1/4 hp, separately excited, dc motor with the following parameters: K = 0.61, R, 15Ω, La-120mb. J = 0.005, and b = 0.0006. The armature voltage is controlled by a 120-V dc PWM source operating at 100 Hz 1. What is the armature current if the no-load speed is 1800 rpm when the armature supply is operated at a 100% duty cycle? 2. What is the no-load...
A permanent magnet DC motor is supplied from a 12 V source and turns at 500...
A permanent magnet DC motor is supplied from a 12 V source and turns at 500 RPM (steady-state) experimentally determined as 0.1 Nms2 and the frictions are negligible. The electrical parameters of the rotor winding are measured 0.82, and 5mH. Obtain the transfer function of the motor by considering the armature voltage as input and shaft speed in rad/s as output. with an armature current of 1A. The moment of inertia is
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 6...
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
A 6 hp, 180 V shunt dc motor draws a full-load current of 30 A from the power supply. The motor h...
A 6 hp, 180 V shunt dc motor draws a full-load current of 30 A from the power supply. The motor has a field (shunt) resistance of 150 Ω. The armature resistance of the motor is 0.1 Ω. When the motor speed is 1800 rpm (this is not the full-load speed), the relationship between the induced voltage
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006...
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006 Ω, when it is connected to a 240 V supply, it draws 90 A from the supply and rotates at 1200 rpm. Find the torque developed by the motor at this operating condition. If the torque developed is 280 Nm for the same excitation and same supply voltage, then find the speed and armature current. a) b)
If a manufacturer's specifications for a PM DC motor are as follows, what are the motor's...
If a manufacturer's specifications for a PM DC motor are as follows, what are the motor's no-load speed, stall current, starting torque, and maximum power for an applied voltage of 10 V? ■ Torque constant 0.12 Nm/A Electrical constant 12 V/1000 RPM Armature resistance-: 1.5 Ω
Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Re...
Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Resistor Ra Ia Figure 5: Simplified model of DC Motor (a) Write the three characteristic equations that determine the behavior of the DC motor. Denote torque constant and speed constant as Ka, K, respectively. (b) Motor parameters are the quantities that define the behavior of the motor. List the motor parameters from the described model. What are their units? (c) For given...
3) The armature of a permanent-magnet dc motor has a resistance of 0.72 and draws a...
3) The armature of a permanent-magnet dc motor has a resistance of 0.72 and draws a current of 50 A when the speed is 1500 r/min when the armature is connected to a source of 48 V, calculate the following: a) The induced emf, EA, and the torque, T, produced at this speed. b) The motor speed, n (in rpm), when the torque is 2 Nm. c) The armature current at 1600 r/min. d) The torque at 1600 r/min. e)...
A motor is given in Figure 1 with the terminal voltage of the motor is 320 V, armature resistance of 2 2, series field resistance of 3 2, and KC value of 0.248. Sebuah motor diberi dalam Rajah 1 deng...
A motor is given in Figure 1 with the terminal voltage of the motor is 320 V, armature resistance of 2 2, series field resistance of 3 2, and KC value of 0.248. Sebuah motor diberi dalam Rajah 1 dengun voltan pangkalan pada motor sebanyak 320 V, rintangan angker adalah 2 S rintangan madan sesiri adalah 3 Q, dan nilai KC sebanyak 0.248. Figure 1 Rajah I a) Calculate the speed of the motor in Figure 1 when the armature...
Question (3) Speed Control [10 Marks A 50 hp, 220 V, 1500 rpm DC shunt motor with an armature resistance of 0.04 Q and a field resistance of 50 Q. The motor has compensating windings, so armature reactance can be ignored. Mechanical and core losses may be ignored also. The moter is driving a load toque that is proportional with speed, Ti a (n). The motor is driving a load with a line current of 80 A and an initial...
I can not seem to get the right answers. Thank you!
Given a 1/4 hp, separately excited, dc motor with the following parameters: K = 0.61, R, 15Ω, La-120mb. J = 0.005, and b = 0.0006. The armature voltage is controlled by a 120-V dc PWM source operating at 100 Hz 1. What is the armature current if the no-load speed is 1800 rpm when the armature supply is operated at a 100% duty cycle? 2. What is the no-load...
A permanent magnet DC motor is supplied from a 12 V source and turns at 500 RPM (steady-state) experimentally determined as 0.1 Nms2 and the frictions are negligible. The electrical parameters of the rotor winding are measured 0.82, and 5mH. Obtain the transfer function of the motor by considering the armature voltage as input and shaft speed in rad/s as output. with an armature current of 1A. The moment of inertia is
A separately excited dc motor is fed by a 3-phase, 6-pulse converter shown in figure Q5. The 3-phase line is a 500 V, 60 Hz supply. At rated condition, the dc motor armature current is 15 A. The dc motor armature resistance is 0.15 Ω and the rated speed is 1700 rpm. If the delay angle of the converter is 36 °, calculate the following: 3-phase (2 0 line Figure Q5. (2 marks) Rated voltage of the motor a. b....
P4-17) A 240 V separately exited dc motor has an armature resistance of Ra = 006 Ω, when it is connected to a 240 V supply, it draws 90 A from the supply and rotates at 1200 rpm. Find the torque developed by the motor at this operating condition. If the torque developed is 280 Nm for the same excitation and same supply voltage, then find the speed and armature current. a) b)
If a manufacturer's specifications for a PM DC motor are as follows, what are the motor's no-load speed, stall current, starting torque, and maximum power for an applied voltage of 10 V? ■ Torque constant 0.12 Nm/A Electrical constant 12 V/1000 RPM Armature resistance-: 1.5 Ω
Question 3: DC motors can be simplistically modeled as shown in Figure 5 MoTor back emf Vi: +1 Resistor Ra Ia Figure 5: Simplified model of DC Motor (a) Write the three characteristic equations that determine the behavior of the DC motor. Denote torque constant and speed constant as Ka, K, respectively. (b) Motor parameters are the quantities that define the behavior of the motor. List the motor parameters from the described model. What are their units? (c) For given...
3) The armature of a permanent-magnet dc motor has a resistance of 0.72 and draws a current of 50 A when the speed is 1500 r/min when the armature is connected to a source of 48 V, calculate the following: a) The induced emf, EA, and the torque, T, produced at this speed. b) The motor speed, n (in rpm), when the torque is 2 Nm. c) The armature current at 1600 r/min. d) The torque at 1600 r/min. e)...
A motor is given in Figure 1 with the terminal voltage of the motor is 320 V, armature resistance of 2 2, series field resistance of 3 2, and KC value of 0.248. Sebuah motor diberi dalam Rajah 1 dengun voltan pangkalan pada motor sebanyak 320 V, rintangan angker adalah 2 S rintangan madan sesiri adalah 3 Q, dan nilai KC sebanyak 0.248. Figure 1 Rajah I a) Calculate the speed of the motor in Figure 1 when the armature...
