computer architecture and organization

Figure Q20 shows a space time diagram to execute n instructions by CAOTM processor The instruction cycle comprises 4 steps; f

(4 marks) (c) Calculate the total execution time needed by the pipelined computer to execute a C++program having 3000 instruc

(4 marks) Calculate the performance speed up of the pipelined computer over non-pipelined (d) computer to execute similar C++

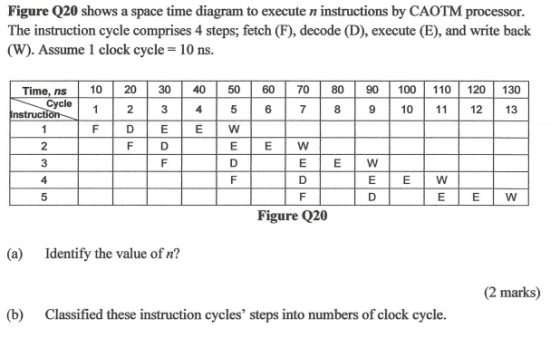

Figure Q20 shows a space time diagram to execute n instructions by CAOTM processor The instruction cycle comprises 4 steps; fetch (F), decode (D), execute (E), and write back (W). Assume 1 clock cycle= 10 ns. 10 20 30 40 50 60 70 80 90 100 110 120 130 Time, ns Cycle Instruction- 1 2 3 4 6 7 8 9 10 11 13 1 F D E E W 2 F E E W D 3 E W 4 E E W E 5 F E W Figure Q20 Identify the value of n? (a) (2 marks) (b) Classified these instruction cycles' steps into numbers of clock cycle. 212 wolu
(4 marks) (c) Calculate the total execution time needed by the pipelined computer to execute a C++program having 3000 instructions
(4 marks) Calculate the performance speed up of the pipelined computer over non-pipelined (d) computer to execute similar C++ program in Q20(c).
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

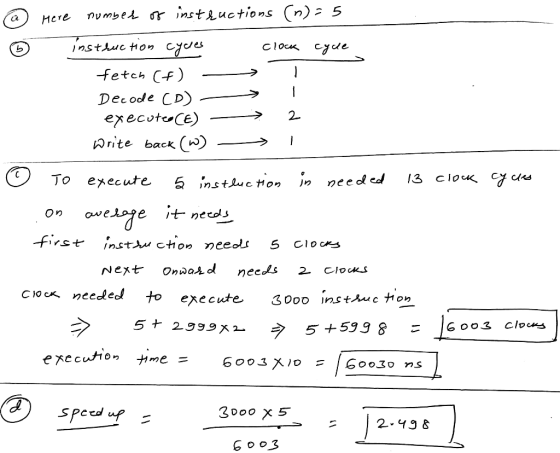

nstsuctions (n)- 5 nvmbed Mere Cloc ycde yees InstlucHon -fetch C Decode CD) execotoCE) 2. rite back clo cues To execute 5 in

0 0
Add a comment
