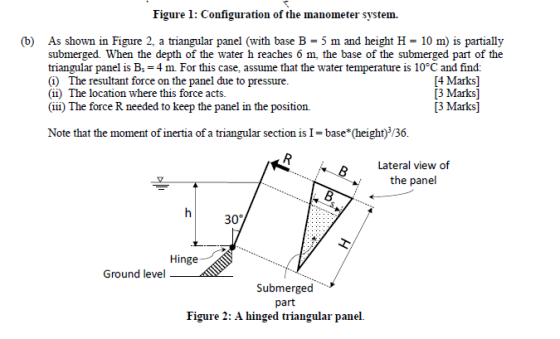

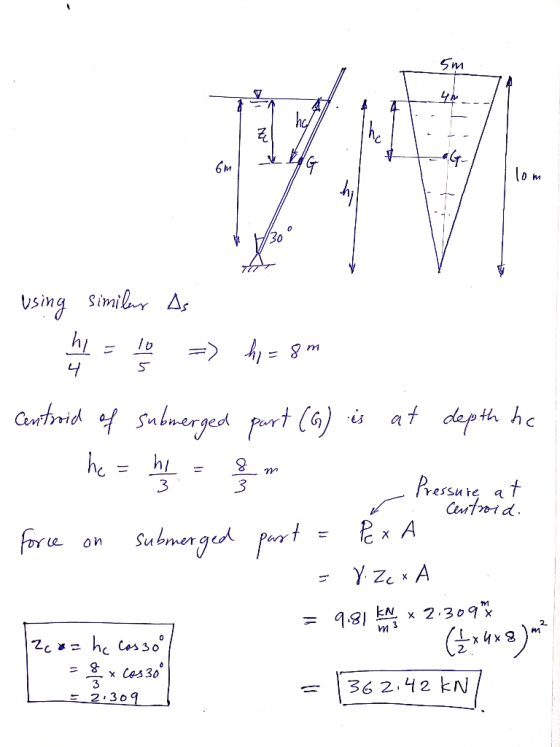

Figure 1: Configuration of the manometer system Figure 2, a triangular panel (with base B As...
(b) A rectangular panel of width equal to 1 m is kept in place through the...
(b) A rectangular panel of width equal to 1 m is kept in place through the system shown in Figure 2. If is equal to 3 m, find (i) the force on the gate due to the water pressure (ii) the location where this force acts (iii) the tension in the cable to balance the force due to pressure. Note that the gate is hinged at [4 Marks] [2 Marks] the pivot, thus the tension in the cable can be...
3. In the manometer shown, which of the points A and B is at a higher...
3. In the manometer shown, which of the points A and B is at a higher pressure, and by how much (psi)? Ou(s0.92) 24㎞ Oil 092) 12 in Mercury (sg-13.6) 4. (a) A vertical triangular surface of height h and base b is submerged in a liquid such that its apex coincides with the liquid surface. Draw this scenario, and indicate the pressure distribution, resultant hydrostatic force F, centroid C, center of pressure P, and distances hc, and hp. (b)...
Gate AB in Figure A2 is a homogeneous mass of 180 kg, 1.2 m wide into...
Gate AB in Figure A2 is a homogeneous mass of 180 kg, 1.2 m wide into the paper, hinged at A, and resting on a smooth bottom at B. All fluids are at 200 C. a) If the moment about the centre of gravity of a submerged plate at an angle e is defined as FYCP = Then show that this moment is given by [5marks] [3 marks b) Draw a diagram with all forces acting on the gate AB...
An enclosed tank has a curved glass window with the radius of r= 2 m, that...
An enclosed tank has a curved glass window with the radius of r= 2 m, that is hinged at point A as shown in the figure. At the bottom (point B) there is a smooth block that maintains a horizontal reaction force, restraining the window from opening. The tank has a width of b 2 m into the paper) and the height of water in it is: h-5 m. Pressure of the trapped air in the tank is 50 kPa...
QUESTION TWO (15 marks) A. A small chemical-industry tank fitted with a manometer as shown contains...
QUESTION TWO (15 marks) A. A small chemical-industry tank fitted with a manometer as shown contains a dense fluid with specific gravity S 3.0 and 20 cm deep. Workers should have added water to a depth of 15 cm above the dense fluid. What height Ah do you expect to find when you inspect the tank? (7 marks) 15 cm Water Ah? 20 cm S 3.0 B. A sea-water aquarium is planned to have a circular window with diameter D-80...
Y = 3 m (pa-pb) = 46 KN/m^2 Q.2. Figure:2 shows a U tube differential manometer...
Y = 3 m
(pa-pb) = 46 KN/m^2
Q.2. Figure:2 shows a U tube differential manometer connecting two pressure pipes at A and B. The pipe A and B contains water and manometer fluid is mercury. If the pressure difference between two pipe (p.-p.) is (X) kN/m’. Calculate the difference in level (h). (3 Marks) Water water 0.3 m у h Mercury Sp. gravity 13.6
QUESTION 3 Figure below indicated that a plug with cone shape used to plugged a hole...
QUESTION 3 Figure below indicated that a plug with cone shape used to plugged a hole of 45 cm radius at one side of a tank that containing X fluid (SG-0.8). The cone is 1.5 m height and I.I m bottom diameter. Depth of cone center point to the surface liquid is 10m. a) Draw the distribution of pressure onto the plug b) Determine the force acts onto the plug Cone 10 m QUESTION 4 Figure below shows a water...
1. The 100 kg weight on hydraulic lift (area = 0.6 m²) shown in figure. At...
1. The 100 kg weight on hydraulic lift (area = 0.6 m²) shown in figure. At points A, B C and D calculate the pressure. (Ywater=9810 N/m?) Hinge 2. a) Determine the resultant force acting on the inclined circular gate. b) Find the location of center of pressure. c) Calculate the minimum weight of the block that can open the gate. (Assume that gate is weightless) (a=80 cm, water 9810 N/m) 3. The length of submerged gate AB is 5...
The rectangle gate AB in Figure 1 is 1.5 m wide, is hinged at point B,...
The rectangle gate AB in Figure 1 is 1.5 m wide, is hinged at point B, and rest against a smooth wall at point A. Compute: (a) the pressure due to seawater at point A, (3 Marks) (b) the force on the gate due to seawater pressure, (5 Marks) C) the horizontal force P exerted by the wall at point A, and (7 Marks) (d) the reaction at the hinge B (5 Marks) Wall Seawater: 10,000 N/m 4.5 m А...
x value =1 yvalue =1 z value =2 A cylinder with a radius of R =...
x
value =1
yvalue =1
z value =2
A cylinder with a radius of R = 0.5 m and length L = 2/5 is a
part of
engine oil SAE 30 tank at the left and to support a water tank
at right as
shown. The height of SAE 30 is h = 1/2 m. The water tank has
an inclined
gate ((LAB = 6 1cm. B = 52°). which is hinged at point A. If
both tank has
2/5...
(b) A rectangular panel of width equal to 1 m is kept in place through the system shown in Figure 2. If is equal to 3 m, find (i) the force on the gate due to the water pressure (ii) the location where this force acts (iii) the tension in the cable to balance the force due to pressure. Note that the gate is hinged at [4 Marks] [2 Marks] the pivot, thus the tension in the cable can be...
3. In the manometer shown, which of the points A and B is at a higher pressure, and by how much (psi)? Ou(s0.92) 24㎞ Oil 092) 12 in Mercury (sg-13.6) 4. (a) A vertical triangular surface of height h and base b is submerged in a liquid such that its apex coincides with the liquid surface. Draw this scenario, and indicate the pressure distribution, resultant hydrostatic force F, centroid C, center of pressure P, and distances hc, and hp. (b)...
Gate AB in Figure A2 is a homogeneous mass of 180 kg, 1.2 m wide into the paper, hinged at A, and resting on a smooth bottom at B. All fluids are at 200 C. a) If the moment about the centre of gravity of a submerged plate at an angle e is defined as FYCP = Then show that this moment is given by [5marks] [3 marks b) Draw a diagram with all forces acting on the gate AB...
An enclosed tank has a curved glass window with the radius of r= 2 m, that is hinged at point A as shown in the figure. At the bottom (point B) there is a smooth block that maintains a horizontal reaction force, restraining the window from opening. The tank has a width of b 2 m into the paper) and the height of water in it is: h-5 m. Pressure of the trapped air in the tank is 50 kPa...
QUESTION TWO (15 marks) A. A small chemical-industry tank fitted with a manometer as shown contains a dense fluid with specific gravity S 3.0 and 20 cm deep. Workers should have added water to a depth of 15 cm above the dense fluid. What height Ah do you expect to find when you inspect the tank? (7 marks) 15 cm Water Ah? 20 cm S 3.0 B. A sea-water aquarium is planned to have a circular window with diameter D-80...
Y = 3 m
(pa-pb) = 46 KN/m^2
Q.2. Figure:2 shows a U tube differential manometer connecting two pressure pipes at A and B. The pipe A and B contains water and manometer fluid is mercury. If the pressure difference between two pipe (p.-p.) is (X) kN/m’. Calculate the difference in level (h). (3 Marks) Water water 0.3 m у h Mercury Sp. gravity 13.6
QUESTION 3 Figure below indicated that a plug with cone shape used to plugged a hole of 45 cm radius at one side of a tank that containing X fluid (SG-0.8). The cone is 1.5 m height and I.I m bottom diameter. Depth of cone center point to the surface liquid is 10m. a) Draw the distribution of pressure onto the plug b) Determine the force acts onto the plug Cone 10 m QUESTION 4 Figure below shows a water...
1. The 100 kg weight on hydraulic lift (area = 0.6 m²) shown in figure. At points A, B C and D calculate the pressure. (Ywater=9810 N/m?) Hinge 2. a) Determine the resultant force acting on the inclined circular gate. b) Find the location of center of pressure. c) Calculate the minimum weight of the block that can open the gate. (Assume that gate is weightless) (a=80 cm, water 9810 N/m) 3. The length of submerged gate AB is 5...
The rectangle gate AB in Figure 1 is 1.5 m wide, is hinged at point B, and rest against a smooth wall at point A. Compute: (a) the pressure due to seawater at point A, (3 Marks) (b) the force on the gate due to seawater pressure, (5 Marks) C) the horizontal force P exerted by the wall at point A, and (7 Marks) (d) the reaction at the hinge B (5 Marks) Wall Seawater: 10,000 N/m 4.5 m А...
x
value =1
yvalue =1
z value =2
A cylinder with a radius of R = 0.5 m and length L = 2/5 is a
part of
engine oil SAE 30 tank at the left and to support a water tank
at right as
shown. The height of SAE 30 is h = 1/2 m. The water tank has
an inclined
gate ((LAB = 6 1cm. B = 52°). which is hinged at point A. If
both tank has
2/5...
