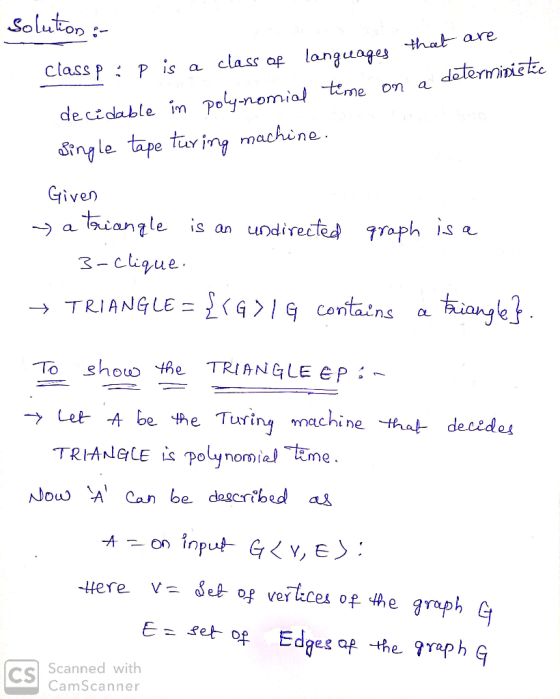

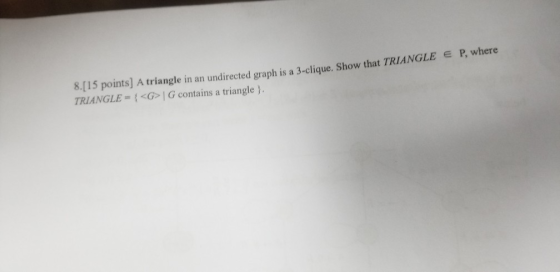

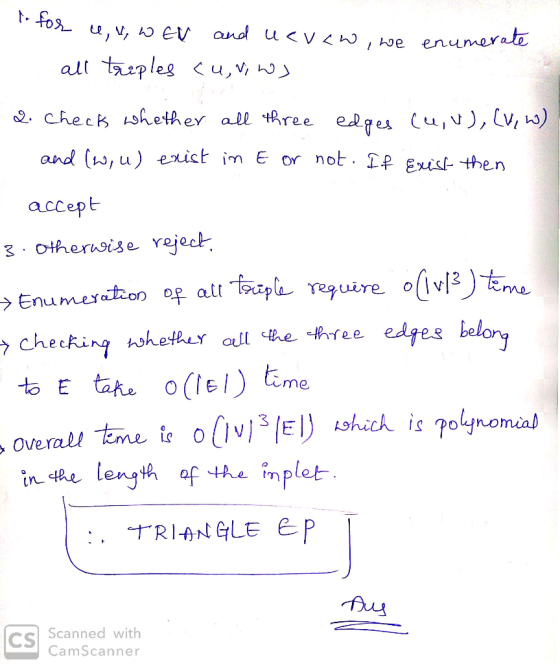

8.15 points]A triangle in an undirected graph is a 3-clique. Show that TRIANGLE E P, where...
4. Approximating Clique. The Maximum Clique problem is to compute a clique (i.e., a complete subgraph) of maximum size in a given undirected graph G. Let G = (V,E) be an undirected graph. For any integer k ≥ 1, define G(k) to be the undirected graph (V (k), E(k)), where V (k) is the set of all ordered k-tuples of vertices from V , and E(k) is defined so that (v1,v2,...,vk) is adjacent to (w1,w2,...,wk) if and only if, for...
Prove that the following problem is NP-complete: given an undirected graph G = (V, E) and an integer k, return a clique of size k as well as an independent set of size k, provided both exist.
An orientation of an undirected graph G = (V, E) is an assignment of a direction to each edge e ∈ E. An acyclic orientation is the assignment of a direction to every edge such that the resulting directed graph contains no cycles. Either prove that there exist undirected graphs with no acyclic orientation, or provide an efficient O(V +E) algorithm for producing an acyclic orientation for an undirected graph G and explain why it produces a valid acyclic orientation.
Please show work clearly. Thanks
3. (10 points) Let G be an undirected graph with nodes vi,..Vn. The adja.- cency matriz representation for G is the nx n matrix M given by: Mij-1 if there is an edge from v, to ty. and M,',-0 otherwise. A triangle is a set fvi, vjof 3 distinct vertices so that there is an edge from v, to vj, another from v to k and a third from vk to v. Give and analyze...
Look up the definition of a biconnected undirected graph on
Wikipedia. Give a one sentence definition based on induced
sub-graphs. Start your definition with “An undirected graph G = (V,
E) is biconnected, if . . . ” (b) For a directed graph G = (V, E),
its underlying undirected graph is obtained by replacing every
directed edge (u, v) with an undirected one {u, v}. (If (u, v) and
(v, u) are both in E, then the underlying undirected...
3. (8 points-7+1) Figure 4 shows an undirected graph G. Assume that the adjacency list lists the edges in alphabetical order. Figure 3: Graph for P3 (a) Apply depth first search (DFS) to graph G, and show the discovery and finish times of each vertex. In the main-loop of DFS, check the vertices in alphabetical the form dsc/fin, where dsc is the discovery time and fin is the finish time. (b) Draw the DFS tree obtained.
3. (8 points-7+1) Figure...
1) Consider the clique problem: given a graph G (V, E) and a positive integer k, determine whether the graph contains a clique of size k, i.e., a set of k vertices S of V such that each pair of vertices of S are neighbours to each other. Design an exhaustive-search algorithm for this problem. Compute also the time complexity of your algorithm.
Question 1: Given an undirected connected graph so that every edge belongs to at least one simple cycle (a cycle is simple if be vertex appears more than once). Show that we can give a direction to every edge so that the graph will be strongly connected. Question 2: Given a graph G(V, E) a set I is an independent set if for every uv el, u #v, uv & E. A Matching is a collection of edges {ei} so...
3. Let G be an undirected graph in which the degree of every vertex is at least k. Show that there exist two vertices s and t with at least k edge-disjoint paths between them.
3. Let G be an undirected graph in which the degree of every vertex is at least k. Show that there exist two vertices s and t with at least k edge-disjoint paths between them.
Let G = (V, E) be a weighted undirected connected graph that contains a cycle. Let k ∈ E be the edge with maximum weight among all edges in the cycle. Prove that G has a minimum spanning tree NOT including k.
