Homework Answers
Given :n=4(the subgroup sample size)
Xbar of sample 1 =AVERAGE(C4:F4)=12.038
(Drag this cell formula down for rest of the samples)
Range of sample 1 =MAX(C4:F4)-MIN(C4:F4)=0.13
(Drag this cell formula down for rest of the samples)
X-double bar=AVERAGE(G4:G6)=12.00
Rbar=AVERAGE(H4:H6)=0.24
In X chart ,
UCLx=X-bar bar +A2*Rbar=H9+H11*H10=12.2
LCLx=X-bar bar -A2*Rbar=H9-H11*H10=11.8
In R chart,
UCLr=D4 *R-bar=2.282*0.24=0.55
LCLr=D3*R-bar=0*0.24=0
Based on X-bar chart ,all the sample means(Xbar values) are within the control limits.Hence,the process is in control.
Based on R chart ,all the sample ranges are within the control limits.Hence,the process is in control.
Therefore,the process is in control.

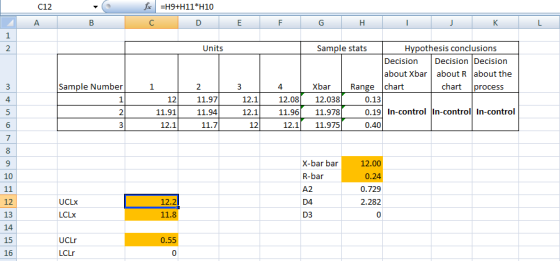

Calculations are as shown below:
Add Answer to:

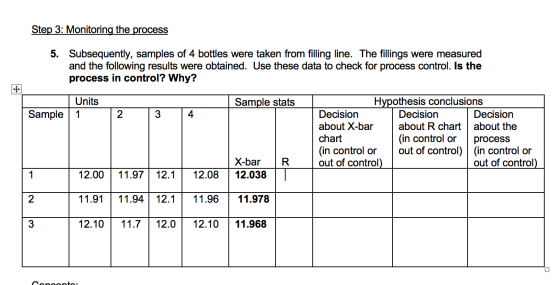

Step 3: Monitoring the process 5. Subsequently, samples of 4 bottles were taken from filling line....
