Suppose two hosts, A and B, are separated by 20,000 kilometers and are connected by a...
Suppose two hosts, A and B, are separated by 20,000 kilometers
and are connected by a direct link of R = 2 Gbps. Suppose the
propagation speed over the link is 2 · 10 8 m/s meters/sec.
a. Calculate the bandwidth-delay product, R dprop.
b. Consider sending a file of 2000,000 bits from Host A to Host B.
Suppose the file is sent continuously as one big message. What is
the maximum number of bits that will be in the link at any given
time?
c. What is the width (in meters) of a bit in the link?

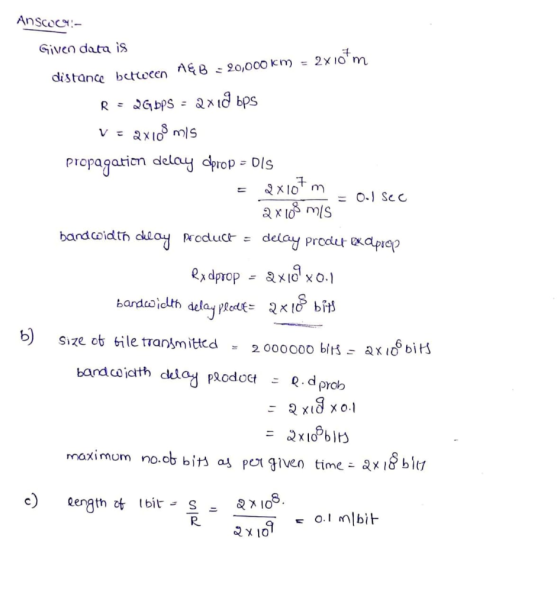

Homework Answers
Add Answer to:
Suppose two hosts, A and B, are separated by 20,000 kilometers
and are connected by a...
Suppose two hosts, Host A and B, are separated by 10,000 kilometers and are connected by...
Suppose two hosts, Host A and B, are separated by 10,000 kilometers and are connected by a direct link of R-1 Mbps. Suppose the propagation speed over the link is 2.5 10 meters/sec. The propagation delay of the link is dprop (a) Calculate the bandwidth-delay product, R dpop (b) Consider sending a file of 400,000 bits from Host A to Host B. Suppose the file is sent continuously as one large message. What is the maximum number of bits that...
Consider two hosts, A and B, are separated by 2,000 kilometers and are directly connected by...
Consider two hosts, A and B, are separated by 2,000 kilometers and are directly connected by a link with transmission rate R=15Mbps. The propagation speed over the link is 2.0*108 meters/sec. What is the propagation delay of the link?
P6. This elementary problem begins to explore propagation delay and transmis- sion delay, two central concepts...
P6. This elementary problem begins to explore propagation delay and transmis- sion delay, two central concepts in data networking. Consider two hosts, A and B, connected by a single link of rate R bps. Suppose that the two hosts are separated by m meters, and suppose the propagation speed along the link is s meters/sec. Host A is to send a packet of size L bits to Host B a. Express the propagation delay, dprops in terms of m and...
Questions: 1. (15pt.) Suppose that a file of 10 bytes is transferred between two hosts, and packet size is 10 bytes. Assume packets are sent back-to-back with no overhead of encapsulation. Calcula...
Questions: 1. (15pt.) Suppose that a file of 10 bytes is transferred between two hosts, and packet size is 10 bytes. Assume packets are sent back-to-back with no overhead of encapsulation. Calculate the file transmission latency (from first bit sent to last bit received) for (a) Single store-and-forward 1-Gbps switch is in the path, each link introduces a propagation delay of lus, and either queucing or processing delay can be omitted (b) Same as (a) but with three switches; (e)...
1. What is end-system? List example of end-systems 2. Define network edge and network core 3....
1. What is end-system? List example of end-systems 2. Define network edge and network core 3. Explain Packet-switching 4. List five tasks that a computer network layer can perform Is it possible that one (or more) of these tasks could be performed by two (or more) layers? 5. This elementary problem begins to explore propagation delay and transmission delay, two central concepts in data networking. Consider two hosts, A and B, connected by a single link of rate R bps....
A and B which are separated by 920 Km are directly connected using some type of...
A and B which are separated by 920 Km are directly connected using some type of physical link. A is sending packets to B with a packet size of 8000 bits at a bit rate of 2 Mbps. If the first bit transmitted by A has just reached B when the last bit is being transmitted by A, calculate the velocity of propagation in the medium in two different ways: (i) Using the concept of delay-bandwidth product (ii) Using the...
Hosts A and B communicate through a store-and-forward switch. The links between the hosts and the...
Hosts A and B communicate through a store-and-forward switch. The links between the hosts and the switch have a transmission rate of R bits/sec. What is the total delay for sending a packet of L bits from host A to host B (i.e., from the time A starts transmitting to the time B has the packet).
Hosts A and B are each connected to a switch S via 1-Gbps links as below....
Hosts A and B are each connected to a switch S via 1-Gbps links as below. The propagation delay on each link is 20 μs. S is a store-and-forward device; it begins retransmitting a received packet 35μs after it has finished receiving it. Calculate the total time required to transmit 10,000 bits from A to B in the following two cases: When all the 10,000 bits are transmitted in a single packet? When the 10,000 bits are transmitted in two...
3. Suppose there is exactly one packet switch (or router) between a sending host and a...
3. Suppose there is exactly one packet switch (or router) between a sending host and a receiving host. The transmission rates between the sending host and the switch and between the switch and the receiving host are R1 = 1Mbps and R2 = 2Mbps, respectively. Assuming that the switch uses store-and-forward packet switching, what is the total end-to-end delay to send a packet of length 18000bits? Assume that the propagation speed is 2 * 108 meters/sec, the distance between source...
Bandwidth delay is 340,000bits The length between host A and B is 17,000km R = 4...
Bandwidth delay is 340,000bits The length between host A and B is 17,000km R = 4 Mbps the propogation speed over the link is 2*10^8 meters/sec The bandwidth delay product in the previous question tells you how many bits can be propogating on the transmission line at any one time. imagining that all the bits take up an equal amount of space on the line, determine the width of a bit by dividing the total line length by the number...
Suppose two hosts, Host A and B, are separated by 10,000 kilometers and are connected by a direct link of R-1 Mbps. Suppose the propagation speed over the link is 2.5 10 meters/sec. The propagation delay of the link is dprop (a) Calculate the bandwidth-delay product, R dpop (b) Consider sending a file of 400,000 bits from Host A to Host B. Suppose the file is sent continuously as one large message. What is the maximum number of bits that...
P6. This elementary problem begins to explore propagation delay and transmis- sion delay, two central concepts in data networking. Consider two hosts, A and B, connected by a single link of rate R bps. Suppose that the two hosts are separated by m meters, and suppose the propagation speed along the link is s meters/sec. Host A is to send a packet of size L bits to Host B a. Express the propagation delay, dprops in terms of m and...
Questions: 1. (15pt.) Suppose that a file of 10 bytes is transferred between two hosts, and packet size is 10 bytes. Assume packets are sent back-to-back with no overhead of encapsulation. Calculate the file transmission latency (from first bit sent to last bit received) for (a) Single store-and-forward 1-Gbps switch is in the path, each link introduces a propagation delay of lus, and either queucing or processing delay can be omitted (b) Same as (a) but with three switches; (e)...
1. What is end-system? List example of end-systems 2. Define network edge and network core 3. Explain Packet-switching 4. List five tasks that a computer network layer can perform Is it possible that one (or more) of these tasks could be performed by two (or more) layers? 5. This elementary problem begins to explore propagation delay and transmission delay, two central concepts in data networking. Consider two hosts, A and B, connected by a single link of rate R bps....
Hosts A and B communicate through a store-and-forward switch. The links between the hosts and the switch have a transmission rate of R bits/sec. What is the total delay for sending a packet of L bits from host A to host B (i.e., from the time A starts transmitting to the time B has the packet).
