Problem 5.6 J5: A 2x14 rafter cantilevers over a 4x12 support beam. If both members are...

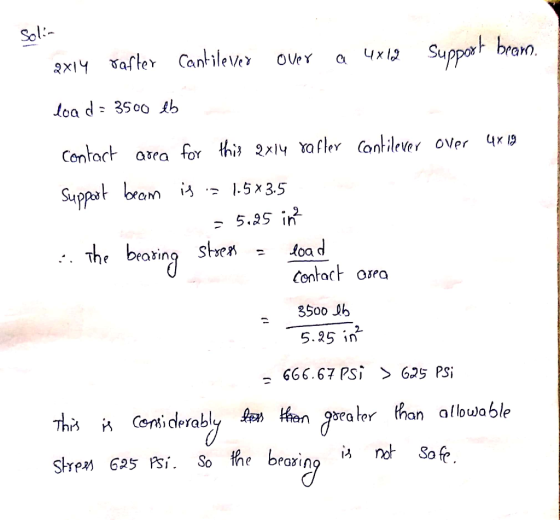

Problem 5.6 J5: A 2x14 rafter cantilevers over a 4x12 support beam. If both members are of Hem Fir, No. 2 grade, is the situation adequate for bearing? The rafter load on the support beam is 3500#.
Homework Answers
