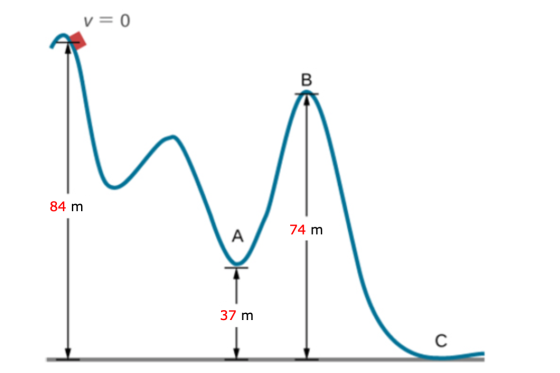

In an amusement park, a car rolls on a track as shown below. Find the speed (in m/s) of the car at A, B, and C. Note that the work done by the rolling friction is zero since the point at which the rolling friction acts on the tires is momentarily at rest and therefore has a zero displacement.
Va = ? m/s
Vb = ? m/s
Vc = ? m/s
Thanks!

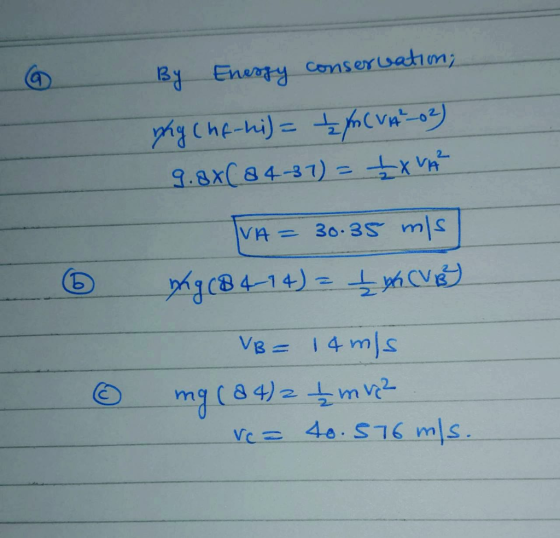

Homework Answers
Add Answer to:
In an amusement park, a car rolls on a track as shown below.
Find the speed...
In an amusement park, a car rolls on a track as shown below. Find the speed...
In an amusement park, a car rolls on a track as shown below. Find the speed in /s) of the rolling friction acts on the tires momentarily trest and therefore has a rere displacement AB, and C. Note that the work done by the rolling friction is rare since the point at which the
A car in an amusement park ride rolls without friction around a track (Figure 1). The...
A car in an amusement park ride rolls without friction around a
track (Figure 1). The car starts from rest at point A at a height h
above the bottom of the loop. Treat the car as a particle.
Figure 1:
PART A:
What is the minimum value of h (in terms of R) such that the car
moves around the loop without falling off at the top (point B)?
PART B:
If the car starts at height h= 4.30...
At an amusement park, a car of mass m rolls without friction around a track as...
At an amusement park, a car of mass m rolls without friction around a track as shown. The car starts from rest at point A, a height h = 3R above the bottom of the loop (R is the radius of the loop). Treat the car as a point-like particle. (a) Draw the free body diagram for the car and find the car’s kinetic energy and normal force acting on the car at the top of the loop (point B)....
90 m (15 points) A roller coaster ride at an amusement park lifts a car of...
90 m (15 points) A roller coaster ride at an amusement park lifts a car of mass 700 kg to point A at a height of 90 m above the lowest point on the track, as shown above. The car starts from rest at point A. rolls with negligible friction down the incline and follows the track around a loop of radius 20 m. Point B. the highest point on the loop, is at a height of 50 m above...
A car in an amusement park roller coaster ride rolls without friction at the top of...
A car in an amusement park roller coaster ride rolls without friction at the top of a hill. The car begins at a height h from the top of a hill. A the bottom, the car then goes through a vertical loop where the car is upside down at the loop\'s top. If the radius of the loop is 20.0m, what is the minimum height h such that the car moves around the loop without falling off the track at...
In an amusement park, a 250 kg roller coaster reaches point A with velocity of 8...
In an amusement park, a 250 kg roller coaster reaches point A
with velocity of 8 m/sec. What is its velocity at point B if the
work done by friction of the track is 3000 joules during this
displacement from A to B?
? 8.0 m/s 8.0 m A 5.0 m B
? 8.0 m/s 8.0 m A 5.0 m B
A mine car (mass=420 kg) rolls at a speed of 0.50 m/s on a horizontal track,...
A mine car (mass=420 kg) rolls at a speed of 0.50 m/s on a
horizontal track, as the drawing shows. A 250-kg chunk of coal has
a speed of 0.85 m/s when it leaves the chute. Determine the speed
of the car–coal system after the coal has come to rest in the
car.
250 kg 25.0° 0.85 m/s 420 kg 0.50 m/s
Hint: Use the Law of Conservation of Energy F) A 440 kg mine rolls at a speed of 0.5 m/'s on a horizontal track as shown. A 150 kg chunk of coal with a speed of 0.8 m/s leaves a chute and land...
Hint: Use the Law of Conservation of Energy F) A 440 kg mine rolls at a speed of 0.5 m/'s on a horizontal track as shown. A 150 kg chunk of coal with a speed of 0.8 m/s leaves a chute and lands inside the mine car. 150 kg 25.0° 0.80 m/s 440 kg0.50 m/s a) Find the velocity of the coal-car system after the coal comes to rest in the car, (7 pts) b) Prove that the collision is...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the ma...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the mass of the car is 1850kg). One person applies a force to the car, while the other applies a force of 395N. Both forces act in the same of 560N also acts on the car, but in a direction opposite force arises because of friction and the extent to which the pavement opposes Find the acceleration of the car. direction. A third force to that in...
Question 1 1 pts What is the kinetic energy of a man who weighs 980N who...
Question 1 1 pts What is the kinetic energy of a man who weighs 980N who is riding in a car traveling 40 km per hour? Express your answer in Joules, but don't type the unit in the answer box. Round to the nearest whole number. (Careful with the units) 1 pts Astudent slides her 80.0-kg desk across the level floor of her dormitory room a distance 4.00 m at constant speed. If the coefficient of kinetic friction between the...
In an amusement park, a car rolls on a track as shown below. Find the speed in /s) of the rolling friction acts on the tires momentarily trest and therefore has a rere displacement AB, and C. Note that the work done by the rolling friction is rare since the point at which the
A car in an amusement park ride rolls without friction around a
track (Figure 1). The car starts from rest at point A at a height h
above the bottom of the loop. Treat the car as a particle.
Figure 1:
PART A:
What is the minimum value of h (in terms of R) such that the car
moves around the loop without falling off at the top (point B)?
PART B:
If the car starts at height h= 4.30...
90 m (15 points) A roller coaster ride at an amusement park lifts a car of mass 700 kg to point A at a height of 90 m above the lowest point on the track, as shown above. The car starts from rest at point A. rolls with negligible friction down the incline and follows the track around a loop of radius 20 m. Point B. the highest point on the loop, is at a height of 50 m above...
In an amusement park, a 250 kg roller coaster reaches point A
with velocity of 8 m/sec. What is its velocity at point B if the
work done by friction of the track is 3000 joules during this
displacement from A to B?
? 8.0 m/s 8.0 m A 5.0 m B
? 8.0 m/s 8.0 m A 5.0 m B
A mine car (mass=420 kg) rolls at a speed of 0.50 m/s on a
horizontal track, as the drawing shows. A 250-kg chunk of coal has
a speed of 0.85 m/s when it leaves the chute. Determine the speed
of the car–coal system after the coal has come to rest in the
car.
250 kg 25.0° 0.85 m/s 420 kg 0.50 m/s
Hint: Use the Law of Conservation of Energy F) A 440 kg mine rolls at a speed of 0.5 m/'s on a horizontal track as shown. A 150 kg chunk of coal with a speed of 0.8 m/s leaves a chute and lands inside the mine car. 150 kg 25.0° 0.80 m/s 440 kg0.50 m/s a) Find the velocity of the coal-car system after the coal comes to rest in the car, (7 pts) b) Prove that the collision is...
Sample Class Problems-Force and Acceleration Prob#l: Two people are pushing a stalled car (the mass of the car is 1850kg). One person applies a force to the car, while the other applies a force of 395N. Both forces act in the same of 560N also acts on the car, but in a direction opposite force arises because of friction and the extent to which the pavement opposes Find the acceleration of the car. direction. A third force to that in...
Question 1 1 pts What is the kinetic energy of a man who weighs 980N who is riding in a car traveling 40 km per hour? Express your answer in Joules, but don't type the unit in the answer box. Round to the nearest whole number. (Careful with the units) 1 pts Astudent slides her 80.0-kg desk across the level floor of her dormitory room a distance 4.00 m at constant speed. If the coefficient of kinetic friction between the...
