19. A rope is wrapped around a pulley that can be modelled as a solid disk...

Question

Question

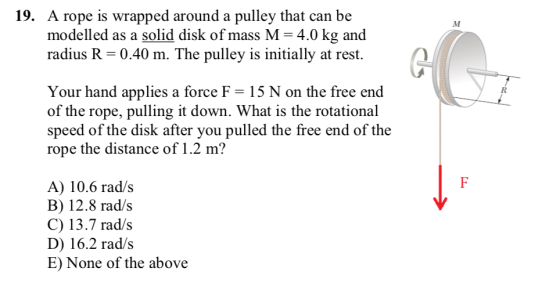

19. A rope is wrapped around a pulley that can be modelled as a solid disk of mass M = 4.0 kg and radius R 0.40 m. The pulley

science physics

Answer 1

Answer #1

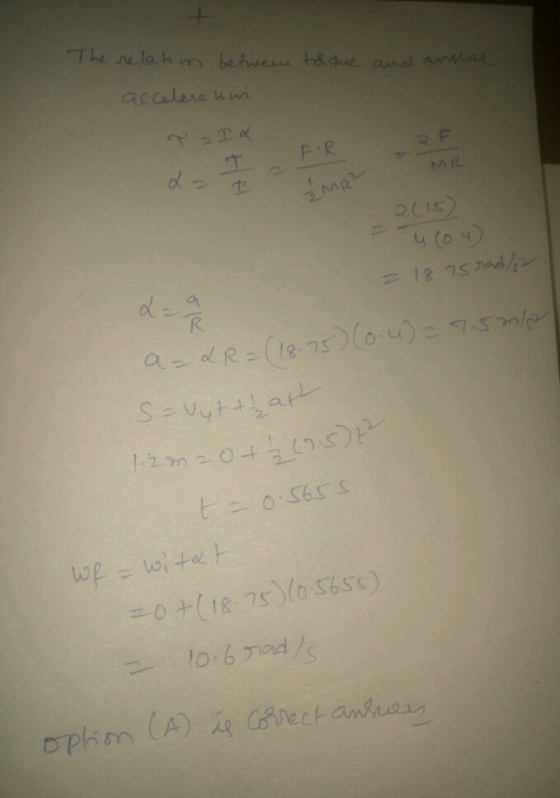

7he nela k betwem t&due and anas accalera 4 PR MR 2015) 4(0) 2 18:75ad R atR(1875lo)27A Szvta 12m204 S 0565 -0 +(18-75)0S65)

Answer 2

Similar Homework Help Questions

A rope is wrapped around the rim of a large uniform solid disk of mass 305...

A rope is wrapped around the rim of a large uniform solid disk of mass 305 kg and radius 2.10 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 2.65 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 225...

A rope is wrapped around the rim of a large uniform solid disk of mass 225 kg and radius 2.50 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 1.65 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 295...

A rope is wrapped around the rim of a large uniform solid disk of mass 295 kg and radius 2.40 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest what is its angular speed in rev/s at the end of 1.95 s?

A rope is wrapped around the rim of a large uniform solid disk of mass 315...

A rope is wrapped around the rim of a large uniform solid disk of mass 315 kg and radius 1.60 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest what is its angular speed in rev/s at the end of 2.95 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 315...

A rope is wrapped around the rim of a large uniform solid disk of mass 315 kg and radius 2.40 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest what is its angular speed in rev/s at the end of 1.75 s?
A rope is wrapped around the rim of a large uniform solid disk of mass 155...

A rope is wrapped around the rim of a large uniform solid disk of mass 155 kg and radius 2.80 m. The horizontal disk is made to rotate by pulling on the rope with a constant force of 195 N. If the disk starts from rest, what is its angular speed in rev/s at the end of 2.75 s? ___________rev/s

2-a rope is wrapped around a solid disk of radius R = 2.5 m and a...

2-a rope is wrapped around a solid disk of radius R = 2.5 m and a mass of 1.5 kg . The disk rotates about its own axis. A bucket water has been tied to the other end of the rope as show in the figure. by the rotating disk. The mass of the bucket is 2.0 kg. SHOW FORMULAS AND COMPLETE SOLUTION UNDER EACH PART OF THE PROBLEM. a) calculate the moment of inertia/ Rotational inertia of the disk?...
The rope wrapped around the outer diameter of the disk is pulled at a constant speed...

The rope wrapped around the outer diameter of the disk is pulled at a constant speed of 1.75 m/s. If the outer radius is 2.26 cm and the inner radius is 0.28 cm, how fast does the hanging mass rise?
A light, flexible rope is wrapped several times around a hollow cylinder with a weight of...

A light, flexible rope is wrapped several times around a hollow cylinder with a weight of 40.0 Nand a radius of 0.25 m, that rotates without friction about a fixed horizontal axis. The cylinder is attached to the axle by spokes of a negligible moment of inertia. The cylinder is initially at rest. The free end of the rope is pulled with a constant force P for a distance of 5.00 m, at which point the end of the rope...

A rope of negligible mass is wrapped around a 225-kg solid cylinder of radius 0.400 m....

A rope of negligible mass is wrapped around a 225-kg solid cylinder of radius 0.400 m. The cylinder is suspended several meters off the ground with its axis oriented horizontally, and turns on that axis without friction. (a) If a 75.0-kg man takes hold of the free end of the rope and falls under the force of gravity, what is his acceleration? m/s2 (b) What is the angular acceleration of the cylinder? rad/s2
