Homework Answers

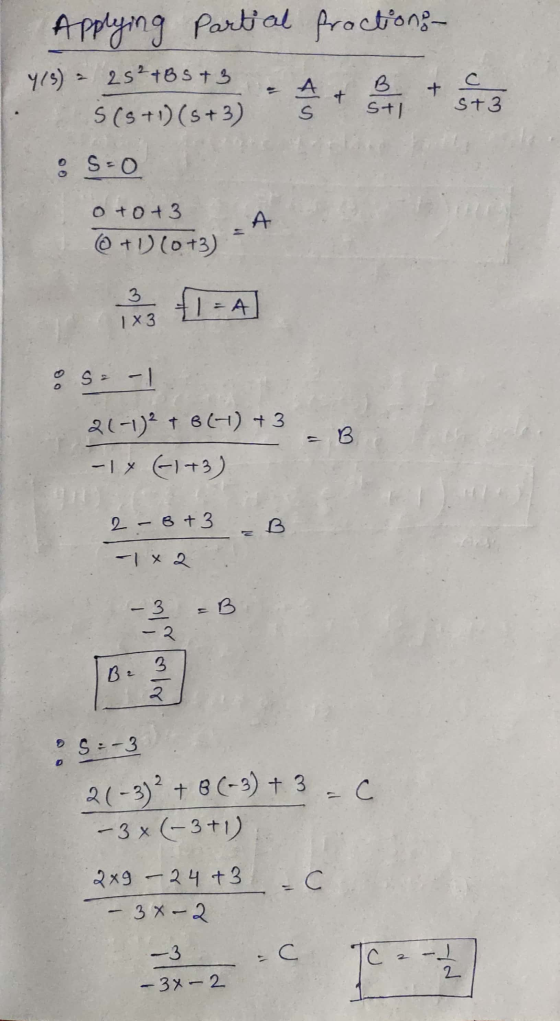

![fractions Applying partial 4/5) = 252 +85 +3 : S=0 0 +0+3 @ + 1) (0+3) fl-A] & S2 - 1 21-1) + B4) +3 - 1 + (1+3) = B - B 2 -](http://img.homeworklib.com/questions/217f6e60-9202-11ea-a0c1-81a4d73c6301.png?x-oss-process=image/resize,w_560)
Feel
free to ask if you get any doubt.
Do rate the answer.
Add Answer to:

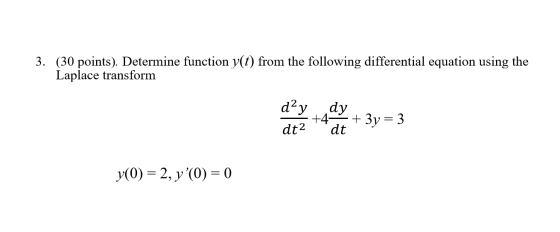

3. (30 points). Determine function y(t) from the following differential equation using the Laplace transform d?y...
