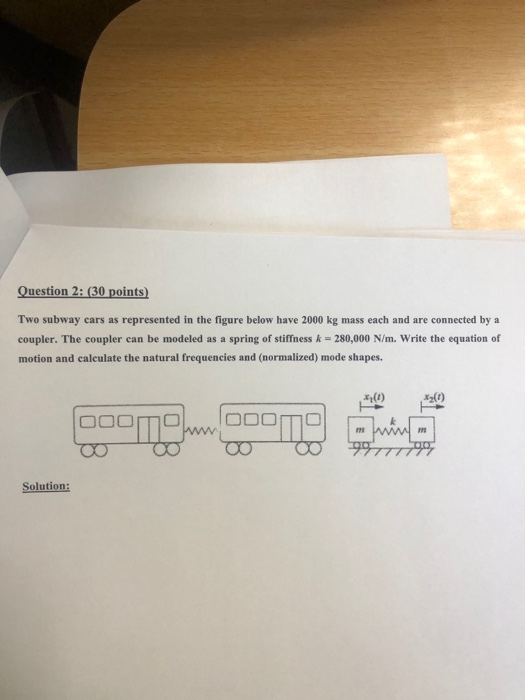

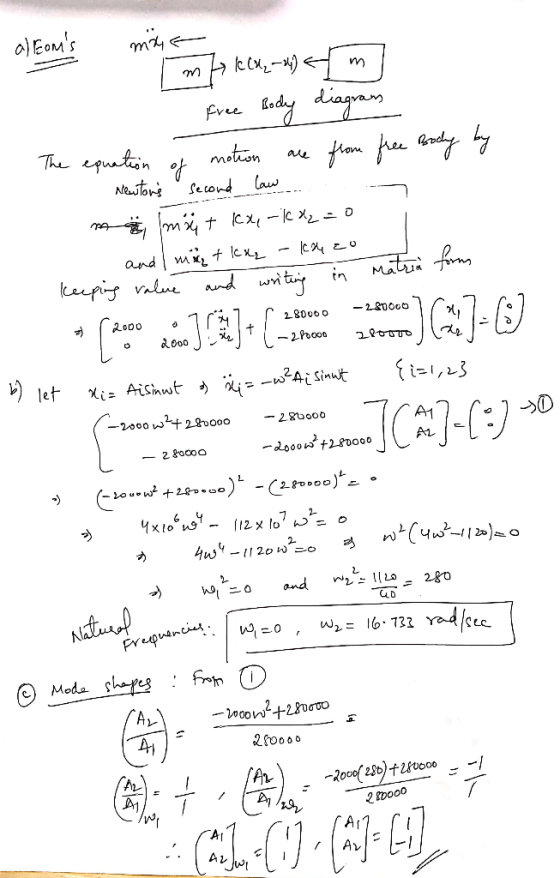

Question 2: (30 points) Two subway cars as represented in the figure below have 2000 kg...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0 kg me = 1.5 kg 914 Given: Four degree of freedom spring-mass system with given masses an stiffnesses. Find: Natural frequencies and mode shapes. Approach: Find the eigenvalues and eigenvectors of the dynamical matrix. 1. Determine [m] and [k] matrices of the vibrating system with all details 2. Determine [DI matrix. 3. Determine Natural frequencies and mode shapes analytically 3....
1. A two story building is represented in the figure below by a lumped mass systen...
1. A two story building is represented in the figure below by a lumped mass systen in which m1 = m2 and k1 = k2. The ground is given a harmonic motion y Ysin at. Draw the appropriate free body diagrams. (5 points) a. b. Write the equations of motion in matrix form. (5 points) c. Solve for the natural frequencies and mode shapes. (10 points) d. Solve for the displacement amplitude response of xi and x2. (10 points)
EXERCISE 2 The following system is composed by two bodies of mass m, and m2 and five identical strings of stiffness k....
EXERCISE 2 The following system is composed by two bodies of mass m, and m2 and five identical strings of stiffness k. Friction and any other dissipative terms are negligible. k Draw the free body diagrams for the two bodies. a) | y1 |F b) Write the equation of motion in matrix form, expressing the content of each matrix/vector m1 c) Calculate the natural frequencies of the system, knowing that m1 1 kg, m2 2 kg and k = 1000...
Q3. For the system in Figure 3 where 0 and angles, and are the rotary inertias of the two disks with are the rotati...
Q3. For the system in Figure 3 where 0 and angles, and are the rotary inertias of the two disks with are the rotational radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of 0, and 0 (2) Derive the equations of motion using Lagrangian equation method (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode Fosin shapes if m...
03. For the system in Figure 3 where and are the rotational angles, /, and 2 are the rotary inertias of the two disks w...
03. For the system in Figure 3 where and are the rotational angles, /, and 2 are the rotary inertias of the two disks with radius r and 2r, respectively, (1) Find its total kinetic energy, total potential energy and e, 2r Lagrangian in terms of θ' and θ, (2) Derive the equations of motion using Lagrangian equation method (3) Put the equations of motion in matrix form, and Im In 4) Calculate the natural frequencies and the associated mode...
Problem 4 (20%) Figure 5 shows a uniform elastic bar fixed at one end and attached to a mass M at the other end. The cr...
Problem 4 (20%) Figure 5 shows a uniform elastic bar fixed at one end and attached to a mass M at the other end. The cross sectional area for the bar is A, mass density per unit length p, modulus of elasticity E and second moment of area I. For the longitudinal vibration: S Set the necessary coordinate system, governing equation of motion and boundary conditions a. b. Derive the general solution. Explain how you can obtain the natural frequencies...
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total pot...
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of, and (2) Derive the equations of motion using Lagrangian equation method, (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode shapes if m-30 g, 4-8 x...
For a mass-spring system shown in the figure below. Write the dynamic equations in matrix form...
For a mass-spring system shown in the figure below. Write the dynamic equations in matrix form and find the natural frequencies for this system, eigen values, eigen vectors and mode shapes assuming: m1=1 kg, m2=4 kg, k1=k3=10 N/m, and k2=2 N/m. / ر2 دی) x1(0) x2(0) K3 K1 W K2 mi W4 m2 (-?
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through...
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through a horizontal spring k. The cylinder is m1 rolling on the rough surface without slipping. (1) Find its total kinetic energy, total potential energy TN and Lagrangian, Figure 2 (2) Derive the equations of motion using Lagrangian equation method, and (3) Calculate its natural frequencies
1 Q2. Figure 2 shows a system in which mass...
MEMB343 MECHANICAL VIBRATIONS ASSIGNMENT l. For the system shown in Figure 1, where mi=5 kg, m,-10 kg, ki=1000 N/m, k2-500 N/m, k, 2000 N/m, fi-100sin(15t) N and f-0, use modal analysis to determine...
MEMB343 MECHANICAL VIBRATIONS ASSIGNMENT l. For the system shown in Figure 1, where mi=5 kg, m,-10 kg, ki=1000 N/m, k2-500 N/m, k, 2000 N/m, fi-100sin(15t) N and f-0, use modal analysis to determine the amplitudes of masses m, and m2. The equations of motion are given as sin(15t), wth natura frequencies 5 01[i, 0 10 500-500x, 500 2500jx, x,[100 ω,-14.14 rad's and a, = 18.71 rad/s, and mode shapes, Φ',, and Φ' k, Im Figure 1
MEMB343 MECHANICAL VIBRATIONS ASSIGNMENT...
Problem: Find the natural frequencies of the system shown in Figure. Take m 2 kg ma 2.5 kg ms 3.0 kg me = 1.5 kg 914 Given: Four degree of freedom spring-mass system with given masses an stiffnesses. Find: Natural frequencies and mode shapes. Approach: Find the eigenvalues and eigenvectors of the dynamical matrix. 1. Determine [m] and [k] matrices of the vibrating system with all details 2. Determine [DI matrix. 3. Determine Natural frequencies and mode shapes analytically 3....
1. A two story building is represented in the figure below by a lumped mass systen in which m1 = m2 and k1 = k2. The ground is given a harmonic motion y Ysin at. Draw the appropriate free body diagrams. (5 points) a. b. Write the equations of motion in matrix form. (5 points) c. Solve for the natural frequencies and mode shapes. (10 points) d. Solve for the displacement amplitude response of xi and x2. (10 points)
EXERCISE 2 The following system is composed by two bodies of mass m, and m2 and five identical strings of stiffness k. Friction and any other dissipative terms are negligible. k Draw the free body diagrams for the two bodies. a) | y1 |F b) Write the equation of motion in matrix form, expressing the content of each matrix/vector m1 c) Calculate the natural frequencies of the system, knowing that m1 1 kg, m2 2 kg and k = 1000...
Q3. For the system in Figure 3 where 0 and angles, and are the rotary inertias of the two disks with are the rotational radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of 0, and 0 (2) Derive the equations of motion using Lagrangian equation method (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode Fosin shapes if m...
03. For the system in Figure 3 where and are the rotational angles, /, and 2 are the rotary inertias of the two disks with radius r and 2r, respectively, (1) Find its total kinetic energy, total potential energy and e, 2r Lagrangian in terms of θ' and θ, (2) Derive the equations of motion using Lagrangian equation method (3) Put the equations of motion in matrix form, and Im In 4) Calculate the natural frequencies and the associated mode...
Problem 4 (20%) Figure 5 shows a uniform elastic bar fixed at one end and attached to a mass M at the other end. The cross sectional area for the bar is A, mass density per unit length p, modulus of elasticity E and second moment of area I. For the longitudinal vibration: S Set the necessary coordinate system, governing equation of motion and boundary conditions a. b. Derive the general solution. Explain how you can obtain the natural frequencies...
Q3. For the system in Figure 3 where and θ2 are the rotational angles, and are the rotary inertias of the two disks with radius r and 2r, respectively, 2r (1) Find its total kinetic energy, total potential energy and Lagrangian in terms of, and (2) Derive the equations of motion using Lagrangian equation method, (3) Put the equations of motion in matrix form, and (4) Calculate the natural frequencies and the associated mode shapes if m-30 g, 4-8 x...
For a mass-spring system shown in the figure below. Write the dynamic equations in matrix form and find the natural frequencies for this system, eigen values, eigen vectors and mode shapes assuming: m1=1 kg, m2=4 kg, k1=k3=10 N/m, and k2=2 N/m. / ر2 دی) x1(0) x2(0) K3 K1 W K2 mi W4 m2 (-?
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through a horizontal spring k. The cylinder is m1 rolling on the rough surface without slipping. (1) Find its total kinetic energy, total potential energy TN and Lagrangian, Figure 2 (2) Derive the equations of motion using Lagrangian equation method, and (3) Calculate its natural frequencies
1 Q2. Figure 2 shows a system in which mass...
MEMB343 MECHANICAL VIBRATIONS ASSIGNMENT l. For the system shown in Figure 1, where mi=5 kg, m,-10 kg, ki=1000 N/m, k2-500 N/m, k, 2000 N/m, fi-100sin(15t) N and f-0, use modal analysis to determine the amplitudes of masses m, and m2. The equations of motion are given as sin(15t), wth natura frequencies 5 01[i, 0 10 500-500x, 500 2500jx, x,[100 ω,-14.14 rad's and a, = 18.71 rad/s, and mode shapes, Φ',, and Φ' k, Im Figure 1
MEMB343 MECHANICAL VIBRATIONS ASSIGNMENT...
