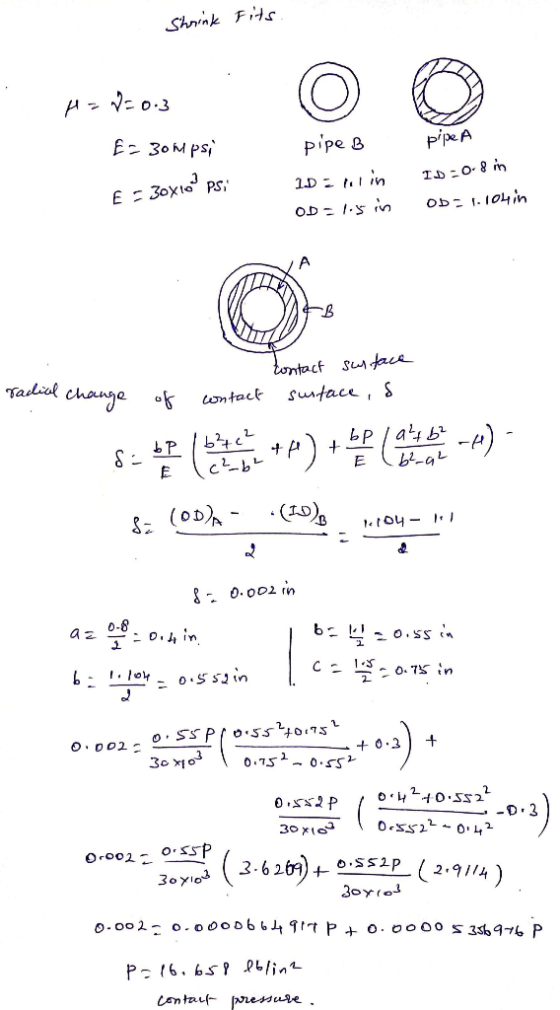

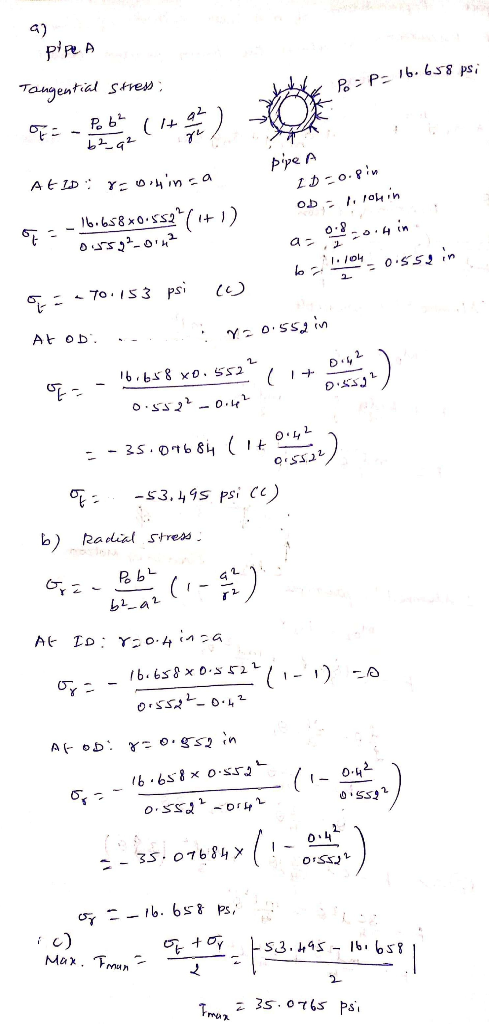

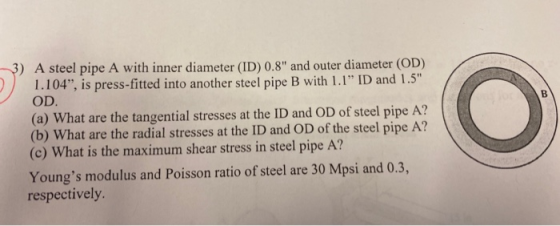

3) A steel pipe A with inner diameter (ID) 0.8" and outer diameter (OD) 1.104", is...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P = 150 kN. Given the yield stress, Oy=250 MPa and factor of safety, F.S. = 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of the...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
QUESTION 5 The copper pipe has an outer diameter of 40mm and an inner diameter of...
QUESTION 5 The copper pipe has an outer diameter of 40mm and an inner diameter of 37mm. If it is attached to the wall at point A and three torques are applied as shown, determine the minimum shear stress developed in the pipe. Answers should be given in units of MPa. 30 N m 20 N m 80 N m For the 30mm diameter shaft shown below made of steel (G-200GPa), what is the magnitude of the total angle of...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N-m from the engine...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine...
The copper pipe has an outer diameter of 40 mm and an Inner diameter of 31 mm.
The copper pipe has an outer diameter of 40 mm and an Inner diameter of 31 mm. It is tightly secured to the wall at A and three orques are applied to it as shown in the figure below (Figure 1) Part A Determine the absolute maximum shear stress developed in the pipe.
Mechanics and Materials Help Question 1. (a) A steel tube having inner and outer dimeters of...
Mechanics and Materials Help
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is tuming at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524...
4) A brass bushing with an inner diameter of 40mm and an outer diameter of 60mm is press fit into a steel tube of outer diameter 100mm. Determine the maximum stress in both materials. Assume the f...
4) A brass bushing with an inner diameter of 40mm and an outer diameter of 60mm is press fit into a steel tube of outer diameter 100mm. Determine the maximum stress in both materials. Assume the following: Eb 110 GPo, E, 200 GPo, v, 0.32, v 0.28, 6 0.07mm. (12 points)
4) A brass bushing with an inner diameter of 40mm and an outer diameter of 60mm is press fit into a steel tube of outer diameter 100mm. Determine the...
Both parts please Question 1. (a) A steel tube having inner and outer dimeters of 1.5...
Both parts please
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 N-m from the...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P = 150 kN. Given the yield stress, Oy=250 MPa and factor of safety, F.S. = 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of the...
The hollow steel construction auger in Figure 4 has an outer diameter d2 = 140 mm and thickness of t = 8 mm. The steel has a shear modulus of elasticity E = 200 GPa and v = 0.3. For an applied torque of 35 kN m, determine the following quantities: a) Shear stress at the mid-center of the thickness t of the shaft. [2] b) Shear stress on the outer surface. [1] c) Shear stress in the inner surface,...
QUESTION 5 The copper pipe has an outer diameter of 40mm and an inner diameter of 37mm. If it is attached to the wall at point A and three torques are applied as shown, determine the minimum shear stress developed in the pipe. Answers should be given in units of MPa. 30 N m 20 N m 80 N m For the 30mm diameter shaft shown below made of steel (G-200GPa), what is the magnitude of the total angle of...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N-m from the engine...
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524 N·m from the engine...
Mechanics and Materials Help
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in. and 2 in., respectively, is tuming at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T = 524...
4) A brass bushing with an inner diameter of 40mm and an outer diameter of 60mm is press fit into a steel tube of outer diameter 100mm. Determine the maximum stress in both materials. Assume the following: Eb 110 GPo, E, 200 GPo, v, 0.32, v 0.28, 6 0.07mm. (12 points)
4) A brass bushing with an inner diameter of 40mm and an outer diameter of 60mm is press fit into a steel tube of outer diameter 100mm. Determine the...
Both parts please
Question 1. (a) A steel tube having inner and outer dimeters of 1.5 in and 2 in., respectively, is turning at 45 rev/min. If the allowable shear stress (Tallow) of the tube material is 10 ksi, determine the horse power (hp) transmitted by the tube. (20 points) (b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 N-m from the...
