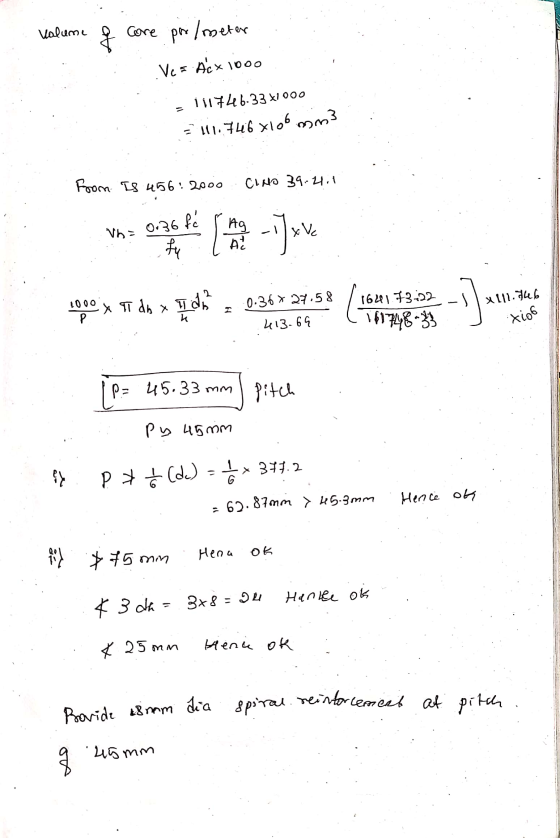

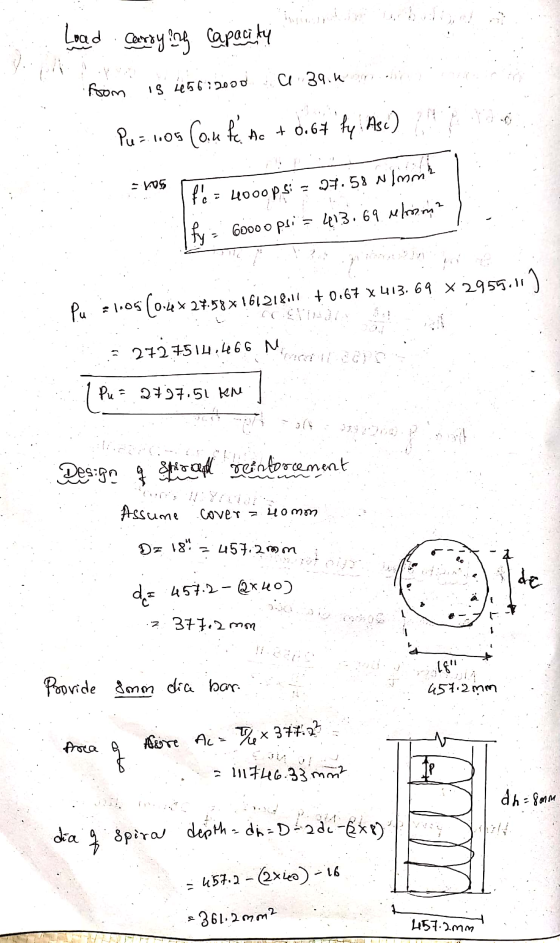

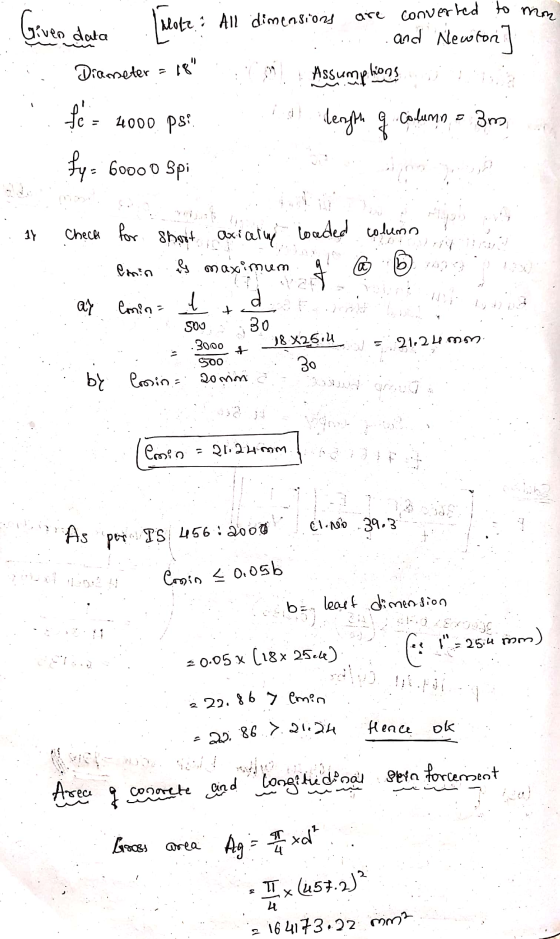

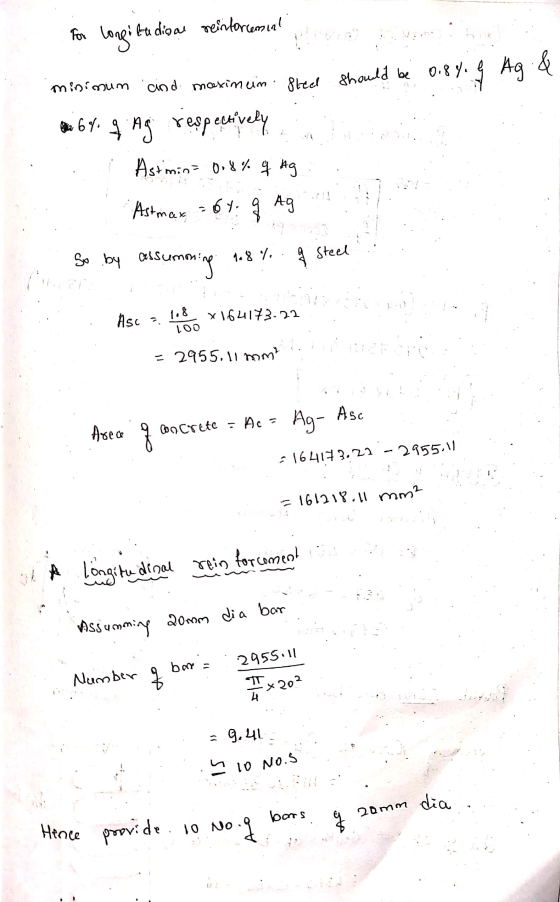

![Given data Ialote: All dimensions are converted to mm ::. and Newton] Diameter = 18 To Assumptions fó= 4000.ps: al length g](http://img.homeworklib.com/questions/d12de080-9384-11ea-8296-29067bd0c667.png?x-oss-process=image/resize,w_560)
Add Answer to:

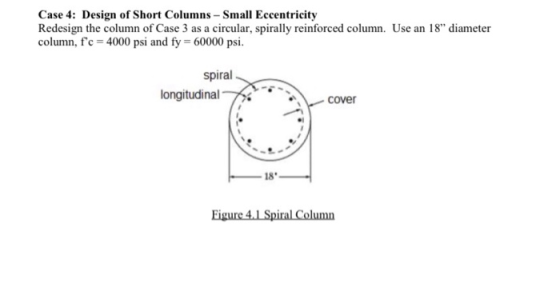

Case 4: Design of Short Columns - Small Eccentricity Redesign the column of Case 3 as...
Show Diagrams Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. A...
Show Diagrams
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. Assume small eccentricity. Check the spiral. Use fc 4000 psi and fy -60,000 psi. 큠.φ @ 2 7-'8 bars 1cover Figure 2.1 Spiral Column
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1...
Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties. Assume a short column. Use f’c = 4000 psi and fy = 60,000 psi for both longitudina...
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load. There is no identified applied moment. Assume that the column is short. Use f’c =4000 psi and fy...
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
Solve please. CMCE 2416 Elements of Structural Design - Concrete Assignment 4: Short Column with Axial...
Solve please.
CMCE 2416 Elements of Structural Design - Concrete Assignment 4: Short Column with Axial Load Determine if a 10" x 10" tied column reinforced with 4 #5 longitudinal bars is adequate to carry an axial load of Pu = 118 kips. Design the ties. Concrete compressive strength is 4,000 psi and the yield strength of both the longitudinal bars and the ties fy = 60,000 psi.
Ql: design short tied column to carry dead load 1600 kN and live load 1400 kN....
Ql: design short tied column to carry dead load 1600 kN and live load 1400 kN. 28 N/mm and Ty -420 N/mm Q2: design circular column spirally reinforced subjected to the following loads P 1000 kN Use fc-28 N/mnn, and fy =420 N/m rm2 Q 3: The 300 x 500 mm column shown in Fig. Q3 is reinforced with 8 No. 29 bars arranged around the column perimeter, providing an area Ast 5160 mm2. A factored load Pu of 1...
Design a square single column footing to support an 18 inch square interior column reinforced with...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
Problem 4 (30 points) Design a short square tied column to carry an axial dead load...
Problem 4 (30 points) Design a short square tied column to carry an axial dead load of 150 kips and a live load of 400 kips. Assume that the applied moments on the column are negligible. Use fc = 4,000 psi and fy = 60,000 psi. Assume a steel ratio of 3% (pg = 0.03).
Problem 9 (3 pts). A spiral circular column is subjected to an axial load of P- 850 kips Material properties are fe = 4 ksi and fy-60 ks. Concrete cover is 1.5 in. if the column has an outside di...
Problem 9 (3 pts). A spiral circular column is subjected to an axial load of P- 850 kips Material properties are fe = 4 ksi and fy-60 ks. Concrete cover is 1.5 in. if the column has an outside diameter of 20 in. and the diameter of spiral wire is #3 bar,the maximum spiral pitch is most nearly 1. a. 1.8 in. b. 2.3 in. c. 2.8 in. d. 3.3 in.
Problem 9 (3 pts). A spiral circular column is...
12 in 4 in 18 10 ft 10 ft 10ft 10ft Problem #3 Determine the required...
12 in 4 in 18 10 ft 10 ft 10ft 10ft Problem #3 Determine the required area of steel for a rectangular beam sections with b-10 in andh - 22 in to resist a factored design moment, Mu 260 kip-ft. If compression steel is needed, assume it is placed at a concrete cover of 2.5 in. use fc 4000 psi and fy- 60 ksi. Note: Provide a detailed sketch for the final section with strain and force diagrams
pls dont copy other answer they are wrong. exam soon pls help. 3. Design the braced column (300 x 300 mm) of the ground floor as shown in Fig. Q3. Assume the minimum cover to the 10 links is 20 mm an...
pls dont copy other answer they are wrong. exam soon pls
help.
3. Design the braced column (300 x 300 mm) of the ground floor as shown in Fig. Q3. Assume the minimum cover to the 10 links is 20 mm and φ32 longitudinal reinforcement is used. The materials strengths are fau 30 N/mm and fy 460 N/mm'. The base of the column is not designed to resist moment. The axial force in the column N- 2500 kN and the...
Show Diagrams
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1 is adequate to carry a factored axial load Pu of 540 kips. Assume small eccentricity. Check the spiral. Use fc 4000 psi and fy -60,000 psi. 큠.φ @ 2 7-'8 bars 1cover Figure 2.1 Spiral Column
Case 2: Design of Short Columns - Small Eccentricity Determine whether the spiral column of cross section shown in Figure 2.1...
Find the maximum design axial load strength for the tied column
of cross section shown in Figure 1.1. Check the ties. Assume a
short column. Use f’c = 4000 psi and fy = 60,000 psi for both
longitudinal steel and ties. Also, draw the flexural and shear
reinforcement on a sketch.
Case 1: Design of Short Columns- Small Eccentricity Find the maximum design axial load strength for the tied column of cross section shown in Figure 1.1. Check the ties....
Design a square tied column to carry axial service loads of 320
kips dead load and 190 kips live load. There is no identified
applied moment. Assume that the column is short. Use f’c =4000 psi
and fy = 60,000 psi. Also, draw the flexural and shear
reinforcement on a sketch.
Case 3: Design of Short Columns - Small Eccentricity Design a square tied column to carry axial service loads of 320 kips dead load and 190 kips live load....
Solve please.
CMCE 2416 Elements of Structural Design - Concrete Assignment 4: Short Column with Axial Load Determine if a 10" x 10" tied column reinforced with 4 #5 longitudinal bars is adequate to carry an axial load of Pu = 118 kips. Design the ties. Concrete compressive strength is 4,000 psi and the yield strength of both the longitudinal bars and the ties fy = 60,000 psi.
Ql: design short tied column to carry dead load 1600 kN and live load 1400 kN. 28 N/mm and Ty -420 N/mm Q2: design circular column spirally reinforced subjected to the following loads P 1000 kN Use fc-28 N/mnn, and fy =420 N/m rm2 Q 3: The 300 x 500 mm column shown in Fig. Q3 is reinforced with 8 No. 29 bars arranged around the column perimeter, providing an area Ast 5160 mm2. A factored load Pu of 1...
Design a square single column footing to support an 18 inch square interior column reinforced with 8-#10 bars. The column carries an unfactored dead load of 245 Kips that includes weight of soil and weight of footing and an unfactored live load of 20 feet below finished grade. The footing is 10 feet by 10 feet and is 30 inches thick. The allowable soil pressure is 5000 psf, fe' 4000 psi and fy 60000 psi. Concrete used shall be sand...
Problem 4 (30 points) Design a short square tied column to carry an axial dead load of 150 kips and a live load of 400 kips. Assume that the applied moments on the column are negligible. Use fc = 4,000 psi and fy = 60,000 psi. Assume a steel ratio of 3% (pg = 0.03).
Problem 9 (3 pts). A spiral circular column is subjected to an axial load of P- 850 kips Material properties are fe = 4 ksi and fy-60 ks. Concrete cover is 1.5 in. if the column has an outside diameter of 20 in. and the diameter of spiral wire is #3 bar,the maximum spiral pitch is most nearly 1. a. 1.8 in. b. 2.3 in. c. 2.8 in. d. 3.3 in.
Problem 9 (3 pts). A spiral circular column is...
12 in 4 in 18 10 ft 10 ft 10ft 10ft Problem #3 Determine the required area of steel for a rectangular beam sections with b-10 in andh - 22 in to resist a factored design moment, Mu 260 kip-ft. If compression steel is needed, assume it is placed at a concrete cover of 2.5 in. use fc 4000 psi and fy- 60 ksi. Note: Provide a detailed sketch for the final section with strain and force diagrams
pls dont copy other answer they are wrong. exam soon pls
help.
3. Design the braced column (300 x 300 mm) of the ground floor as shown in Fig. Q3. Assume the minimum cover to the 10 links is 20 mm and φ32 longitudinal reinforcement is used. The materials strengths are fau 30 N/mm and fy 460 N/mm'. The base of the column is not designed to resist moment. The axial force in the column N- 2500 kN and the...
