Design for a composit open channel
Homework Answers
Request Answer!
We need at least 5 more requests to produce the answer.
5 / 10 have requested this problem solution
The more requests, the faster the answer.
. A design for a rectangular weir to be placed in an open channel is shown...
. A design for a rectangular weir to be placed in an open
channel is shown in the figure. In the proposed design, the volume
flow rate is 900 cfs, b = 15 ft and h = 5 ft. A 1/20 physical model
is constructed using water at the same temperature and pressure as
will be used in the prototype. What should the flow velocity be in
the model to ensure dynamic similarity?
End View Water low
2. Design a trapezoidal channel to pass a discharge of 10m3/s and the channel will be...
2. Design a trapezoidal channel to pass a discharge of 10m3/s and the channel will be excavated through rock by blasting. The topography in the area is such that a bottom slope of 1 in 4000 will be suitable. Assume that n = 0.030 and select a value for the side slope, Z, as 1 horizontal to 4 verticals. Sketch the diagram for all calculated dimensions.
Design a channel to carry a flow of 6 m3/s. The channel will be excavated through...
Design a channel to carry a flow of 6 m3/s. The channel will be excavated through loose sandy soil at a channel bottom slope of 0.003 (assume n 0.025)

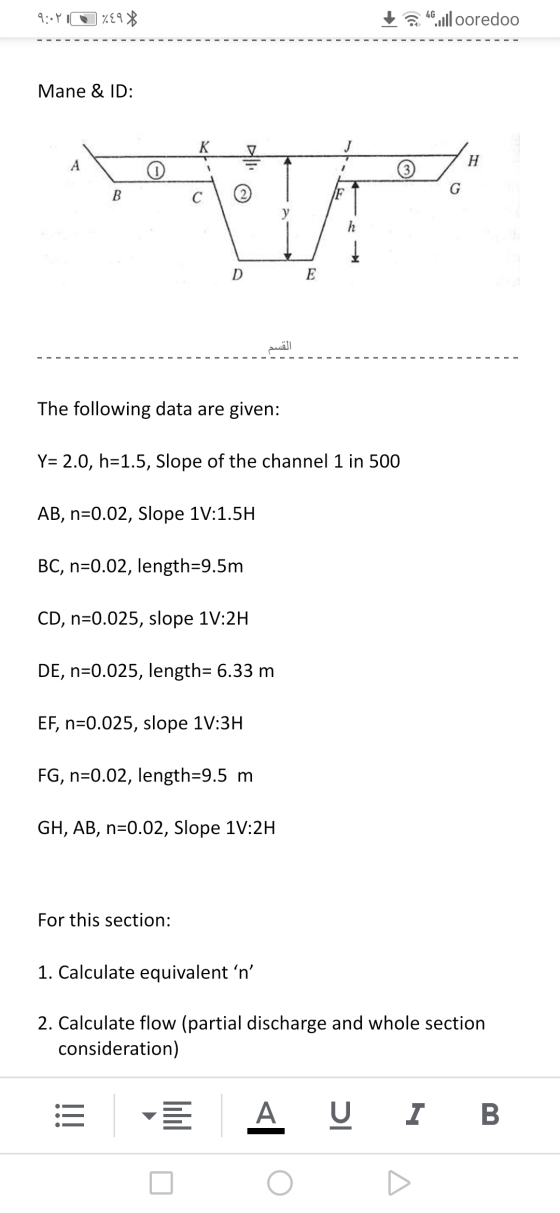

DESCRIPTION T-shaped open channel has two sub-channels more rough surfaces than the main channel. If the...
DESCRIPTION T-shaped open channel has two sub-channels more rough surfaces than the main channel. If the longitudinal slope of the channel is 0.0004 and y-2.5m, y=1m, b;=5m, b -8m, n, -0.018m, 12-0.036m. ASKED • find the total discharge flowing in the channel DESIGN • If this channel falls into a rectangular cross-section at the downstream side, and it is planned to have normal flow depth, y=1.5m, calculate the required base width, b. • If there is a 40cm smooth step...
A rectangular open channel, with a width of 1.5 m (dimension into the paper), has an...
A rectangular open channel, with a width of 1.5 m (dimension into the paper), has an average velocity of 3 m/s at A. Find the depth, h, at B. 0.5 m A
An aqueduct is an open water channel on top of a support bridge. The bridge maintains...
An aqueduct is an open water channel on top of a support bridge. The bridge maintains a shallow slope to use gravity to carry water (p = 1000 kg/m”, u = 10-3 Pa.s) over long distances from a reservoir to a community. The aqueduct shown below has a rectangular cross section, as shown in section A-A, with width W = 1.2 m. The water level in the duct is a constant d = 1 m over the entire length of...
A long steep reach in an open channel is followed by another reach as shown in...
A long steep reach in an open channel is followed by another reach as shown in Figure 3. steep mild Fig. 3 Draw the water surface profile in the following cases: i. no gates exist, ii. a gate is located between the two reaches, and iii. the gate is moved to the end of the second reach.

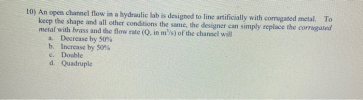

10) An open channel flow in a hydraulic lab is designed to line artificially with corrugated...
10) An open channel flow in a hydraulic lab is designed to line artificially with corrugated metal. To keep the shape and all other conditions the same, the designer can simply replace the corrugated metal with brass and the flow rate (Q, in m/s) of the channel will a. Decrease by 50% b. Increase by 50% c. Double d. Quadruple
An open channel flow in a hydraulic lab is designed to line artificially with corrugated metal....
An open channel flow in a hydraulic lab is designed to line artificially with corrugated metal. To keep the shape and all other conditions the same, the designer can simply replace the corrugated metal with brass and the flow rate (Q, in mº/s) of the channel will Decrease by 50% b. Increase by 50% Double d. Quadruple a. C.
Short Answer A rectangular open channel has a width of 5.0 meters and a slope of...
Short Answer A rectangular open channel has a width of 5.0 meters and a slope of 1 vertical to 800 horizontal. Find the mean velocity of flow when the depth of water is 2.4 meters and the discharge coefficient is 49. Your Own
. A design for a rectangular weir to be placed in an open
channel is shown in the figure. In the proposed design, the volume
flow rate is 900 cfs, b = 15 ft and h = 5 ft. A 1/20 physical model
is constructed using water at the same temperature and pressure as
will be used in the prototype. What should the flow velocity be in
the model to ensure dynamic similarity?
End View Water low
2. Design a trapezoidal channel to pass a discharge of 10m3/s and the channel will be excavated through rock by blasting. The topography in the area is such that a bottom slope of 1 in 4000 will be suitable. Assume that n = 0.030 and select a value for the side slope, Z, as 1 horizontal to 4 verticals. Sketch the diagram for all calculated dimensions.
Design a channel to carry a flow of 6 m3/s. The channel will be excavated through loose sandy soil at a channel bottom slope of 0.003 (assume n 0.025)
DESCRIPTION T-shaped open channel has two sub-channels more rough surfaces than the main channel. If the longitudinal slope of the channel is 0.0004 and y-2.5m, y=1m, b;=5m, b -8m, n, -0.018m, 12-0.036m. ASKED • find the total discharge flowing in the channel DESIGN • If this channel falls into a rectangular cross-section at the downstream side, and it is planned to have normal flow depth, y=1.5m, calculate the required base width, b. • If there is a 40cm smooth step...
A rectangular open channel, with a width of 1.5 m (dimension into the paper), has an average velocity of 3 m/s at A. Find the depth, h, at B. 0.5 m A
An aqueduct is an open water channel on top of a support bridge. The bridge maintains a shallow slope to use gravity to carry water (p = 1000 kg/m”, u = 10-3 Pa.s) over long distances from a reservoir to a community. The aqueduct shown below has a rectangular cross section, as shown in section A-A, with width W = 1.2 m. The water level in the duct is a constant d = 1 m over the entire length of...
A long steep reach in an open channel is followed by another reach as shown in Figure 3. steep mild Fig. 3 Draw the water surface profile in the following cases: i. no gates exist, ii. a gate is located between the two reaches, and iii. the gate is moved to the end of the second reach.
10) An open channel flow in a hydraulic lab is designed to line artificially with corrugated metal. To keep the shape and all other conditions the same, the designer can simply replace the corrugated metal with brass and the flow rate (Q, in m/s) of the channel will a. Decrease by 50% b. Increase by 50% c. Double d. Quadruple
An open channel flow in a hydraulic lab is designed to line artificially with corrugated metal. To keep the shape and all other conditions the same, the designer can simply replace the corrugated metal with brass and the flow rate (Q, in mº/s) of the channel will Decrease by 50% b. Increase by 50% Double d. Quadruple a. C.
Short Answer A rectangular open channel has a width of 5.0 meters and a slope of 1 vertical to 800 horizontal. Find the mean velocity of flow when the depth of water is 2.4 meters and the discharge coefficient is 49. Your Own
