(use k map)Homework Answers
Add Answer to:
(use k map)

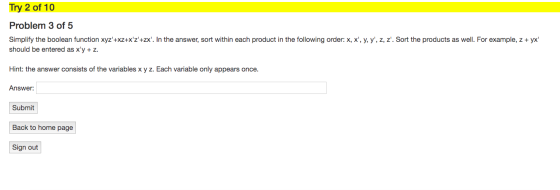

Try 2 of 10 Problem 3 of 5 Simplify the boolean function xyz'+xz+x'z'+zx'....
5. Simplify the following Boolean funct e following Boolean function by means of a four-variable K-map....
5. Simplify the following Boolean funct e following Boolean function by means of a four-variable K-map. Show your map and groups and write the simplest equation using proper variable names. F(W,X,Y,Z) = m (0, 1, 2, 3, 4, 6, 7, 10, 11, 12, 13, 14)
1. (9 points, 3 points each) Using the Boolean identities, simplify the following expressions: a. (x7)Zi)(2+...
1. (9 points, 3 points each) Using the Boolean identities, simplify the following expressions: a. (x7)Zi)(2+ y) b. 7(xyz) + y(ż + (7 +z)) C. (xz + ✓x) + y(x+y)(7+ y)
Given the following truth table, provide the corresponding product-of-sum boolean function. Does not simplify the function....
Given the following truth table, provide the corresponding product-of-sum boolean function. Does not simplify the function. In the answer, sort each sum in the order of "x, y, z". The sums should appear in the same order as that of the corresponding inputs in the truth table from top down. For example, in (x+y+z)(x'+y'+z') the sum x+y+z appears before x'+y'+z' because in the truth table the input (0,0,0) (x+y+z=0 for this input) is in the first row and the input...
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x,...
1. (15 pts) Simplify the following Boolean functions using K-maps: a. F(x,y,z) = (1,4,5,6,7) b. F(x, y, z) = (xy + xyz + xyz c. F(A,B,C,D) = 20,2,4,5,6,7,8,10,13,15) d. F(A,B,C,D) = A'B'C'D' + AB'C + B'CD' + ABCD' + BC'D e. F(A,B,C,D,E) = (0,1,4,5,16,17,21,25,29) 2. (12 pts) Consider the combinational logic circuit below and answer the following: a. Derive the Boolean expressions for Fi and F2 as functions of A, B, C, and D. b. List the complete truth table...
