Consider the circuit shown in the fiqure AR what is the voltage across the inductor in...

Question

Question

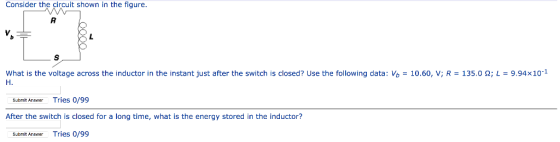

Consider the circuit shown in the fiqure AR what is the voltage across the inductor in the instant just after the switch is c

science physics

Answer 1

Answer #1

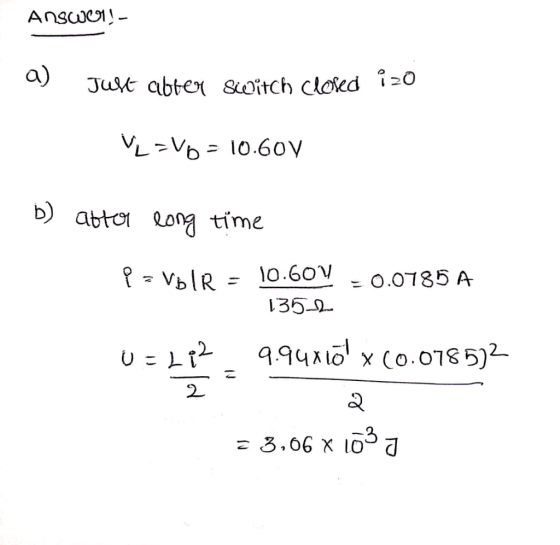

20 b) abto o time ? VolR- 1060一ー0.0785 A 135 3

Answer 2

Similar Homework Help Questions

Inductor Problem: Consider the circuit shown in the figure. A) What is the voltage across the...

Inductor Problem: Consider the circuit shown in the figure. A) What is the voltage across the inductor in the instant just after the switch is closed? Use the following data: Vb = 5.50, V; R = 135.0 Ω; L = 6.87×10-1 H. B) After the switch is closed for a long time, what is the energy stored in the inductor?
Consider the circuit shown in the figure. a. What is the voltage across the inductor in...

Consider the circuit shown in the figure. a. What is the voltage across the inductor in the instant just after the switch is closed? Use the following data: Vb = 6.40, V; R = 146.0 ?; L = 8.07×10-1 H. b. After the switch is closed for a long time, what is the energy stored in the inductor?
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-76 Ω, R3-105 Ω and R4-810. The inductance is L-478 mH and the battery voltage is V-24 V 1) The switch has been open for a long time when at time t - o, the switch is closed. What is 11(0), the magnitude of the current through the resistor R1 just after the switch is closed? A uIii...

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R = R2 = 622, R3 = 91 and R - 74 . The inductance is L-205 mH and the battery voltage is V - 24V. v + Lun lai 1) The switch has been open for a long time when at time t = 0, the switch is closed. What is 1(O), the magnitude of the current...
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown....

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 49 Q, R = 105 Q and Ra = 142 . The inductance is L = 354 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign. "TII Luni 1) The switch has been open for a long time when at time...
answer all A circuit is constructed with four resistors, one inductor, one battery and a switch...

answer all A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1-R2-56 Ω, R3-45 Ω and R4-91. The inductance is L-245 mH and the battery voltage is V- 24V 1) The switch has been open for a long time when at timet 0, the switch is closed. What is I1(0), the magnitude of the current through the resistor R1 just after the switch is closed? 2) What...

In a circuit, a parallel combination of a resistor R2 = 20.3 Ω and an inductor...

In a circuit, a parallel combination of a resistor R2 = 20.3 Ω and an inductor of L = 3.70 mH is connected in series with a resistor of R1 = 5.80 Ω, a 6.00-V dc battery, and a switch. What is the voltage across the 5.80-Ω resistor immediately after the switch is closed? What is the current in the 3.70-mH inductor after the switch has been closed for a long time? 6.00 V I SR,
A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω.

A circuit is constructed with four resistors, one inductor, one battery and a switch as shown. The values for the resistors are: R1 = R2 = 48 Ω, R3 = 100 Ω and R4 = 130 Ω. The inductance is L = 330 mH and the battery voltage is V = 12 V. The positive terminal of the battery is indicated with a + sign.1)The switch has been open for a long time when at time t = 0, the...
A circuit is constructed with two resistors and one inductor as shown in the Figure below....

A circuit is constructed with two resistors and one inductor as shown in the Figure below. The values for the resistors are: R1 = 2.50 and R2 = 4.5 0. The battery voltage is V = 12 V. The switch S is initially open. S R V R2 L 000 1) After the switch has been opened a long time, it is closed. What is the magnitude of the voltage across L immediately after the switch is closed? O 7.7...
