A causal LTI system is described by the following difference equation:


A causal LTI system is described by the following difference equation:

y(n) – Ay(n-1) - 2A2y(n − 2) = x(n) – 2x(n-1) + x(n–2),


where A is a real constant. Determine the z-domain transfer function, H(z), of the system in terms of A.

engineering   Electrical-Engineering
7 1
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

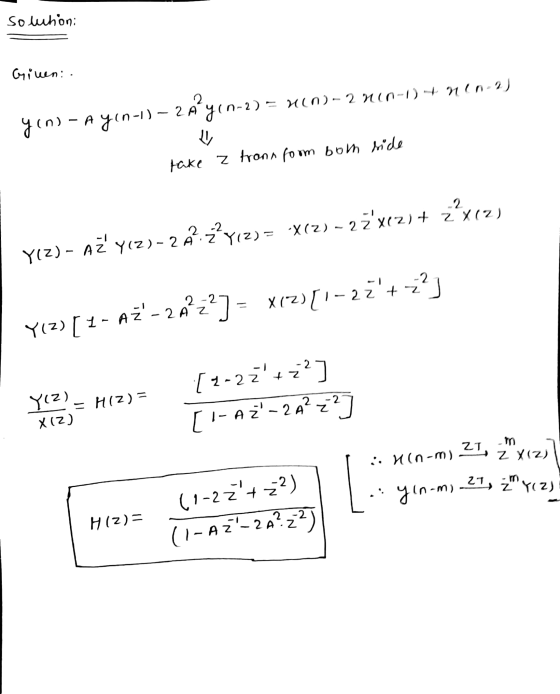

Answer #1

0 1
Add a comment
