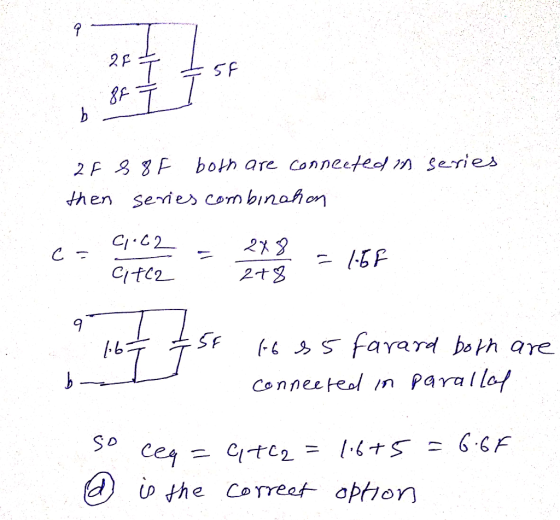

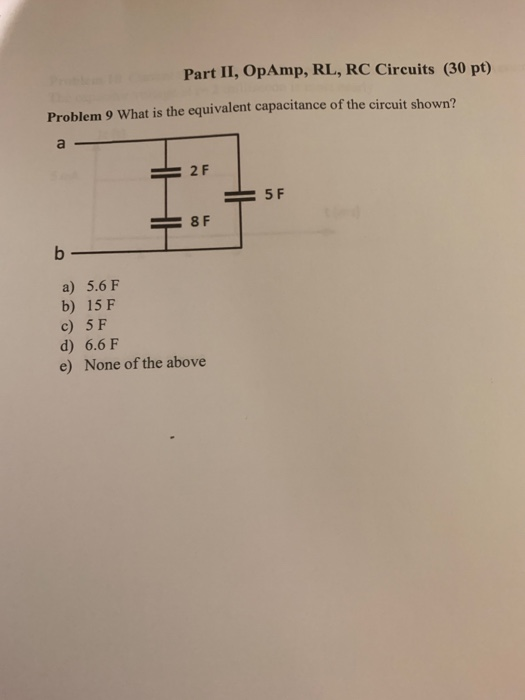

Part II, OpAmp, RL, RC Circuits (30 pt) Problem 9 What is the equivalent capacitance of...
EXPERIMENT 11 STEP RESPONSE TO RC AND RL CIRCUITS pages 11-4 thru 11-7. tep response of the RC and RL circuits is included in OBJECTIVE: O analyze the voltage and current characteristics of a Resistance - Capacitance (RC) circuit when driven by a step voltage function. To analyze the voltage and current characteristics of a Resistance- Inductor (RL) circuit when driven by a step voltage function To design an RC circuit to yield a specified output voltage with a step...
EEE202: Circuits & Devices: Fall, 2018 THOMAS KChapter 7: RL and RC Circuits Problem 7.75 PSpice Multisinm く) 11 of capacitor in the circuit has been charged to 490、At t0, switch 1 closes, causing the capacitor to discharge into the resistive network. Switch 2 closes 200 μs after switch 1 closes. (Figure 1) Part A Find the magnitude of the current in the second switch 300 μs after switch 1 closes Express your answer with the appropriate units. Figure 1...
8. Capacitance in circuits, RC circuits When a voltage source Vo is applied to a capacitor in a circuit which has a resistance R, a charge Q CV will build up across the capacitor. This does not happen instantaneously, but takes some time. The charge builds up exponentially with a characteristic time r = RC. Charging: V = v. 1 - e-t/RC) Discharging: Vc = V e-t/RC Page 2 of 3 When t = RC , the exponential is lle,...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
1. RL Circuits For the circuit in Figure 1, find the inductor voltage vit) if a) v(t) is the step function: 0 Vfor t<0 and 10 V for t>0. What is the time constant in this case? b) vs(t) 15 cos(100 t). You may use either the direct time-domain method, or use (complex) phasor method. 52 102 5mH L(t) Figure 1 2. Impedance You are given six black boxes, labelled "1" to ", each with two terminals. You are told...
Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-20 Ω,R2= 12 Ω, R3-18 Ω, R4= 20 Ω, R5= 9 Ω , R.-3 ΩΊ,-15 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Subrnit Answer Tries 0/3 (b) Determining the load current I following from a to b for the Wheatstone bridge circuit with...
4) Midterm question Problem 2 (30 points) C=30 uF The air capacitors with C=Cq=3.0 MF, C=2.04F and C3= 1.0F are connected to a Vo battery as shown. If the charge on C2 is Q2=20.0 C, | ,2015 Foton C1.0 F (a) (15 pts. Find the equivalent capacitance of the circuit. (b) (15 pts.) Find V. 1) A charge Q is placed on a capacitor of capacitance C=C. The capacitor is then, connected to a resistor and another capacitor of capacitance...
B oth 100 Day PH262 Page 1 of 5 Lab #13 AC Circuits, Part 1 RC & RL, Phase Measurements THEORY The rotating phase representation for series AC circuits should be familiar from textbook and lecture notes A brief outline of the essential points is provided here. If a series RLC circuit is connected across a source of om which is a sinusoidal function of time, then und all its derivatives will also be inside. Sonce all demits in a...
