What is the simplified version of the four-variable K-map for the following expression ∗F(A,B,C,D)=Σ(0,2,4,5,6,7,8,10,13,15)

Question

Question

What is the simplified version of the four-variable K-map for the following expression

∗F(A,B,C,D)=Σ(0,2,4,5,6,7,8,10,13,15)

engineering Computer-Science

Answer 1

Answer #1

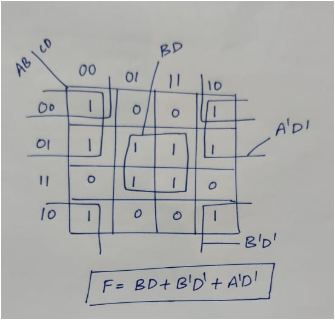

AB CD 00 BD 11 10 이1 ADI 10 I F= BD+ BD AD!

Answer 2
