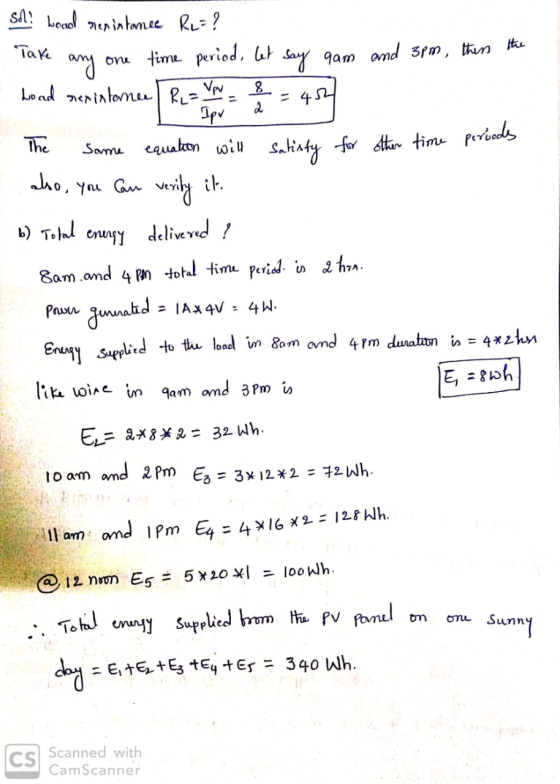

2. Consider a single PV module supplying power to a resistance load. The hour-by-hour I-V curves...
OS: A photovoltaic (PV) module is made up of 36 identical cells, all wired in series. With one sun insolation, each cell has short-circuit current ISC 3.4 A and at 25 oC its reverse saturation current is 10 =6 x 10-10 A. The system has a parallel shunt resistance RSH = 6.6 2 and series resistance RS = 0.005 2 as shown in Figure Q8. Find the voltage, current, and power delivered when the junction voltage of each cell is...
A module with 40 cells has an idealized, rectangular I-V curve with I(sc) = 3.5A and V(oc)= 22.5 V. If a single cell has a parallel resistance of 4.5 Ω and negligible series resistance, draw the I-V curve if one cell is completely shaded. What current would the module deliver to a 12-V battery?
For the equivalet circuit of the PV cell assume Diode voltage 0.6 V Photocurrent, Isc 6 A Resistance Rp 10 Ohms Reverse saturation current 30 pA and kT/q- 25.7 mV CA Load Figure P84 Problem 5- Calculate the diode current, in Amps Problem 6- The current in the parallel resistance, in Amps Problem 7- The load current I, in Amps Problem 7-B. calculate the electric power delivered by the cell, in Watts 5.8 5.9 I-V characteristic I-lo (exp(qv/kT)-1) Open circuit...
The load data for a primary feeder of a power company for a typical winter day are as follows Street Lighting 1 AM to 6 AM 500 kW 7 AM 300 kW 8 AM to 5 PM 0 kW 6 PM 200 kW 7 PM 300 kW 8 PMto 12 AM 500 kW Residential Load 1 AM to 5 AM 100 kW 6 AM 250 kW 7 AM to 8 AM 400 kW 9 AM 300 kW 10 AM to...
I Review The figure below shows a resistive load R = 7 12 connected to a Thevenin equivalent circuit (Figure 1). Suppose that V = 36 V Part A For what value of Thevenin resistance is the power delivered to the load maximized? (Hint: Be careful; this is a tricky question if you don't stop to think about it.) Express your answer to two significant figures and include the appropriate units. ? .! HA Rs = Value O 2 Units...
a. For the circuit given in Figure 6
i. Find the load resistance RL that will receive maximum power
and determine the maximum power.
ii. Determine the power dissipated on the load when RL = 2 Ω and
RL = 10 Ω.
Figure 6
b. For the circuit shown in Figure 4, determine:
iii. The power delivered to the load.
iv. The impedance required in a matching network that will
receive maximum power.
Figure 4
1. R 1012 R2 32012...
1. A single-phase power system consists of a 480-V 60-Hz generator supplying a load of Zload = 4 + j3 2 through a transmission line of impedance Zline = 0.18 + 0.24 2. (a) (i) If the power system is exactly as shown in Fig. P3.1, calculate the line current voltage at the load. (ii) Calculate the transmission line losses. (b) Suppose a 1:10 step-up transformer is placed at the generator end of the transmission line and 10:1 step-down transformer...
Solve by hand and simulate in any electrical circuit
simulator preferrably LTSpice
Solve by hand only.
Problem #4: Consider the circuit shown below. 6Ω /8 Ω 302 2700 V (rms) 40 2 Source-Line Load (a) Find the real power dissipated in the line. (b) Find the capacitive reactance that when connected in parallel with the load will pl make the load look purely resistive. (c) What is the equivalent impedance of the load in (b)? (d) Find the real power...
please i need it to be typed
Assignment Number 2 (PV) 1. Draw the electrical model of a PV cell. And explain the significance of each circuit parameter in it. 2. What is the MPP? What is the MPPT? 3. What is the purpose of MPPT in a PV system? 4. Plot or show the I-V curve of a PV cell showing the key parameters on the plot. And explain the significance of each of these parameters in a few...
Problem 2 A 1.5 volt energy source is to used to power a 5 volt, 1 amp load. A buck-boost converter is used for this application. A suitable transistor is found with an on-resistance of 35 mQ, and a Schottky diode is found with a forward drop of 0.5 volts. The on resistance of the Schottky diode may be ignored. The circuit is shown in the following figure. 1 A 100 HH 5 V Load 1.5 V DT T f,...
