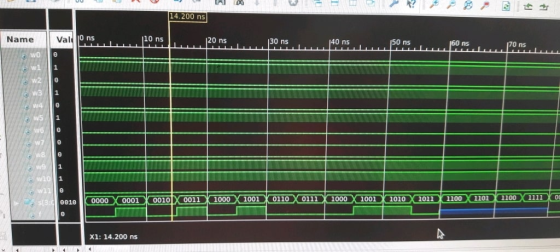

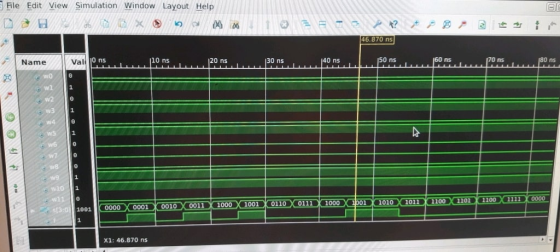

two different waveform for F=Z and F=0 which is a default case for last 4 inputs as we were not connecting the last for inputs to mux

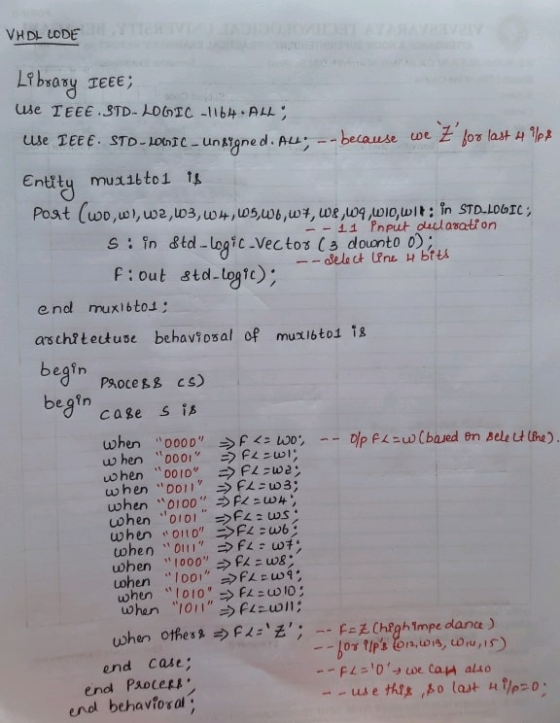

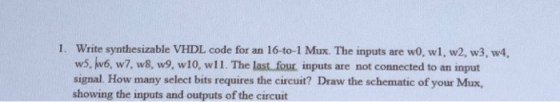

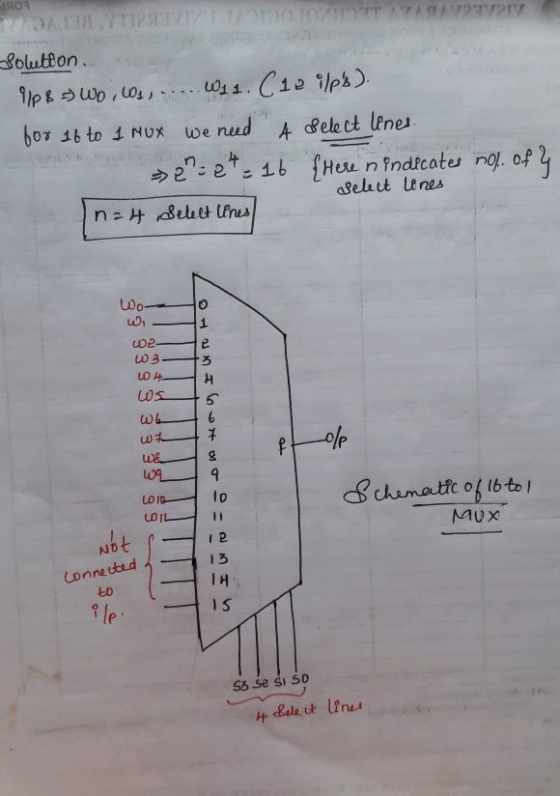

1. Write synthesizable VHDL code for an 16-to-1 Mux. The inputs are wo, wl, w2, w3,...
