Question

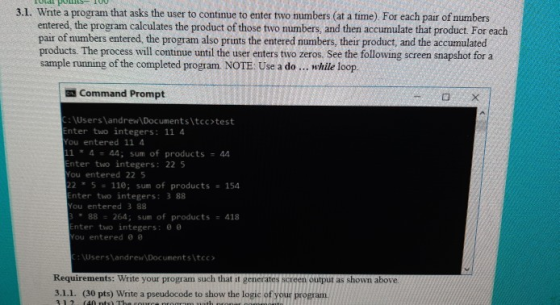

3.1. Write a program that asks the user to continue to enter two numbers (at a time). For each pair of numbers entered, the program calculates the product of those two numbers, and then accumulate that product. For each pair of numbers entered, the program also prints the entered numbers, their product, and the accumulated products. The process will continue until the user enters two zeros. See the following screen snapshot for a sample running of the completed program. NOTE: Use a do ... while loop Command Prompt X C:\Userslandrew\Documents\tcc>test Enter two integers: 11 4 You entered 11 4 114-44; sum of products 44 Enter two integers: 22 5 You entered 22 5 22 5 110; sum of products 154 Enter two integers: 3 88 You entered 3 88 888 264; sum of products 418 Enter two integers: 0 You entered 0 C:Users\andrew Documents \tcc Requirements: Write your program such that it generates screen output as shown above 3.1.1. (30 pts) Write a pseudocode to show the logic of your program 31.2. (40 nts) The cource proaram uth proner

This is a C program. please help me to write a pseudocode of the program . also, I want the program In a do...while loop and the screen output should look like in the picture. please help me.

Answer 1

C program for this is below:

#include<stdio.h>
int main()
{
int a,b,sumOfProducts=0,product;
do
{
printf("Enter two integers: ");
scanf("%d%d",&a,&b);
printf("You entered %d %d\n",a,b);
if(a==0&&b==0)
break;
product=a*b;
sumOfProducts=sumOfProducts+product;
printf("%d * %d = %d; sum of products = %d\n",a,b,product,sumOfProducts);
}
while(a!=0 && b!=0);

return 0;
}

Output screen is attached, I tried the same as yours.

Enter two integers: 11 4 You entered 11 4 11 * 4 = 44; sum of products = 44 Enter two integers: 22 5 You entered 22 5 22 * 5 = 110; sum of products = 154 Enter two integers: 3 88 You entered 3 88 3 * 88 = 264; sum of products = 418 Enter two integers: OO You entered oO Process returned @ (@xo_execution time: 41.317 S Press any key to continue.

The pseudo code for the above is:

In the body of do while:

1. take inputs from user

2. display them

3. Use if condition to check whether in the first attempt user has not entered 0 0(if entered then break because do while loop executes atleast ones)

4. calculate product and sum of products

5. display the content

6. repeat process if the numbers are non zero

Please like/upvote my answer. It means a lot to me. If you have any doubts feel free to ask in comments.
