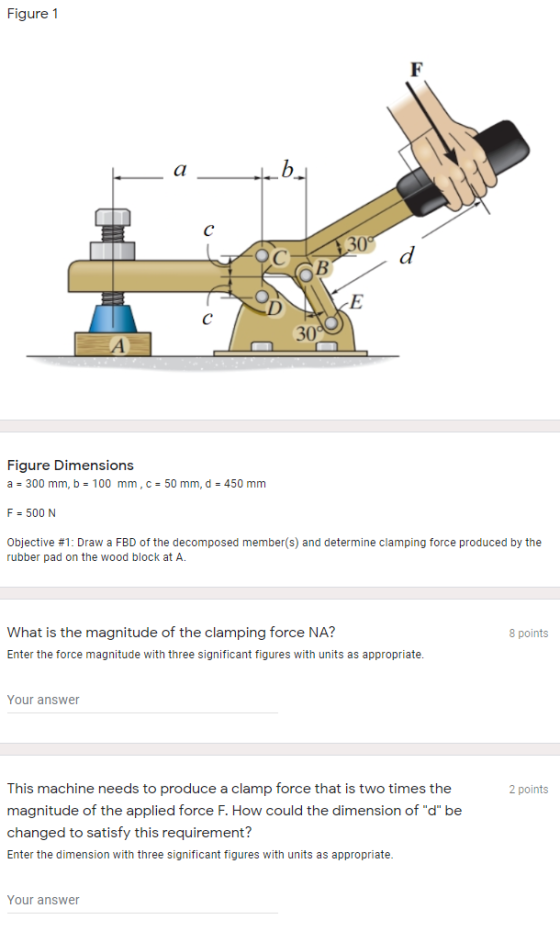

Figure 1 ab. OCRO d Figure Dimensions a = 300 mm, b = 100 mm, c = 50 mm, d = 450 mm F = 500 N Objective #1: Draw a FBD of the

engineering Civil-Engineering

Add a comment Improve this question Transcribed image text

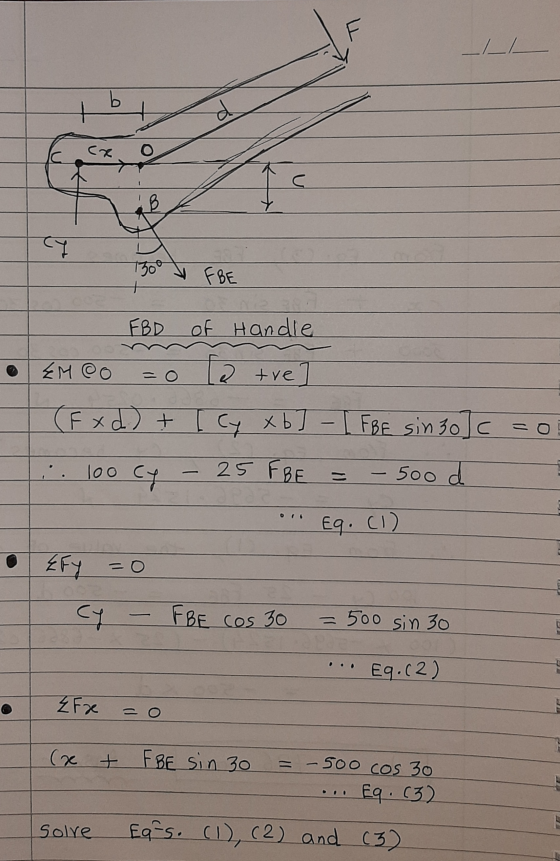

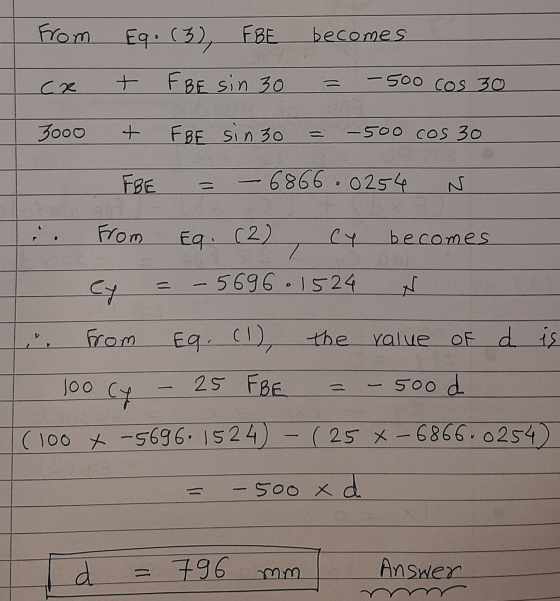

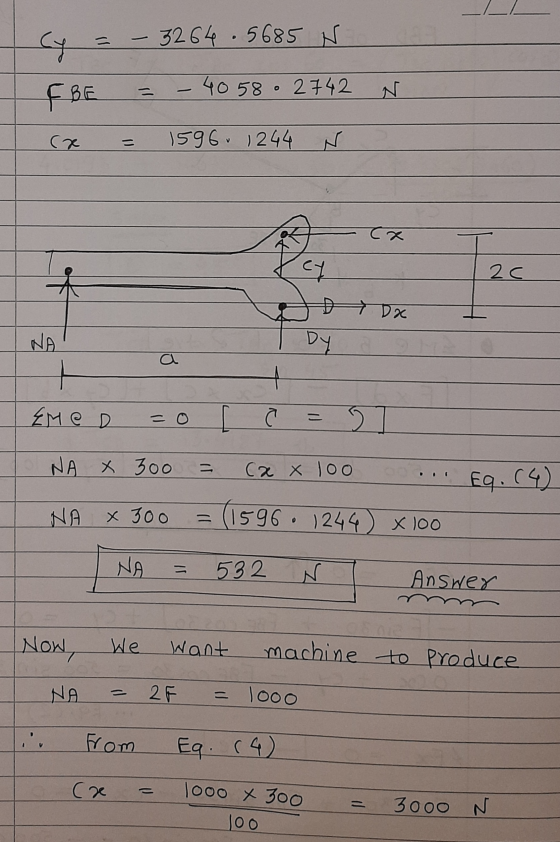

Answer 1

Answer #1

Add a comment

Answer 2
