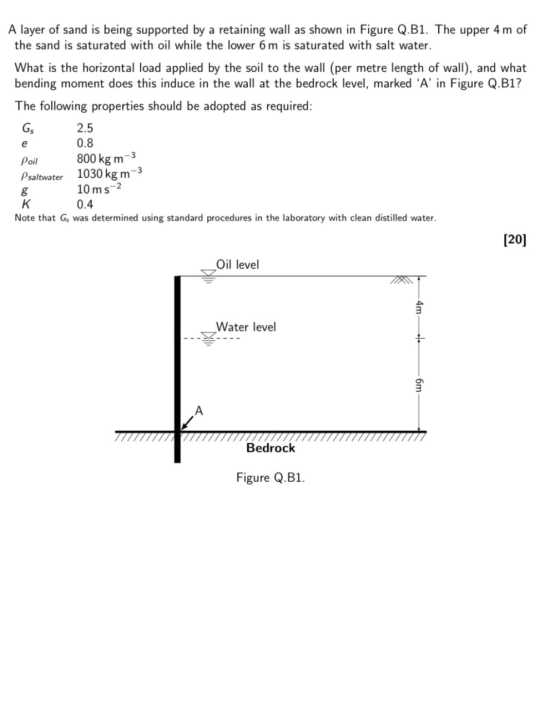

A layer of sand is being supported by a retaining wall as shown in Figure Q.B1. The upper 4m of the sand is saturated with oil while the lower 6m is saturated with saltwater.
What is the horizontal load applied by the soil to the wall (per meter length of wall), and what bending moment does this induce in the wall at the bedrock level, marked 'A' in Figure Q.B1?

We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
please help ASAP
1.5-7 A hollow, brass circular pipe ABC (oce figure supports a load P, 118 kN acting at the top A second load P -98 kN is uaiformly distributed around the cap plate at B. The diameters and thicknesses of the upper and lower parts of the pipe are 31 mm ,,-12 mm, dae" 57 mm, and tac· 9 mm, respectively. The modulus of clasticity is 96 GPa. When both loads are fully applied, the wall thickness of...
Question 4 A uniform beam of arbitrary, unsymmetrical cross-section and length 21 is built-in at one end and simply supported in the vertical direction at a point half-way along its length. This support, however, allows the beam to deflect freely in the horizontal x direction (Figure Q4) For a vertical load W applied at the free end of the beam, calculate and draw the bending moment diagram, putting in the principal values. Figure Q4 [Answers: M.-0, MB-WI, MA--W1/2 linear distribution...
50 m Impermeable Concrete dam 6 m 1 m 10 m PtA (at mid-point of layer and centre of base) DATUM Impermeable bedrock Figure 2: Concrete dam (not to scale) Figure 2 shows the cross-section through a long concrete dam in anisotropic soil. The horizontal and vertical permeability of the soil are: K 25 x 10-4 cm/sec and Ky 1 x 10-cm/sec.. (a) Calculate the transform parameter a. In your exam booklet, draw the transformed flow domain to scale and...
3-5 The cross-sectional dimension of a concrete retaining wall is shown in Fig 3-34, together with the soil profile of the ground. If a vertical line load (in- cluding the self weight of the wall) acting on the wall foundation is P = 1000 kN/m and its point of application is 3.83 m to the wall front toe A. The horizontal thrust on the wall back is H =350 kN/m and its point of ap- plication is 3.5m above the...
Problem 5 You are to examine the retaining wall shown on Figure 2. Assume that the wall height (H) is equal to 12 feet, and the base width (B) is 7 feet. The wall will be approximately 200 feet long (into the page). The backfill material behind the wall is a poorly-graded sand with silt (ŚP-SM) that has an average total unit weight of 1 19 pounds per cubic foot (pcf) and an average water content of 12%. As indicated,...
You are designing the foundation for a natural gas import terminal. The subsurface is
predominantly alluvial clays in the upper 6 – 15 m below the ground surface (BGS), which
has resulted in large post construction settlements on nearby structures. To prevent large
settlements and differential settlements, the new gas tanks will be supported by pile
foundations. You have determined that pre-stressed concrete (PSC) piles are the most
economical solution. The pile layout will be a square with center-to-center spacing...
Question 6 It is required to construct a 4 m deep underground carpark in the heart of the city of Melbourne without disturbing the surrounding area. The required excavation for the proposed carpark and also the adjacent ground condition are shown in Figure 6.1. As can be seen from the figure, the adjacent ground consists of a 2 m deep clay deposit, resting on a 2 m thick sand deposit, where stable soil could be found below the sand deposit...
the due date, it is your responsibility to turn it in prior to that date. I. Two separate steel cantilever beams of equal elastic modulus E of 200 GPa and moment of inertia I of 2.52x106 mmare built into a wall as shown in the figure. The upper beam has length 2L, and the lower beam has length L, where Lis 2 m. Subsequently, a load P is applied at the end of the upper beam at C. Find the...
Question 2 [Marks: 15 +10=25] 200kPa of construction stress was applied on top of the soil layers as shown in the figure below. (1) Calculate the settlement in the clay layer due to the construction (minimum of 2 sub layers is to be used). (W) If the soil went through 90% average degree of consolidation in 1 year, calculate the coefficient of consolidation (C.). 个 Sand Y = 20kN/m 4m Water table Clay (over consolidated) y = 16kN/m 100 4m...
We were unable to transcribe this imager Engineenng eratures in the rim by around 313 K compared with earlier piston designs. The piston's steel skirt is much more rigid than the aluminum skirt in smaller deformation and allowing for designs with tighter clearances tin harmful exhaust emissions) from the piston. This design has been shown to reduce piston termn results in a more stable piston with less oil consumption (thus further r which are machined prior to welding. The process...
