1 pts Question 2 The figure shows a uniform, horizontal beam (length 10 m, mass 28...

Question

Question

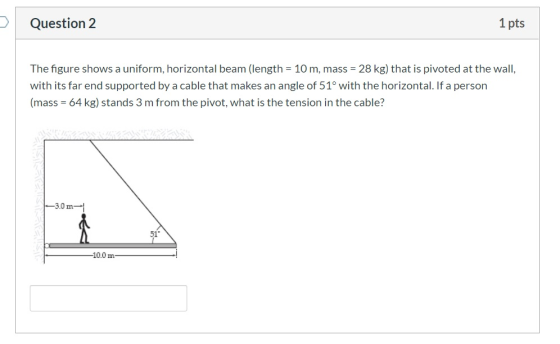

1 pts Question 2 The figure shows a uniform, horizontal beam (length 10 m, mass 28 kg) that is pivoted at the wallI, with its

science physics

Answer 1

Answer #1

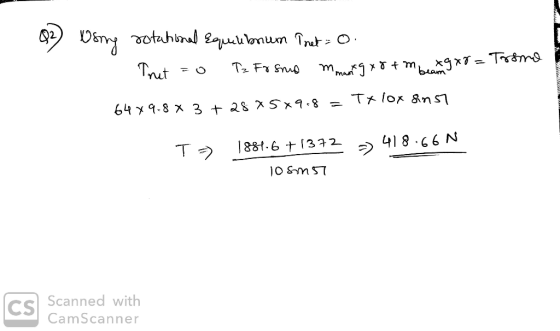

sono blam y rotational Equilibrium Tret = 0. Thut =0 Tz Frsrud m mangx8+m xgx8= Promo 64x9.8× 3 +28 75x9.8= Txlox ainst T = 1

Answer 2

Similar Homework Help Questions

The figure shows a uniform, horizontal beam (length = 10.0 m, mass = 30.0 kg) that...

The figure shows a uniform, horizontal beam (length = 10.0 m, mass = 30.0 kg) that is held by a horizontal pin (pivoted at the wall), with its far end supported by a cable that makes an angle of 51 degree with the horizontal. A person of mass M stands 3.00 magnitude of 454 N. (a) Calculate the mass M of the person standing on the beam? (b) What are the horizontal and vertical components of the force the pin...
7 The figure shows a uniform horizontal beam (length = 8 m, mass = 20 kg)...

7 The figure shows a uniform horizontal beam (length = 8 m, mass = 20 kg) that is pivoted at the wall, with its far end supported by a cable that makes an angle of 50 degree with the horizontal. If a store's sign (mass = 30 kg) is hung at the end of beam, find all forces on the beam.
3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is...

3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is attached to a wall. Its far end is suspended by a cable that makes an angle of 63 degrees with the beam. A person of mass 72 kg stands a distance d = 4.0 m from the wall. Find the tension in the cable as well as the magnitude and direction of the force exerted by the wall on the beam.

A uniform horizontal beam with a length l = 8.00 m and weight of Wb =...

A uniform horizontal beam with a length l = 8.00 m and weight of Wb = 200 N is attached to a wall by a pin connection. Its far end is supported by a cable that makes an angle of θ = 53.0◦ with the beam. A person of weight Wp = 600 N stands a distance d = 2.00 m from the wall. Find the tension in the cable.
A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall...

A uniform beam of length 10.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the far end of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A. What is the tension in the cable? B. What force is exerted by...
rarong questions) Question 1. A uniform horizontal beam with a length of L=10.00 m and weight...

rarong questions) Question 1. A uniform horizontal beam with a length of L=10.00 m and weight is 250 N is attached to a wall by a pin connection as shown. Its far end is supported by a cable that makes an angle of = 60.0' with the beam. A person of weight 500 N stands a distance d = 2.50 m from the wall. Find the tension in the cable. (16 points) ათ ESON 60.0 SOON P=2.50 swo

A uniform beam of mass and a length of, is attached to a wall by a...

A uniform beam of mass and a length of, is attached to a wall by a pin connection. Its far end is supported by a cable that makes an angle of with the beam. A person of weight stands a distance from the wall. Find the tension in the cable and the magnitude and direction of the force exerted by the wall on the beam.
A uniform horizontal beam of length 8 m and weight 200 N is attached to a...

A uniform horizontal beam of length 8 m and weight 200 N is attached to a wall by a pin connection that allows the beam to rotate. Its far end is supported by a cable that makes an angle of 53degree with the horizontal. If a cable is strong enough to withstand T= 1200 N how heavy person can walk to the end of the beam? When that person was at the 0.75 distance from the wall, find: a. the...
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall...

A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the midpoint of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A 20 .0 kg mass hangs from a second cable which is attached to the...

3. A uniform horizontal beam of length 8.00m and weight 150N is attiched to a wail...

3. A uniform horizontal beam of length 8.00m and weight 150N is attiched to a wail by a pin connection. Its 47.0P with the far end is supported by a cable that makes an angle of horizontal. A 700 N man stands 2.00m from the wall. (4pts) a) Draw a free body diagram for the beam (6pts) b) Determine the tension in the cable. (6pts) c) Determine the horizontal and vertical components of the reaction force exernte by the wall...
