This problem belongs to the complex power calculation and is entirely based on one concept i.e.
Complex power S = Vrms*(Irms)*
where (Irms)* denotes the conjugate of RMS value of current through the terminals of the element across which the complex power is to be calculated.
Complex power S can be denoted in cartesian form as
S = P+jQ
here P= real power in watts
Q= reactive power in VAR
Also, S= |S|<φv-φi
|S| is the apparent power and
<φv-φi is the power factor angle
if <φv-φi is positive, the power factor is said to be lagging.
if <φv-φi is negative, the power factor is said to be leading.
cos(<φv-φi) gives the power factor.

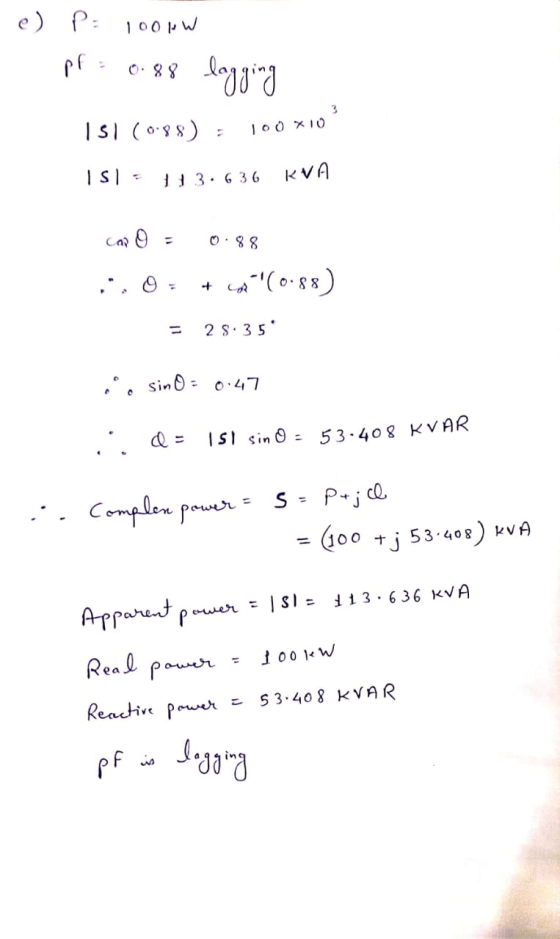

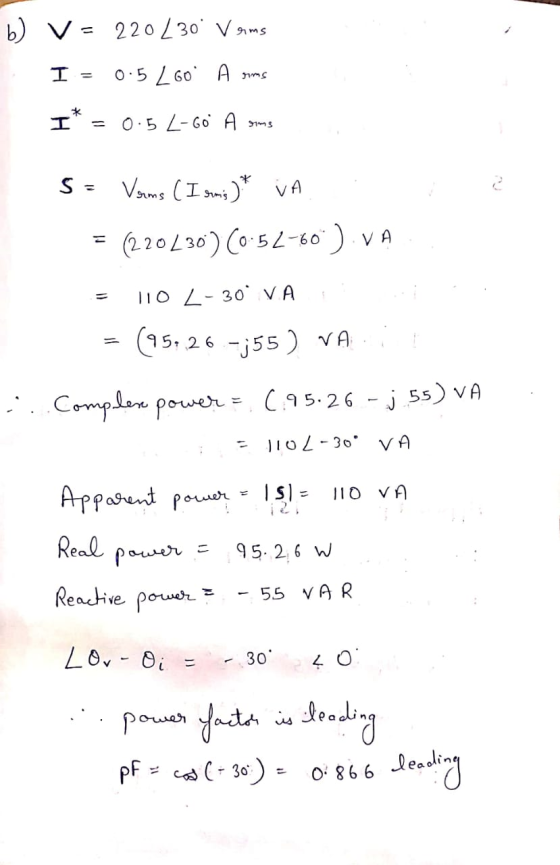

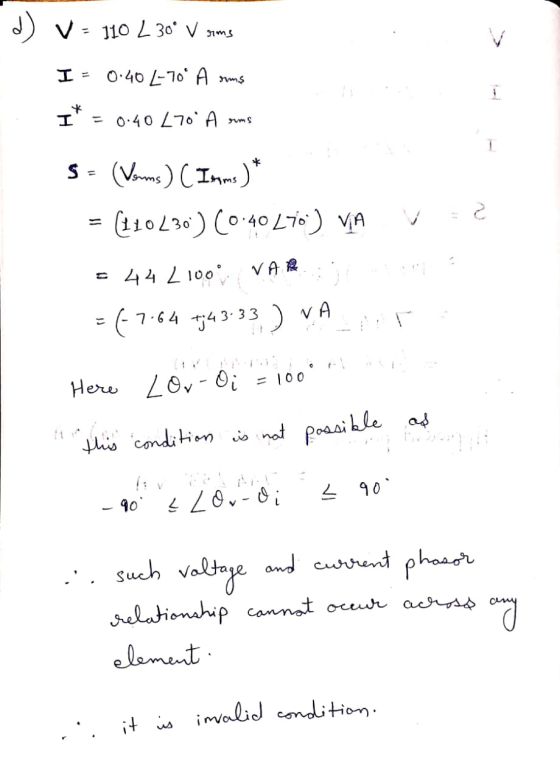

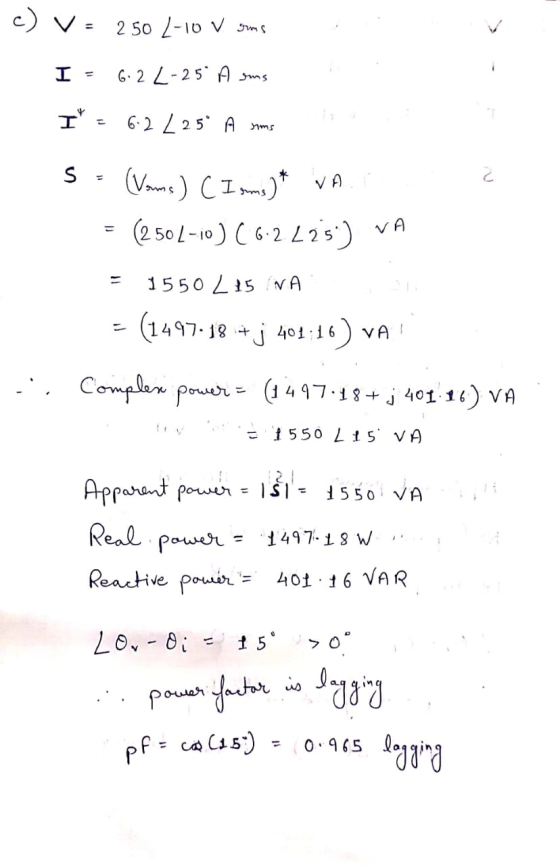

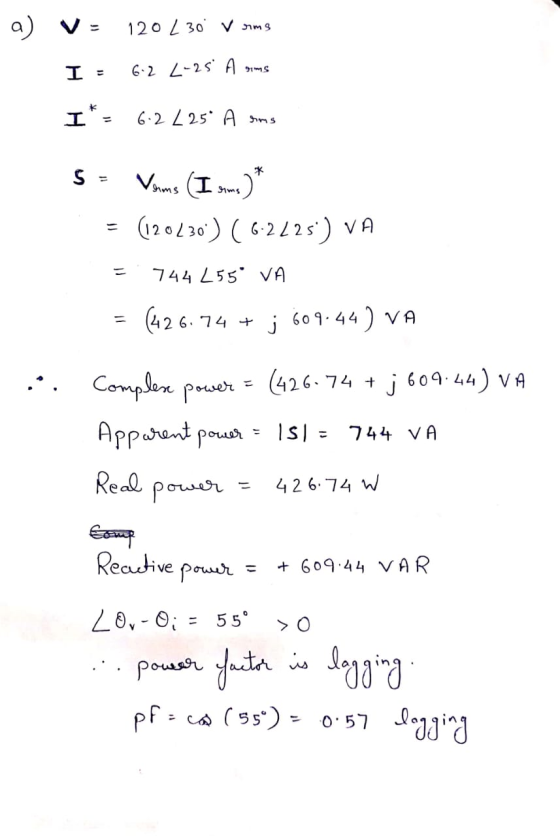

Given below is the solution of all the five parts-



Hope this answer would help!
Q1. AC Power Calculation 1. For the following voltage and current phasors, calculate the complex power,...
For the following voltage and current phasors, calculate the complex power, apparent power, real power, and reactive power. Determine whether the power factor is leading or lagging. V = 260 230 Vrms, I0.5260 Arms The value of apparent power is VA The value of real power is W. VAR. The value of reactive power is The power factor is Click to select B
15. (15 Points) For the following RMS voltage and current, answer the following questions: Voltage is given by v(t) = 12 cos(2t +30°) Current is i(t) = 4 cos (2t +10°) a. What is the Average power? b. What are the Phasors of each? c. What is the Complex Power? d. What is the Reactive Power? e. What is the Power Factor? BONUS 1. (5 Points) If an AC circuit has a current lagging the voltage, what type of circuit...
111-find the magnitude and phase of the impedance where V=(16+j8)V and current =(3-j12)A 111b-An ac power system has the following loads connected: load1=400W at 0,8pf lagging,Load 2=200VAr at pf 0,8 lagging and load 3=250VA at 0,70pf lagging calculate the total active power, reactive power and apparent power for the given ac power system
QUESTION 4: AC POWER - PF CORRECTION points) The voltage and current for a load Z are given by Vrms = 120290° and IRMS = 40230 Volts and Amps respectively; F-60 Hz. Do the following: • Determine the load Z6 • Determine the PF • State whether this is a leading/lagging PF. • Determine the Power delivered to the Load (Watts) • Sketch the power triangle and include all relevant information (quantities, units etc.) • What type of element must...
IW_L05_ELE211 Q.1. Determine the reactive power, true power, PF & apparent power in the following circuit RMS f 10 kHz Q.2. Determine the series element or elements that must be installed in the block of the figure below to meet the following requirements Ptrur-400W and there's a leading PF rms 10020 V 1 kHz
Using rms values to represent their magnitudes, the voltage across and the current into a load are as follows in phasor form: v - Ve/o° and I -le-i Show that the instantaneous power p() v)i(t) can be written as pt) PP cos 2Q sin 2ut, where average power cos φ and reactive power Q-VI sin φ if I'= 120 V, 1-| A, and Φ = 30°, find the actual value of P. Q. S and power factor (PF). Is this...
solve fast please
help me
please faaaast
Q3: in the following figure find: 1. The power factor seen by the source 2- Apparent power, active power and reactive power for all loads 3- Is 1.5 kW -0.8 KVAR 1 S Load 2 200 290 V 21 5K VA 0.75 PF Leading 8K W 0.85 PF Lagging Load 1 Load 3
Solved: Find Vo in the network in x + /u/0/?tab=rm&ogbl#inbox?projector=1 7. (a) Use source superposition to find Vo in the following circuit: 12/ov +-120 2/AC) (b) An industrial load consumes 100 kW at 0.707 pflagging. The 60 H line voltage at the load is 480 4V rms. The transmission-line resistance between the power company transformer and the load is 0.1 22. Determine the power savings that could be obtained if the pf is changed to 0.96 logging 0.10 w 480...
(4) Three single-phase AC loads draw power from the same 12020으 kms source. Load 1 draws 120 w at a lagging PF of 0.75, Load 2 draws 75 VA at a leading PF of 0.6 and Load 3 draws 100 VA at a leading PF of 0.8. Determine the complex power consumed by each load. Calculate the rms current phasor for each load. a. b.
