Question

Ontario Building code 2012 refrences required

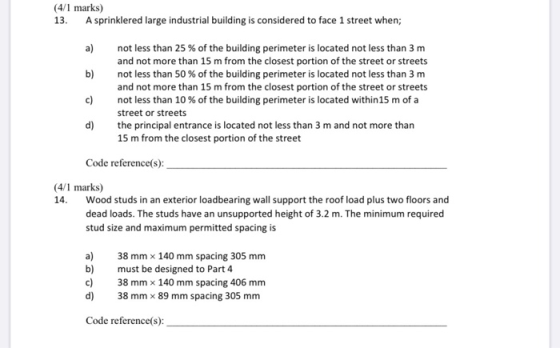

(4/1 marks) 13. A sprinklered large industrial building is considered to face 1 street when; not less than 25% of the building perimeter is located not less than 3 m and not more than 15 m from the closest portion of the street or streets not less than 50% of the building perimeter is located not less than 3 m and not more than 15 m from the closest portion of the street or streets not less than 10% of the building perimeter is located within 15 m of a street or streets the principal entrance is located not less than 3 m and not more than 15 m from the closest portion of the street Code reference(s): (4/1 marks) 14. Wood studs in an exterior loadbearing wall support the roof load plus two floors and dead loads. The studs have an unsupported height of 3.2 m. The minimum required stud size and maximum permitted spacing is a) b) 38 mm x 140 mm spacing 305 mm must be designed to Part 4 38 mm x 140 mm spacing 406 mm 38 mm x 89 mm spacing 305 mm Code reference(s):

Answer 1

13. Option c is correct.

Code reference (s): Ontario building code 2012 3.2.2.10

A building within the scope of Article

3.2.2.43A or 3.2.2.50A is considered

to face one street provided that not less

than 10% of the building perimeter is

Located with in 15m of a street or streets.

14. Option a is correct.

Code reference:. Section 9 . Article 9.23.10.3 Table A30 to A33
