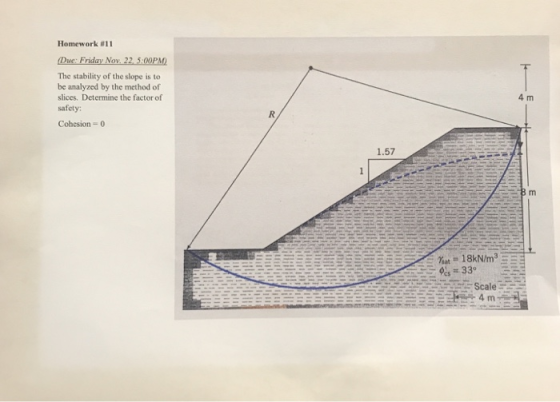

Homework 811 (Due: Friday Nov. 22 5:00PM The stability of the slope is to be analyzed...
Question 1 A slope with angle B -45, H = 9 m, cohesion c =20 kN/m²,...
Question 1 A slope with angle B -45, H = 9 m, cohesion c =20 kN/m², 0=25, y = 17 kN/m is to be constructed; Find; 1- The critical height of the slope. 2- The factor of safety so that Fc = FØ =F (Hint: Taylors stability number) Question 2 A slope of height H=12 m, ß = 50°, r=18 kN/m', c=30 kN/m², Ø = 25° Find the factor of safety using; 1- Ordinary method of slices. 2- Bishop's simplified...
Homework 13 Due: 12/03/2018 Name 1 of 1 CVE3715 Problem 1: For the slope shown below,...
Homework 13 Due: 12/03/2018 Name 1 of 1 CVE3715 Problem 1: For the slope shown below, determine the factor of safety against sliding along the circular slip surface AC. Use the ordinary method of slices 27 m 7.5 m BV C 21 m y 19 kN/m3 c'-31 kN/m2 4 240 A30
A Hydraulic Pump Due this Friday, Nov 13 at 11:59 pm (EST) Piston 1 in the...
A Hydraulic Pump
Due this Friday, Nov 13 at 11:59 pm (EST)
Piston 1 in the figure below has a diameter of 0.770 cm;
piston 2 has a diameter of 3.30 cm. In the absence of friction,
determine the force required on piston 1 necessary to support an
object, m, with weight 840 N. (Neglect the height difference
between the bottom of the two pistons, and assume that the pistons
are massless).
Tries 0/10
What is the magnitude of the...
4) A large slope is constructed as shown in the figure below. A failure surface is...
4) A large slope is constructed as shown in the figure below. A failure surface is considered passing through the crest and the toe of the slope. The soil properties are y= 18 kN/m2, c 0 kPa and =25°. The water table is well below the ground surface Using the theory for the stability of an infinite slope, estimate the factor of safety. [5 а. marks] b. Use Fellenius' method to determine the Factor of Safety against failure. [13 marks]...
Homework #6.3, Math 111, Due Friday, November 22. Complete the problems on a separate sheet of...
Homework #6.3, Math 111, Due Friday, November 22. Complete the problems on a separate sheet of paper. Answer in complete sentences, and show your work when necessary. Make a copy for your notes. 9.3 Polar Coordinates There is a very specific set of parametric curves that is worth diving into: polar coordinates. Basically it makes circular things easier to formulate. 1. Write the two sets of equations for converting Cartesian to polar and vice versa. 1. I= y= 2. p2...
Hydrology ENV 321 Homework #1 Due: Friday, September 6 at 1:00pm 1. Convert (show all conversion...
Hydrology ENV 321 Homework #1 Due: Friday, September 6 at 1:00pm 1. Convert (show all conversion steps for full credit; convert only one unit for cach step as demonstrated in class): a) acre-feet/day to mgd (mgd is million gallons per day] b) cfs to cms c) inches/hr rainfall to mm/day rainfall d) short tons/acre-day to Mg/hectare-year [Mg is megagrams e) inches"F to cm/ C [be careful, this one may trick you] 2. Define the hydrologic cycle component and indicate how...
7:22 PM Sat Nov 9 9%D < > m dalton.chem.sfu.ca Ć + a Toronto Fl... CHEM121......
7:22 PM Sat Nov 9 9%D < > m dalton.chem.sfu.ca Ć + a Toronto Fl... CHEM121... Can I canc... PayPal: Ac... Urban Out... Lewis D... clo2- lewis... Timer Notes Evaluate Feedback Print Info Course Contents » ... » Due in 4 hours, 36 minutes 1 homework point(s) Lewis Diagrams Select only, and all of the drawings, shown below, which are acceptable Lewis diagrams for the species indicated. Br F F : Lewis structure of BrF3? OC— - C H Lewis...
Could you please 1.question ЕЕ211 Electromagnetic Field Theory 1 Homework 2 Due by 12th of Nov,...
Could you please 1.question
ЕЕ211 Electromagnetic Field Theory 1 Homework 2 Due by 12th of Nov, 2018 at 5 PM ANTALYA BILIM UNIVERSITY Homework 2 Q1. Given three vectors A, B, and C A-a +2a, -3a, Find (a) unit vector along A. (b) IA -BI (c) A.B (d) the angle between vectors A and B (e) The vector component of A in the direction of C. (f) AxC (g) A. (x C) and (A x B).C (h) (A x B)...
please answer all thank you Homework - State Loading Advanced (Part 2) A solid round 20...
please answer all thank you
Homework - State Loading Advanced (Part 2) A solid round 20 mm diameter hur is based as shown below, where the lead iP XOAN, the downward tr adise.SSAN, the lig h the is M-20 Nm, and the true lead is T-30 Nm. This results in certain stresses in the bar the base al Points located at the top of the har d ew from (located ISO w from 4-y il Decated 270cw from located in...
M es and Due Dates > Homework 1: Chapters 1,2,3 Homework 1: Chapt /5400 Resources Hint...
M es and Due Dates > Homework 1: Chapters 1,2,3 Homework 1: Chapt /5400 Resources Hint Ashley hypothesizes that adding coffee grounds to the soil will help the plants grow faster. She designs a controlled experiment to determine if this hypothesis is supported. She grows one group of soybean seedlings under normal conditions. She mixes three tablespoons of coffee grounds into the soil of the second group and grows the seedlings under the same light, temperature, and watering regimen. After...
Question 1 A slope with angle B -45, H = 9 m, cohesion c =20 kN/m², 0=25, y = 17 kN/m is to be constructed; Find; 1- The critical height of the slope. 2- The factor of safety so that Fc = FØ =F (Hint: Taylors stability number) Question 2 A slope of height H=12 m, ß = 50°, r=18 kN/m', c=30 kN/m², Ø = 25° Find the factor of safety using; 1- Ordinary method of slices. 2- Bishop's simplified...
Homework 13 Due: 12/03/2018 Name 1 of 1 CVE3715 Problem 1: For the slope shown below, determine the factor of safety against sliding along the circular slip surface AC. Use the ordinary method of slices 27 m 7.5 m BV C 21 m y 19 kN/m3 c'-31 kN/m2 4 240 A30
A Hydraulic Pump
Due this Friday, Nov 13 at 11:59 pm (EST)
Piston 1 in the figure below has a diameter of 0.770 cm;
piston 2 has a diameter of 3.30 cm. In the absence of friction,
determine the force required on piston 1 necessary to support an
object, m, with weight 840 N. (Neglect the height difference
between the bottom of the two pistons, and assume that the pistons
are massless).
Tries 0/10
What is the magnitude of the...
4) A large slope is constructed as shown in the figure below. A failure surface is considered passing through the crest and the toe of the slope. The soil properties are y= 18 kN/m2, c 0 kPa and =25°. The water table is well below the ground surface Using the theory for the stability of an infinite slope, estimate the factor of safety. [5 а. marks] b. Use Fellenius' method to determine the Factor of Safety against failure. [13 marks]...
Homework #6.3, Math 111, Due Friday, November 22. Complete the problems on a separate sheet of paper. Answer in complete sentences, and show your work when necessary. Make a copy for your notes. 9.3 Polar Coordinates There is a very specific set of parametric curves that is worth diving into: polar coordinates. Basically it makes circular things easier to formulate. 1. Write the two sets of equations for converting Cartesian to polar and vice versa. 1. I= y= 2. p2...
Hydrology ENV 321 Homework #1 Due: Friday, September 6 at 1:00pm 1. Convert (show all conversion steps for full credit; convert only one unit for cach step as demonstrated in class): a) acre-feet/day to mgd (mgd is million gallons per day] b) cfs to cms c) inches/hr rainfall to mm/day rainfall d) short tons/acre-day to Mg/hectare-year [Mg is megagrams e) inches"F to cm/ C [be careful, this one may trick you] 2. Define the hydrologic cycle component and indicate how...
7:22 PM Sat Nov 9 9%D < > m dalton.chem.sfu.ca Ć + a Toronto Fl... CHEM121... Can I canc... PayPal: Ac... Urban Out... Lewis D... clo2- lewis... Timer Notes Evaluate Feedback Print Info Course Contents » ... » Due in 4 hours, 36 minutes 1 homework point(s) Lewis Diagrams Select only, and all of the drawings, shown below, which are acceptable Lewis diagrams for the species indicated. Br F F : Lewis structure of BrF3? OC— - C H Lewis...
Could you please 1.question
ЕЕ211 Electromagnetic Field Theory 1 Homework 2 Due by 12th of Nov, 2018 at 5 PM ANTALYA BILIM UNIVERSITY Homework 2 Q1. Given three vectors A, B, and C A-a +2a, -3a, Find (a) unit vector along A. (b) IA -BI (c) A.B (d) the angle between vectors A and B (e) The vector component of A in the direction of C. (f) AxC (g) A. (x C) and (A x B).C (h) (A x B)...
please answer all thank you
Homework - State Loading Advanced (Part 2) A solid round 20 mm diameter hur is based as shown below, where the lead iP XOAN, the downward tr adise.SSAN, the lig h the is M-20 Nm, and the true lead is T-30 Nm. This results in certain stresses in the bar the base al Points located at the top of the har d ew from (located ISO w from 4-y il Decated 270cw from located in...
M es and Due Dates > Homework 1: Chapters 1,2,3 Homework 1: Chapt /5400 Resources Hint Ashley hypothesizes that adding coffee grounds to the soil will help the plants grow faster. She designs a controlled experiment to determine if this hypothesis is supported. She grows one group of soybean seedlings under normal conditions. She mixes three tablespoons of coffee grounds into the soil of the second group and grows the seedlings under the same light, temperature, and watering regimen. After...
