please make it clear thanks

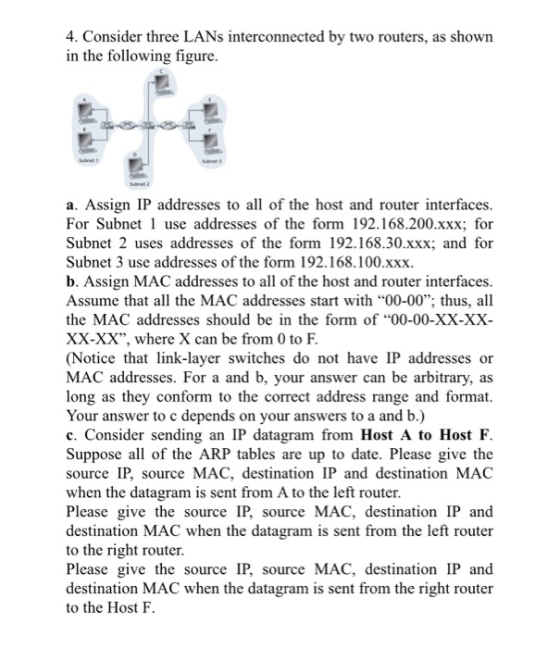

4. Consider three LANs interconnected by two routers, as shown in the following figure. a. Assign IP addresses to all of the
engineering   Computer-Science
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

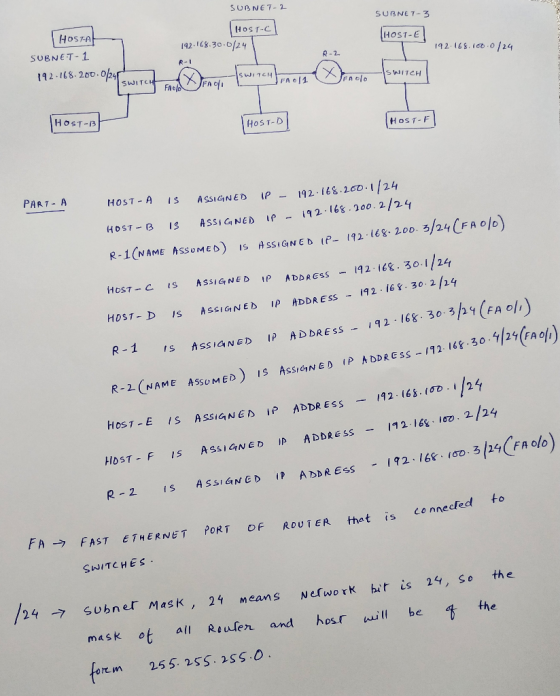

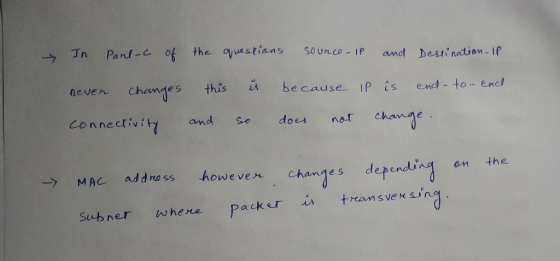

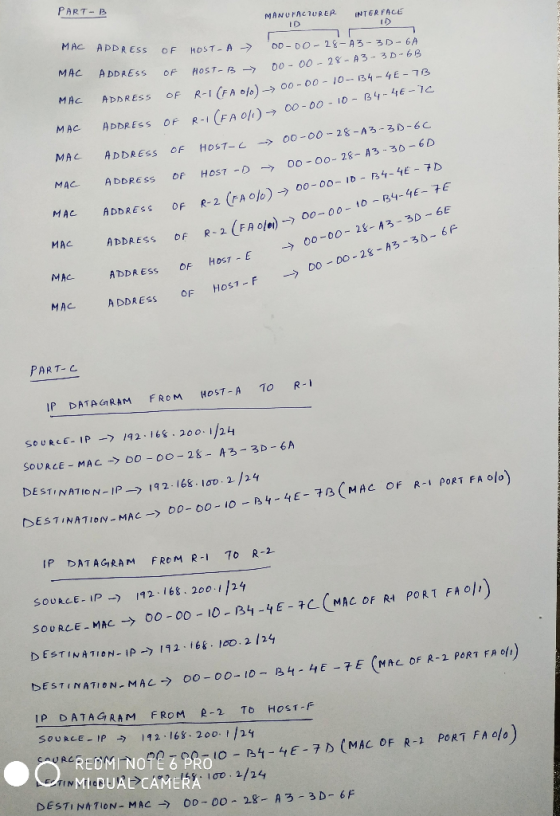

SUBNE 7-3 SUBNE 7-2 Host.cl 192.168.30.0/24 R-1 HOSTA SUBNET-1 THOST-E 192.168.100.0/24 R-2 19:45 20.opponent way, tumeumis OPART-B MANUFACTURER INTERFACE ID D ADDRESS OF HOST - A -> DD-DO - 28-A3 - 3D - 6A ADDRESS OF HOST-B- 00-00 - 28-A3 - 3D-6B ADIn Parl-c of the questions source-il and Destination-ip never changes connectivity this and is because Ip is end-to-end so doIP works in layer 3(Network layer) which is end to end while MAC(media access control) works in layer 2(Data link Layer) which is local to the subnet where packets are being sent.

0 0
