Question

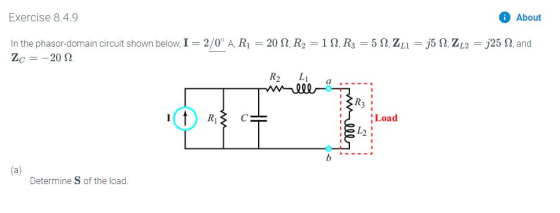

About Exercise 8.4.9 In the phasor-domain circuit shown below. I-2/0° A, R1 -20 Ω, R2 1 Ω. R3 5 Ω.ZLI-JD Ω, ZL2-125 Ω, and R2

0 0
Add a comment Improve this question Transcribed image text
Answer #1

ร์ 20 1-520 , 525 N: 33.76650 v 6 +i30 31,092138, 69 VA

Add a comment
Know the answer?
Add Answer to:
About Exercise 8.4.9 In the phasor-domain circuit shown below. I-2/0° A, R1 -20 Ω, R2 1...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • Q3. In the circuit as shown below, given that R1 = 4 Ω, R2-4 Ω, L...

    Q3. In the circuit as shown below, given that R1 = 4 Ω, R2-4 Ω, L 2 H, and C = 0.5 F, where vs(t) is given by the waveform displayed in the same figure 1 V (a) Determine the s-domain current I(so) at so-0.05 jo.07 (rad/s): IL(So)- Submit Answer Tries 0/3 (b) Determine the t-domain current i(to) at to 4.5 (s): Submit Answer Tries 0/8 Q4. Determine the output voltage in the circuit as shown below, given that Vs-35*u(t)...

  • 8.31 In the phasor-domain circuit shown in Fig, P8.31 Zr = j2 and Zload =6+/4 Ω....

    8.31 In the phasor-domain circuit shown in Fig, P8.31 Zr = j2 and Zload =6+/4 Ω. Determine the complex power of the load. Ri ZL R2 Zload 21 0 Figure P8.31: Circuit for Problem 8.31.

  • 8.22 In the phasor-domain shown in Fig. P8.22, V = 120/0° V, I = 0.3/30° A,...

    8.22 In the phasor-domain shown in Fig. P8.22, V = 120/0° V, I = 0.3/30° A, a = 1000 rad/s, R1 = 200 92, R2 = 200 S2, R3 = 1.2 ks2, L= 0.2 H, and C = 10 uF. Determine the complex power for each passive element, and verify that conservation of energy is satisfied. in hinde Figure P8.22: Circuit for Problem 8.22.

  • For the circuit shown below, R1=15 Ω, R2=20 Ω, R3=30 Ω, and Vbattery=18 V. Which of...

    For the circuit shown below, R1=15 Ω, R2=20 Ω, R3=30 Ω, and Vbattery=18 V. Which of the following expressions correctly gives the equivalent resistance of the circuit?                  What is the voltage across each resistor? R Vbattery R2 R₂

  • For the circuit shown, R1 = 2.30 Ω, R2 = 2.00 Ω, R3 = 1.60 Ω,...

    For the circuit shown, R1 = 2.30 Ω, R2 = 2.00 Ω, R3 = 1.60 Ω, R4 = 1.45 Ω, R5 = 1.85 Ω, and Vab = 2.60 V. Find ℰ. R1 R2 Ra R 5 a R 2-V

  • For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain...

    For the circuit shown below: In terms of Vo, R1, R2, R3, R4, C1, t, and s what is the time domain equation for the voltage at node out? Preview In terms of Vo, R1, R2, ,R3, R4, C1, t, and s what is the s-domain equation for voltage at node out? In terms of Vo, RI, R2, R3, R4, CI, t, and s what is the equation for τ? If the voltage V1 at time-0 is 1 V R1-1...

  • Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω ,...

    Consider the circuit shown below. Where R1 = 30 Ω , R2 = 40 Ω , and R3 = 90 Ω . When a battery with unknown voltage is hooked up between points A and B, the current through the resistor R1 is I1 = 0.050 A What is the voltage across R3? What is the current through the resistor R3? What is the total current produced by the battery hooked between points A and B? What is the voltage...

  • In the circuit below, R1-42 Ω R2-82 Ω R3-137 Ω R4 43 Ω R5-219 Ω and...

    In the circuit below, R1-42 Ω R2-82 Ω R3-137 Ω R4 43 Ω R5-219 Ω and the voltage supplied by the power supply is V1 R1 R2 R5 R3 R4 What is the current flowing through resistor R1? Submit Answer Tries 0/20 What is power dissipated by resistor R1? Submit Answer Tries 0/20

  • In the circuit below, R1 = 83 Ω, R2 = 116 Ω, R3 = 119 Ω,...

    In the circuit below, R1 = 83 Ω, R2 = 116 Ω, R3 = 119 Ω, R4 = 52 Ω, R5 = 247 Ω and the voltage supplied by the power supply is V1 = 76 V. 1. What is the voltage drop across resistor R2? (in V) 2. What is the voltage drop across restore R3? (in V) Course Contents > Practice exam ... In the circuit below, R1 = 83 2, F R2 R5 AAA WY R4 What...

  • Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit a...

    Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1: 23 Ω, R2° 13 O, R,-230, R4% 3 Ω. RS: 28 Ω , RL: 13 Ω ,Vs-90 . I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice 1 Submit Answer Tries 0/3 (b) Determining the load current I following from a to b for the...
