I NEED THE MATLAB CODE NOT THE ANALYTICAL SOLUTION !!!!Homework Answers
Hello,
Please find
the answer attached as under. Please give a thumbs up
rating if you find the answer useful! Have a rocking day
ahead!
****************** Matlab Code *******************
%%%%%%%%%%%%%%%%%%%%%%
%% solving differential equations
syms y(t)
Dy = diff(y);
ode = diff(y,t,2)+5*diff(y,t)+6 == exp(-t)*sin(10*t);
cond1 = y(0) == 1;
cond2 = Dy(0) == 2;
conds = [cond1 cond2];
ySol(t) = dsolve(ode,conds);
ySol = simplify(ySol);
ezplot(ySol(t))
xlabel('Time(s)');
************ End of Code **************
Output:
y = 191/2525 - (953*exp(-5*t))/1450 - (15*cos(10*t)*exp(-t))/5858 - (26*sin(10*t)*exp(-t))/2929 - (6*t)/5

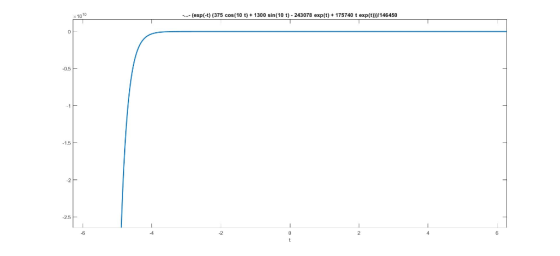

Plot:
*****************************************************************
PS: Please do not forget the thumbs
up!
Add Answer to:
I NEED THE MATLAB CODE NOT THE ANALYTICAL SOLUTION !!!!

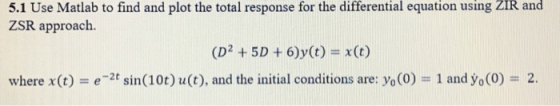

using ZIR and 5.1 Use Matlab...
