Question

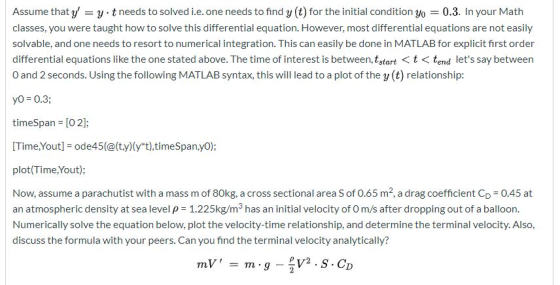

Assume that y' = y.t needs to solved i.e.one needs to find y(t) for the initial condition yo = 0.3. In your Math classes, you were taught how to solve this differential equation. However, most differential equations are not easily solvable, and one needs to resort to numerical integration. This can easily be done in MATLAB for explicit first order differential equations like the one stated above. The time of interest is between tstart <t <tend let's say between O and 2 seconds. Using the following MATLAB syntax, this will lead to a plot of the y(t) relationship: yo = 0.3; timeSpan = [02]; [Time, Yout] = ode45(@(t.y)(y*t),time Span,yo): plot(Time, Yout); Now, assume a parachutist with a mass m of 80kg, a cross sectional area of 0.65 m², a drag coefficient Cp = 0.45 at an atmospheric density at sea level p = 1.225kg/m has an initial velocity of O m/s after dropping out of a balloon. Numerically solve the equation below, plot the velocity-time relationship, and determine the terminal velocity. Also, discuss the formula with your peers. Can you find the terminal velocity analytically? mV' = m.g-V.S.Cd

Answer 1

`Hey,

Note: Brother if you have any queries related the answer please do comment. I would be very happy to resolve all your queries.

clc%clears screen
clear all%clears history
close all%closes all files
m=80;
S=0.65;
g=9.81;
Cd=0.45;
p=1.225;
f=@(t,v) (m*g-p/2*v^2*S*Cd)/m;
[T,V]=ode45(f,[0,25],0);
plot(T,V);
disp('Terminal velocity is');
disp(V(end));

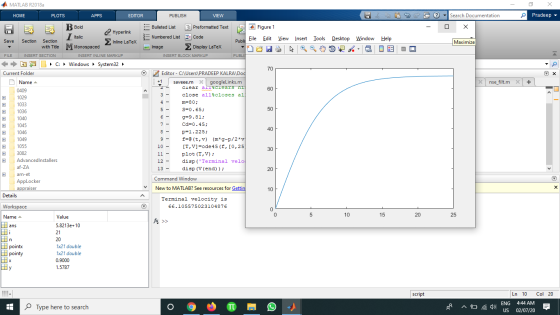

- X Pradeep PUBLISH VIEW O E É C E Search Documentation - OX Bulleted List Preformatted Text Numbered List Code Image Display Latex INSERT BLOCK MARKUP Figure 1 Publise Eile Edit View Ha Insert Desktop Window Tools a Help IE Maximize I PUBLIE a X xnse_filt. mx + 1 MATLAB R2018 HOME PLOTS APPS EDITOR B Bold Hyperlink Italic Save Section Section Inline Latex with Title M Monospaced 4 FILE INSERT SECTION INSERT INLINE MARKUP ba : Windows System32 Current Folder Name 0409 1029 1033 1036 1040 1045 1046 1049 1055 3082 Advancedinstallers af-ZA am-et AppLocker appraiser Details 7 Editor - C:\Users\PRADEEP KALRA Dod +1 saveee.m X googleLinks.m clear all clears ni close all closes all m=80; S=0.65; g=9.81; Cd=0.45; p=1.225; f=@(t,v) (m*g-p/2*v [T,V]=ode 45 (F, [0,25 plot (T,V); disp('Terminal velo disp (V(end)) ; Command Window New to MATLAB? See resources for Gettin IIIIIIIIIII Terminal velocity is 66.105575023104876 Workspace 5 10 15 20 25 Name Hans Value 5.8213e+10 fx >> an pointi H pointy 1x21 double 1x21 double 0.9000 1.5787 Hy script In 10 Col 20 ENG 4:44 AM E US 02/07/20 Type here to search "

Kindly revert for any queries

Thanks.
