Homework Answers

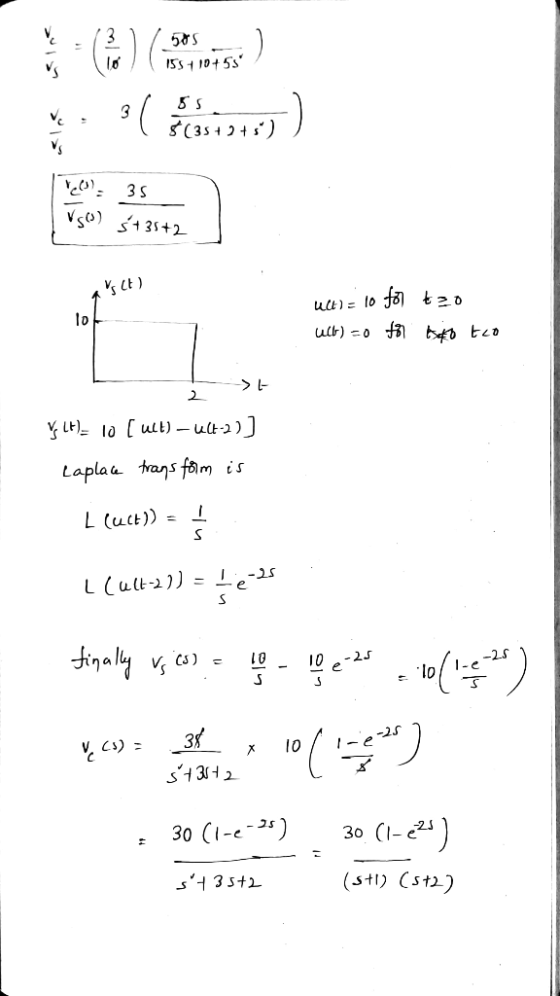

![585 I551 10+55 Ś(354345) Vso) s+35+2 ut) = 10 f3) tzo 1o Ý Lt)= 10 [ ult) – ult-2)] Laplau trans foim is ī = ((1)7) 7 L (ult-](http://img.homeworklib.com/questions/c020bee0-a842-11ea-bc51-5965f02fcaa3.png?x-oss-process=image/resize,w_560)
Add Answer to:

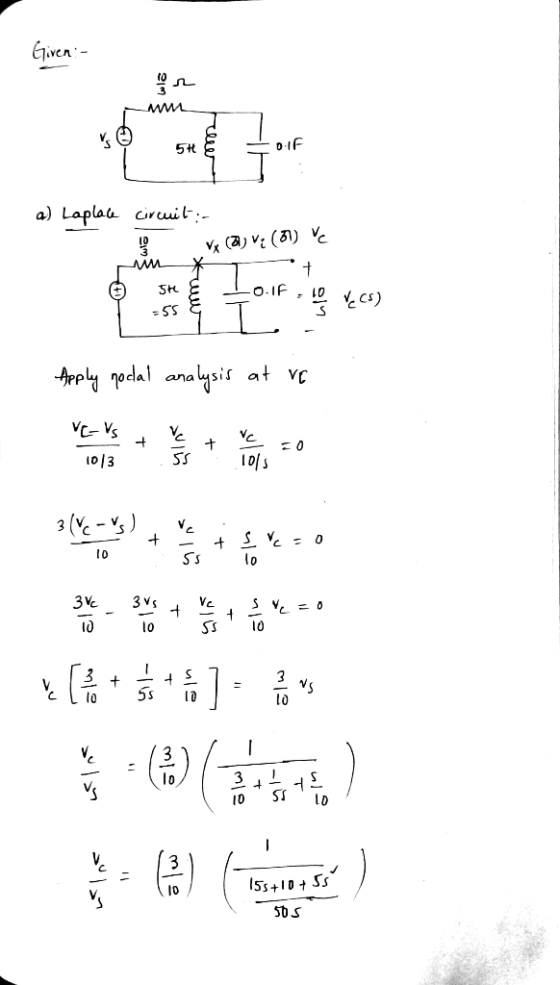

also, please solve for Vc(t) using laplace transforms

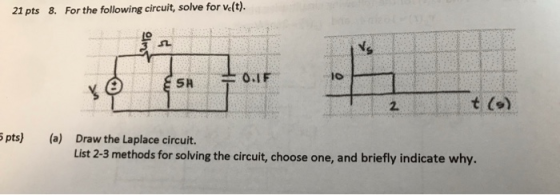

For the following circuit, solve for ve(t). 21...
6: In the circuit shown in Figure-6, input voltage of 15V de was switched ON at t-o. (a) Convert the circuit its Laplace equivalent at t >0, if ILO)-2A and vc (0)-6V. b) Find the capacitor voltage...
6: In the circuit shown in Figure-6, input voltage of 15V de was switched ON at t-o. (a) Convert the circuit its Laplace equivalent at t >0, if ILO)-2A and vc (0)-6V. b) Find the capacitor voltage, Ve (s) in the frequency domain (c) Solve Ve (t) in the time domain. Switch L= 5H t-o 15V (0 ) = 2A V (o =6V 0.1F
6: In the circuit shown in Figure-6, input voltage of 15V de was switched ON at...
Q4. Laplace Transforms a) (20 points) Solve the differential equation using Laplace transform methods y" +...
Q4. Laplace Transforms a) (20 points) Solve the differential equation using Laplace transform methods y" + 2y + y = t; with initial conditions y(0) = y(O) = 0 |(s+2) e-*) b) (10 points) Determine L-1 s? +S +1
please make sure u solve in clear steps and 100% correct 4. (21 pts) Laplace Transforms...
please make sure u solve in clear steps and 100% correct
4. (21 pts) Laplace Transforms of ODE-A mechanical system has the following 2nd order differential equation describing its position x(t): d+x(e) – 4 dx(t) + 4x(t) = 0. The initial conditions are: x'= 3.9m/s and x(@) = 2.1m a. (3 pts) Convert the differential equation into the s-domain. Substitute in the initial conditions as needed XCS/ dt2dt
1) (40 pts total) Solving and order ODE using Laplace Transforms: Consider a series RLC circuit...
1) (40 pts total) Solving and order ODE using Laplace Transforms: Consider a series RLC circuit with resistor R, inductor L, and a capacitor C in series. The same current i(t) flows through R, L, and C. The voltage source v(t) is removed at t=0, but current continues to flow through the circuit for some time. We wish to find the natural response of this series RLC circuit, and find an equation for i(t). Using KVL and differentiating the equation...
Solve the system of equations with Laplace Transforms: (differential equations) all parts please Solve the system...
Solve the system of equations with Laplace Transforms:
(differential equations)
all parts please
Solve the system of equations with Laplace Transforms: x' + y' = 1, x(0) = y(0) = x'(0) = y'(0) = 0. y" = x' Let X(s) = LT of x(t) and Y(s) = LT of y(1). First obtain expressions for X(s) and Y(s) and list them in the form ready for obtaining their inverses. a. Y(s) = X(s) = %3D b. Now obtain the inverse transforms....
2. Use the methods of Laplace transforms to solve the initial value problem y" – yr...
2. Use the methods of Laplace transforms to solve the initial value problem y" – yr e-t sin 2t, y(0) = 0, y'(O) = 0.
Solve the initial value problem below using the method of Laplace transforms. w" - 2w' +...
Solve the initial value problem below using the method of Laplace transforms. w" - 2w' + w=5t +6, W( - 2) = 4, w'(-2) = 8 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. w(t) = (Type an exact answer in terms of e.)
Show work please (1 point) Use Laplace transforms to solve the integral equation y(t) – v...
Show work please
(1 point) Use Laplace transforms to solve the integral equation y(t) – v yết – U) do = 4. The first step is to apply the Laplace transform and solve for Y(s) = L(y(t)) Y(s) = Next apply the inverse Laplace transform to obtain y(t) y(t) =
Question (2): Laplace Transforms a) Find the Laplace Transform of the following using the Laplace Transform...
Question (2): Laplace Transformsa) Find the Laplace Transform of the following using the Laplace Transform table provided in the back:$$ f(t)=\frac{1}{4}\left(3 e^{-2 t}-8 e^{-4 t}+9 e^{-6 t}\right) u(t) $$b) Find the inverse Laplace Transform \(F(s)\) of the following function \(f(t)\) using the table:$$ f(t)=\frac{12 s^{2}(s+1)}{\left(8 s^{2}+5 s+800\right)(s+5)^{2}(10 s+8)} $$
Solve the given initial value problem using the method of Laplace transforms. y'' + 3y' +2y...
Solve the given initial value problem using the method of Laplace transforms. y'' + 3y' +2y = tu(t-3); y(0) = 0, y'(0) = 1 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Solve the given initial value problem. y(t) = | Properties of Laplace Transforms L{f+g} = £{f} + L{g} L{cf} = CL{f} for any constant £{e atf(t)} (s) = L{f}(s-a) L{f'}(s) = sL{f}(s) – f(0) L{f''}(s) =...
6: In the circuit shown in Figure-6, input voltage of 15V de was switched ON at t-o. (a) Convert the circuit its Laplace equivalent at t >0, if ILO)-2A and vc (0)-6V. b) Find the capacitor voltage, Ve (s) in the frequency domain (c) Solve Ve (t) in the time domain. Switch L= 5H t-o 15V (0 ) = 2A V (o =6V 0.1F
6: In the circuit shown in Figure-6, input voltage of 15V de was switched ON at...
Q4. Laplace Transforms a) (20 points) Solve the differential equation using Laplace transform methods y" + 2y + y = t; with initial conditions y(0) = y(O) = 0 |(s+2) e-*) b) (10 points) Determine L-1 s? +S +1
please make sure u solve in clear steps and 100% correct
4. (21 pts) Laplace Transforms of ODE-A mechanical system has the following 2nd order differential equation describing its position x(t): d+x(e) – 4 dx(t) + 4x(t) = 0. The initial conditions are: x'= 3.9m/s and x(@) = 2.1m a. (3 pts) Convert the differential equation into the s-domain. Substitute in the initial conditions as needed XCS/ dt2dt
1) (40 pts total) Solving and order ODE using Laplace Transforms: Consider a series RLC circuit with resistor R, inductor L, and a capacitor C in series. The same current i(t) flows through R, L, and C. The voltage source v(t) is removed at t=0, but current continues to flow through the circuit for some time. We wish to find the natural response of this series RLC circuit, and find an equation for i(t). Using KVL and differentiating the equation...
Solve the system of equations with Laplace Transforms:
(differential equations)
all parts please
Solve the system of equations with Laplace Transforms: x' + y' = 1, x(0) = y(0) = x'(0) = y'(0) = 0. y" = x' Let X(s) = LT of x(t) and Y(s) = LT of y(1). First obtain expressions for X(s) and Y(s) and list them in the form ready for obtaining their inverses. a. Y(s) = X(s) = %3D b. Now obtain the inverse transforms....
2. Use the methods of Laplace transforms to solve the initial value problem y" – yr e-t sin 2t, y(0) = 0, y'(O) = 0.
Solve the initial value problem below using the method of Laplace transforms. w" - 2w' + w=5t +6, W( - 2) = 4, w'(-2) = 8 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. w(t) = (Type an exact answer in terms of e.)
Show work please
(1 point) Use Laplace transforms to solve the integral equation y(t) – v yết – U) do = 4. The first step is to apply the Laplace transform and solve for Y(s) = L(y(t)) Y(s) = Next apply the inverse Laplace transform to obtain y(t) y(t) =
Question (2): Laplace Transformsa) Find the Laplace Transform of the following using the Laplace Transform table provided in the back:$$ f(t)=\frac{1}{4}\left(3 e^{-2 t}-8 e^{-4 t}+9 e^{-6 t}\right) u(t) $$b) Find the inverse Laplace Transform \(F(s)\) of the following function \(f(t)\) using the table:$$ f(t)=\frac{12 s^{2}(s+1)}{\left(8 s^{2}+5 s+800\right)(s+5)^{2}(10 s+8)} $$
Solve the given initial value problem using the method of Laplace transforms. y'' + 3y' +2y = tu(t-3); y(0) = 0, y'(0) = 1 Click here to view the table of Laplace transforms. Click here to view the table of properties of Laplace transforms. Solve the given initial value problem. y(t) = | Properties of Laplace Transforms L{f+g} = £{f} + L{g} L{cf} = CL{f} for any constant £{e atf(t)} (s) = L{f}(s-a) L{f'}(s) = sL{f}(s) – f(0) L{f''}(s) =...
