For the circuit below, calculate the resistance between nodes: (1) a and b (Ra-b) (2) a...

Question

Question

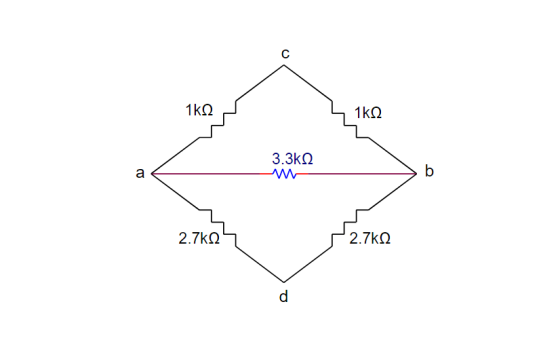

For the circuit below, calculate the resistance between nodes:

(1) a and b (Ra-b)

(2) a and c (Ra-c)

(3) c and d (Rc-d)

1kΩ 1kΩ - -_1kΩ 3.3kΩ εγκα 2.7kΩ 2.7kΩ

engineering Electrical-Engineering

Answer 1
