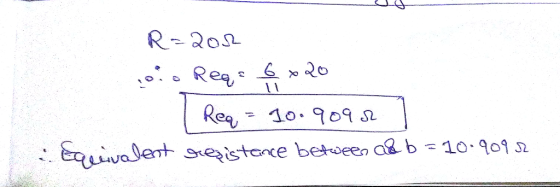

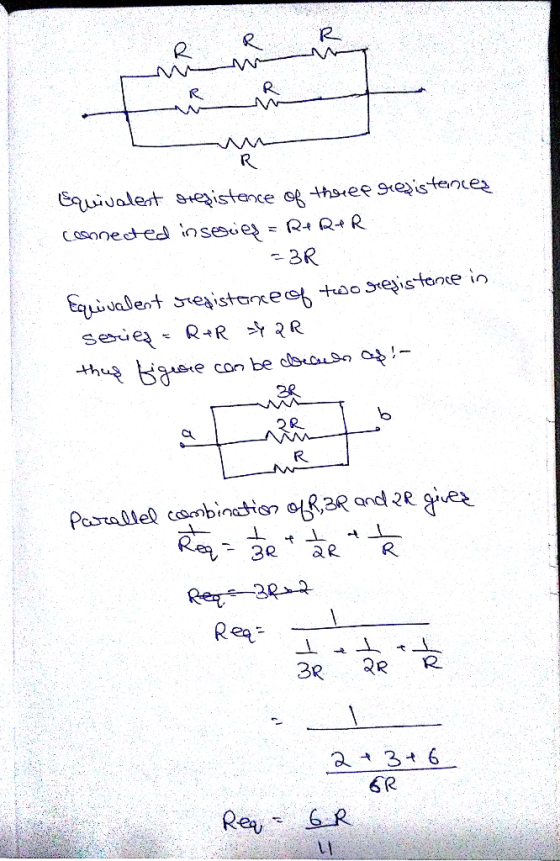

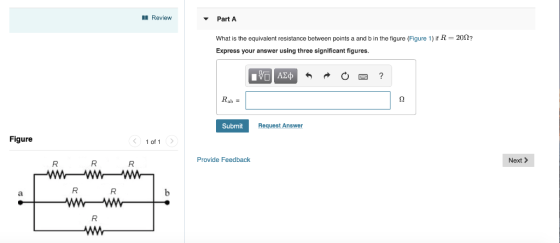

What is the equivalent resistance between points a and b in the figure (Figure 1) if R=20Ω?
Express your answer using three significant figures.
Homework Answers
Add Answer to:
What is the equivalent resistance between points a and b in the figure (Figure 1) if R=20Ω?
What is the equivalent resistance between points a and b in the figure(Figure 1) ? Express your...
What is the equivalent resistance between points a and b in the figure(Figure 1) ? Express your answer using one significant figure.
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider R1...
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider R1 -2.1 Ω , R2 = 2.3 Ω . R3 = 1.5 Ω , R4 = 1.6 Ω . R5 = 5.9 Ω . and R6 = 6.462 Express your answer using two significant figures. Req -
Review Part A What is the equivalent resistance between points a and b in the figure...
Review Part A What is the equivalent resistance between points a and b in the figure (Figure 1) ΑΣ Figure 1 of 1 Submit Request Answer 10Ω 55Ω 4012 20Ω Provide Feedback 1012
What is the equivalent resistance of group (a) of resistors shown in the figure? (Figure 1)...
What is the equivalent
resistance of group (a) of resistors shown in the figure?
(Figure
1)
Express
your answer using two significant figures.
Req
=
?
Part
B
What is the equivalent
resistance of group (b) of resistors shown in the
figure?
Express
your answer using two significant figures.
Part A what is the equivalent resistance between ports a and b n the figure(Figure 1)IR=1200?...
Part A what is the equivalent resistance between ports a and b n the figure(Figure 1)IR=1200? re 1 of 1 lt Incorrect: Try Again: 3 attempts remaining R b Part A Suppose that R-1k0 and -3AP What is the time constant for the discharge of the capacitors in (Figure 1)2 Express your answer to two significant figures and include the appropriate units. Figure 1 of 1 0.012 X Incorrect: Try Again: 2 attempts remaining
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider Ri...
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider Ri - 411.R, 121. Ry - 39 1. R4 = 4.41 Rs = 791 and Rs = 5.722 Express your answer using two sinnificant in A w R, w RA R, R, B RO
What is the equivalent resistance between points a and b in the figure (Figure 1) ?
What is the equivalent resistance between points a and
b in the figure (Figure 1) ?
00 Sprint 8:27 PM Find the equivalent resistance between points A and B shown in the...
00 Sprint 8:27 PM Find the equivalent resistance between points A and B shown in the figure(Figure 1) Consider R1-1.9 Ω , R2 = 1.3 Ω , R3- 2.1Ω,R4 = 3.4 Ω , R5 = 4.5 Ω , and R6 = 6.0 Ω . Express your answer using two significant figures. I got 1.43 omhs but its says its wrong
(a) Find the equivalent resistance between points a and b in the figure. (R = 17.0...
(a) Find the equivalent resistance between points a and
b in the figure. (R = 17.0 Ω)
(b) Calculate the current in each resistor if a potential
difference of 58.0 V is applied between points a and
b.
I (4.00 Ω)
=
A
I (7.00 Ω)
=
A
I (17.0 Ω)
=
A
I (9.00 Ω)
=
A
Please answer all parts to A and B correctly!!!! Thank you so
much in advance!
Safari File Edit View History Bookmarks Window...
(a) Find the equivalent resistance between points a and b in the figure. (R=20.0Ω)
(a) Find the equivalent resistance between points a and b in the figure. (R=20.0Ω) (b) Calculate the current in each resistor if a potential difference of 40.0 V is applied between points a and b.
What is the equivalent resistance between points a and b in the figure(Figure 1) ? Express your answer using one significant figure.
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider R1 -2.1 Ω , R2 = 2.3 Ω . R3 = 1.5 Ω , R4 = 1.6 Ω . R5 = 5.9 Ω . and R6 = 6.462 Express your answer using two significant figures. Req -
Review Part A What is the equivalent resistance between points a and b in the figure (Figure 1) ΑΣ Figure 1 of 1 Submit Request Answer 10Ω 55Ω 4012 20Ω Provide Feedback 1012
What is the equivalent
resistance of group (a) of resistors shown in the figure?
(Figure
1)
Express
your answer using two significant figures.
Req
=
?
Part
B
What is the equivalent
resistance of group (b) of resistors shown in the
figure?
Express
your answer using two significant figures.
Part A what is the equivalent resistance between ports a and b n the figure(Figure 1)IR=1200? re 1 of 1 lt Incorrect: Try Again: 3 attempts remaining R b Part A Suppose that R-1k0 and -3AP What is the time constant for the discharge of the capacitors in (Figure 1)2 Express your answer to two significant figures and include the appropriate units. Figure 1 of 1 0.012 X Incorrect: Try Again: 2 attempts remaining
Find the equivalent resistance between points A and B shown in the figure(Figure 1). Consider Ri - 411.R, 121. Ry - 39 1. R4 = 4.41 Rs = 791 and Rs = 5.722 Express your answer using two sinnificant in A w R, w RA R, R, B RO
What is the equivalent resistance between points a and
b in the figure (Figure 1) ?
00 Sprint 8:27 PM Find the equivalent resistance between points A and B shown in the figure(Figure 1) Consider R1-1.9 Ω , R2 = 1.3 Ω , R3- 2.1Ω,R4 = 3.4 Ω , R5 = 4.5 Ω , and R6 = 6.0 Ω . Express your answer using two significant figures. I got 1.43 omhs but its says its wrong
(a) Find the equivalent resistance between points a and
b in the figure. (R = 17.0 Ω)
(b) Calculate the current in each resistor if a potential
difference of 58.0 V is applied between points a and
b.
I (4.00 Ω)
=
A
I (7.00 Ω)
=
A
I (17.0 Ω)
=
A
I (9.00 Ω)
=
A
Please answer all parts to A and B correctly!!!! Thank you so
much in advance!
Safari File Edit View History Bookmarks Window...
