Exercise with trajectories by drawing them for the following situations and insert the generated time-space diagrams...
- Exercise with trajectories by drawing them for the following situations and insert the generated time-space diagrams as your answer:

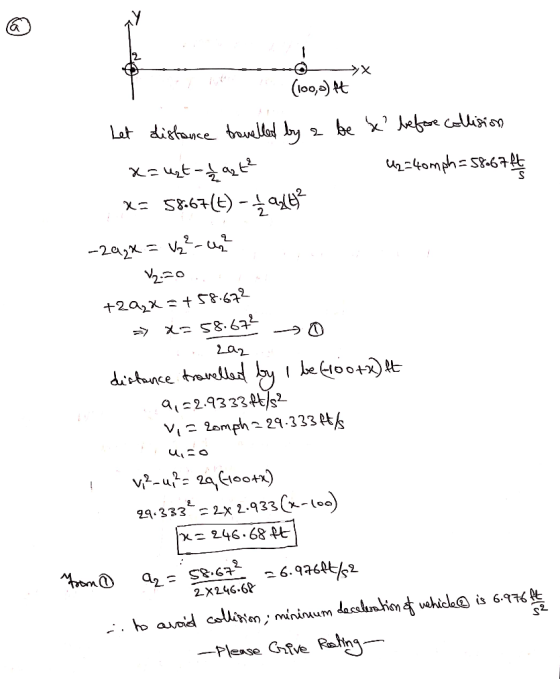

- Vehicle 1 starts at 100 ft location. Its speed is 20 mph and it is accelerating 2 mph/s. Vehicle 2 starts at 0 ft with the speed of 40 mph. What is the minimum deceleration for vehicle 2 to avoid collision with vehicle 1?
please show full work
