Consider a wet banked racetrack, where there is a coefficient of static friction of 0.28 and...
Consider a wet banked racetrack, where there is a coefficient of static friction of 0.28 and a coefficient of kinetic friction of 0.23 between the tires and the surface of the racetrack. The radius of the curve is 59.0 m .
A) If the banking angle is 31.0 degrees , what is the maximum speed the automobile can have before sliding up the banking? = 24.7 m/s

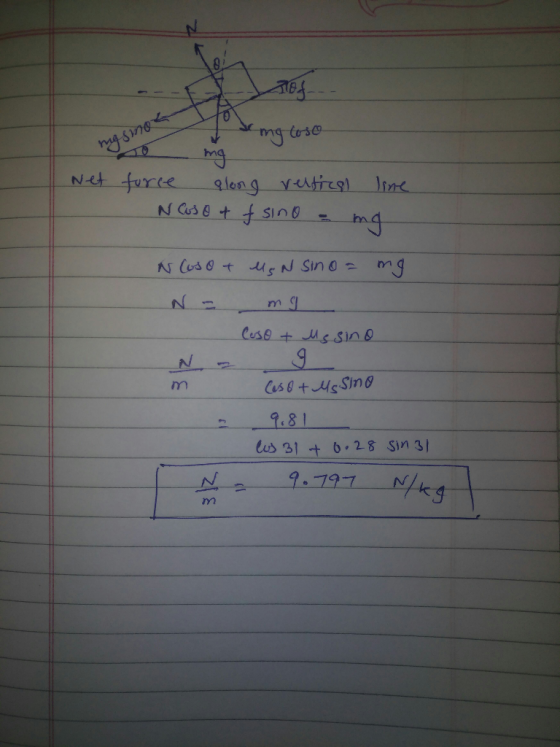

B) For the situation in Part (A), how big is the normal force on the car by the track, for each kg of mass of the car?
C) What is the minimum speed the automobile can have before sliding down the banking? = 12.6 m/s
D) For the situation in Part (C), how big is the normal force on the car by the track, for each kg of mass of the car?
I have already solved parts A and C I only need help with parts B and D.
Homework Answers
Add Answer to:
Consider a wet banked racetrack, where there is a coefficient of
static friction of 0.28 and...
Banked Racetrack Without Friction A puck is sliding around a circular track that is banked at...
Banked Racetrack Without Friction A puck is sliding around a circular track that is banked at an angle with respect to the horizontal such that no friction between the puck and the track is required to keep the puck from slipping up or down the track. If the puck is moving at a speed 30.9 m/s and the radius of the track is 405 m, determine θ. Suhmit Answer
a car is travelling on with speed v=72 km/h around a banked cure of diameter d=...
a car is travelling on with speed v=72 km/h around a banked cure of diameter d= 190 m calculate the following: a. the centripetal acceleration of the car. b.the banked angle to keep the car from sliding assume no friction. c.assume the curve is leveled horizontally , determine the coefficient of static friction to keep the car from sliding d.Calculate the centeripetal force at the given spedd on a car of mass, m=1000 kg and a truck of mass m=12500...
A car rounds a curve that is banked inward. The radius of curvature of the road...
A car rounds a curve that is banked inward. The radius of curvature of the road is R = 152 m, the banking angle is θ = 32°, and the coefficient of static friction is μs = 0.23. Find the minimum speed that the car can have without slipping.
A car travels around flat, un-banked, circular track with a maximum speed of 20 m/s. If...
A car travels around flat, un-banked, circular track with a maximum speed of 20 m/s. If the coefficient of friction between the car tires and the track is 1.0, and the normal force between the car and the track is due to the weight of the car (no aerodynamic effects), what is the radius of the track?
Consider the motion of a car around a banked curve. The angle of the bank with...
Consider the motion of a car around a banked curve. The angle of the bank with respect to the horizontal is 15.0 degrees, the speed of the car is 20.0 m/s, the radius of curvature for the curve is 30.0 m, and the coefficient of static friction is 0.500. The mass of the car is 1000 kg. a) What is the frictional force? b) Is there a speed at which the frictional force would be zero? If so, what is...
Banked curves are designed so that the radial component of the normal force on the car rounding
Banked curves are designed so that the radial component of the normal force on the car rounding the curve provides the centripetal force required to execute uniform clrcular motion and safely negotlate the curve. A car rounds a banked curve with banking angle θ-27.1° and radius of curvature 157 m. (a) It the coefficient of static friction between the car's tires and the road is -0.316, what is the range ot speeds for which the car can safely negotiate the turn...
A 1080 kg Smart car is going around a 58 m radius curve. The coefficient of...
A 1080 kg Smart car is going around a 58 m radius curve. The coefficient of static friction is 0.80. If the curve had a 13degree bank with respect to the horizontal, at what speed should the cargo so there is no friction force? (include units with answer) Determine the maximum speed the car can go around the banked turn without sliding, (include units with answer)
Consider again the problem of a car traveling along a banked turn. Sometimes roads have a...
Consider again the problem of a car traveling along a banked turn. Sometimes roads have a "reversed" banking angle. That is, the road is tilted "away" from the center of curvature of the road. If the coefficient of static friction between the tires and the road is μs = 0.4, the radius of curvature is 25 m, and the banking angle is 14°, what is the maximum speed at which a car can safely navigate such a turn?
A car with a mass of 2000 kg is moving around a banked curve with a...
A car with a mass of 2000 kg is moving around a banked curve with a constant speed of 20 m/s (about 44 MPH). The radius of curvature of the curve is 73 m. (a) What is the centripetal acceleration of the car? (b) What is the magnitude of the horizontal component of the normal force that would be required to produce this centripetal acceleration in the absence of any friction?
Part A. The sports car, having a mass of 1700 kg, is traveling horizontally along a...
Part A. The sports car, having a mass of 1700 kg, is traveling
horizontally along a 20° banked track which is circular and has a
radius of curvature of ρ = 100 m. If the coefficient of
static friction between the tires and the road is
μs = 0.2 . Determine the maximum constant speed
at which the car can travel without sliding up the slope. Neglect
the size of the car.
Part B. Using Data in Part A, determine...
Banked Racetrack Without Friction A puck is sliding around a circular track that is banked at an angle with respect to the horizontal such that no friction between the puck and the track is required to keep the puck from slipping up or down the track. If the puck is moving at a speed 30.9 m/s and the radius of the track is 405 m, determine θ. Suhmit Answer
A 1080 kg Smart car is going around a 58 m radius curve. The coefficient of static friction is 0.80. If the curve had a 13degree bank with respect to the horizontal, at what speed should the cargo so there is no friction force? (include units with answer) Determine the maximum speed the car can go around the banked turn without sliding, (include units with answer)
Part A. The sports car, having a mass of 1700 kg, is traveling
horizontally along a 20° banked track which is circular and has a
radius of curvature of ρ = 100 m. If the coefficient of
static friction between the tires and the road is
μs = 0.2 . Determine the maximum constant speed
at which the car can travel without sliding up the slope. Neglect
the size of the car.
Part B. Using Data in Part A, determine...
