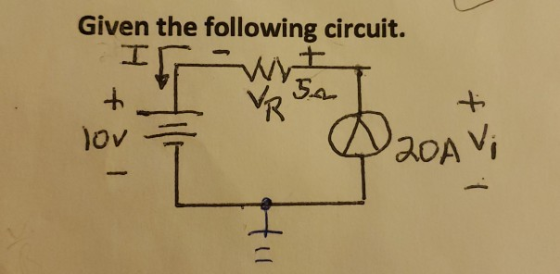

given the attached circuit.
what is the value of the current "I"?
what is the value of the volagr across the resistor?
what is the voltage across the curreny source "Vi"?
Homework Answers
