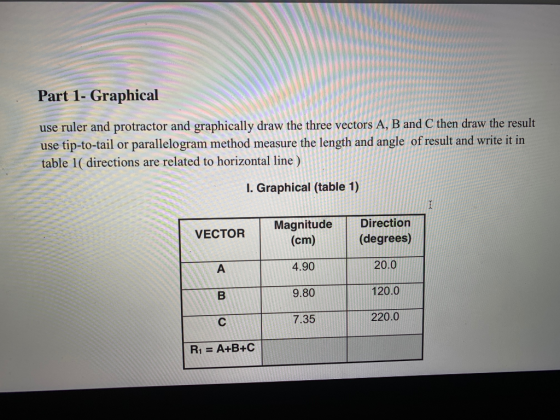

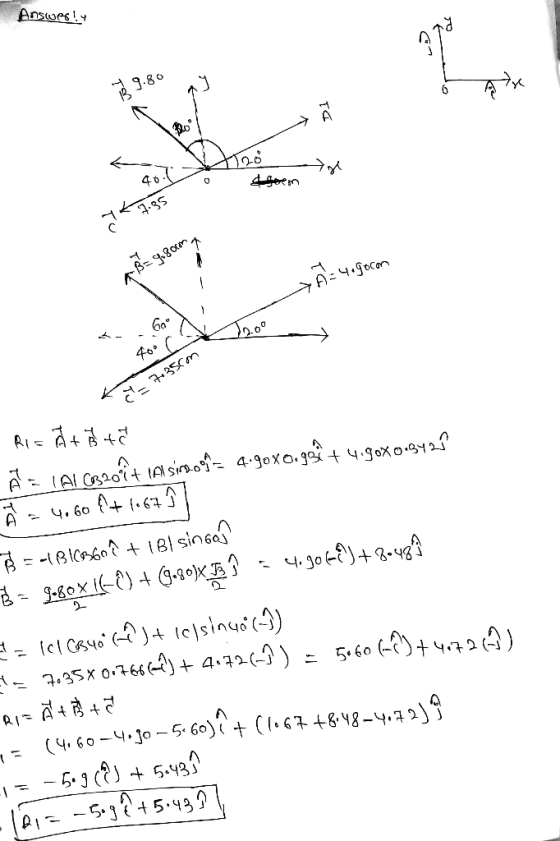

Part 1- Graphical use ruler and protractor and graphically draw the three vectors A, B and...
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for...
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for each trial. Use the scale: 1.00 cm = 20.0 g Using a protractor and a ruler, carefully draw each vector with the proper length (magnitude) and orientation (direction) in a nose-to-tail arrangement. Note: If you don't have a protractor, you may use trigonometry. However, it is important to realize that graphical vector addition can be performed without the use of trigonometry. Each subsequent vector...
HW 2 1. Three vectors are shown in the figure. Their magnítudes are given in arbitrary...
HW 2 1. Three vectors are shown in the figure. Their magnítudes are given in arbitrary units. Determine the sum R-A+B+C of the three vectors GRAPHICALLY. Using the grid paper provided, draw each vector to scale (Let's say Icm: 10 arbitrary units) using the tail- to-head method with a ruler and protractor. When you are done, measure the length and angle of the resultant vector to determine its magnitude and direction wrt. +x-axis. A(A 440) 56.0° 28.0° C (C 31.0
1. Draw the following three vectors tip to tail: A-3 cm NE (Note: NE = 45°)...
1. Draw the following three vectors tip to tail: A-3 cm NE (Note: NE = 45°) B = 6 cm S (Note: S = 270º) C=8 cm at 110° All angles should be measured from the horizontal. 2. Now connect the tail of vector A to the tip of vector C. This is the Resultant Vector, R. 3. Measure the length of vector R and it's angle from the horizontal, 8. Length of R-
Vector Resolution Worksheet 13120 Using a ruler and protractor, perform the following vector resolutions: 1. A...
Vector Resolution Worksheet 13120 Using a ruler and protractor, perform the following vector resolutions: 1. A walker pushes downward and backward with a total force of 200N at an angle of 40 degrees to the ground. Resolve this force to obtain the magnitude of the vertical and horizontal components.
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors,...
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors, A-(3.00 N, 1809), B-(3.00 N, 30%), and C-(8.00 N, 330%) are given. a) Starting from Vector A, draw the Resultant Vector and Equivalent Vector by using H-T method. R-A +B+C, R+E-0. Vector, A is given. From starting point A, draw B, C, R, and E vector. 0 T b) Find the magnitude of Rusing graphical method. c) Find the angle of R using protractor....
Ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-...
how do you do 7 and 8 ?
ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-components of the resultant vector. B) Break the (given) vectors down into their x-, y, and 2-componerto c) Combine total x, y-, and z-components using Pythagorean Thetee sine the resultant vector and use tangent to determine its angle. and cosines nd the magnitude of Graphical Representation of Vectors You will need o ruler, graph poper,...
1. Consider the diagram showing two force vectors: a) If vector FA represents 75 N, use...
1. Consider the diagram showing two force vectors:
a) If vector FA represents 75 N, use a ruler to measure the length
of FA on the diagram and determine the scale factor in cm/N.
b) Use your ruler to measure FB and then use the scale factor from
part a) to find the magnitude of FB.
c) Use the parallelogram method to draw (and label) the resultant
force, FR. Measure FR with your ruler to find the magnitude of the...
6 ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is...
6
ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is in: Provide an example of a) ID b) 2D c) 3D (graphi Outline the main vector operations we will use in class: a) Vector Addition b) Vector Subtraction c) Scalar Multiplication d) Vector Dot Product e) Vector Cross Product What is a resultant vector? 4 What is the component of a vector? 3,Define a unit vector. Give an example of a unit vector in...
M2 instructions: In M2 data sheet you are adding vector A and B in 5 different...
M2 instructions: In M2 data sheet you are adding vector A and B in 5 different cases (a,b,c,d,e). In all cases Vector A is 3 N and vector B is 4 N, but in each case, they have different directions. Your task is to find vector C such that A+B=C. we are using drawing method of vector addition. To learn how to add 2 vectors watch the posted video. You should return the data sheet and show vector C and...
Part II: Vectors in a Maze 1. Using only straight lines, find your way from the...
Part II: Vectors in a Maze 1. Using only straight lines, find your way from the top of the maze to the bottom. 2. Determine the magnitude and direction of the individual vectors required to navigate the maze. 3. Determine the x and y components of each vector. Graphically add the vertical and horizontal components. 5. Draw the resultant 6. Calculate the magnitude and direction of the resultant 7. Measure the magnitude and direction of the resultant. How do they...
4-5 2. Graphical Addition Using the graph paper and starting points provided, add the vectors for each trial. Use the scale: 1.00 cm = 20.0 g Using a protractor and a ruler, carefully draw each vector with the proper length (magnitude) and orientation (direction) in a nose-to-tail arrangement. Note: If you don't have a protractor, you may use trigonometry. However, it is important to realize that graphical vector addition can be performed without the use of trigonometry. Each subsequent vector...
HW 2 1. Three vectors are shown in the figure. Their magnítudes are given in arbitrary units. Determine the sum R-A+B+C of the three vectors GRAPHICALLY. Using the grid paper provided, draw each vector to scale (Let's say Icm: 10 arbitrary units) using the tail- to-head method with a ruler and protractor. When you are done, measure the length and angle of the resultant vector to determine its magnitude and direction wrt. +x-axis. A(A 440) 56.0° 28.0° C (C 31.0
1. Draw the following three vectors tip to tail: A-3 cm NE (Note: NE = 45°) B = 6 cm S (Note: S = 270º) C=8 cm at 110° All angles should be measured from the horizontal. 2. Now connect the tail of vector A to the tip of vector C. This is the Resultant Vector, R. 3. Measure the length of vector R and it's angle from the horizontal, 8. Length of R-
Vector Resolution Worksheet 13120 Using a ruler and protractor, perform the following vector resolutions: 1. A walker pushes downward and backward with a total force of 200N at an angle of 40 degrees to the ground. Resolve this force to obtain the magnitude of the vertical and horizontal components.
3. (Point 32) Using the Graphical Method (Head-Tail), Try the Resultant Vector and Equivalent Vector. Vectors, A-(3.00 N, 1809), B-(3.00 N, 30%), and C-(8.00 N, 330%) are given. a) Starting from Vector A, draw the Resultant Vector and Equivalent Vector by using H-T method. R-A +B+C, R+E-0. Vector, A is given. From starting point A, draw B, C, R, and E vector. 0 T b) Find the magnitude of Rusing graphical method. c) Find the angle of R using protractor....
how do you do 7 and 8 ?
ah arbnrary number nents, and all 2-companents separately to f of vector ately to find x-, y"r z-components of the resultant vector. B) Break the (given) vectors down into their x-, y, and 2-componerto c) Combine total x, y-, and z-components using Pythagorean Thetee sine the resultant vector and use tangent to determine its angle. and cosines nd the magnitude of Graphical Representation of Vectors You will need o ruler, graph poper,...
1. Consider the diagram showing two force vectors:
a) If vector FA represents 75 N, use a ruler to measure the length
of FA on the diagram and determine the scale factor in cm/N.
b) Use your ruler to measure FB and then use the scale factor from
part a) to find the magnitude of FB.
c) Use the parallelogram method to draw (and label) the resultant
force, FR. Measure FR with your ruler to find the magnitude of the...
6
ture Supplement 4: Intro Vectors Worksheet B a vector (graphical, verbal, or mathematical) that is in: Provide an example of a) ID b) 2D c) 3D (graphi Outline the main vector operations we will use in class: a) Vector Addition b) Vector Subtraction c) Scalar Multiplication d) Vector Dot Product e) Vector Cross Product What is a resultant vector? 4 What is the component of a vector? 3,Define a unit vector. Give an example of a unit vector in...
M2 instructions: In M2 data sheet you are adding vector A and B in 5 different cases (a,b,c,d,e). In all cases Vector A is 3 N and vector B is 4 N, but in each case, they have different directions. Your task is to find vector C such that A+B=C. we are using drawing method of vector addition. To learn how to add 2 vectors watch the posted video. You should return the data sheet and show vector C and...
Part II: Vectors in a Maze 1. Using only straight lines, find your way from the top of the maze to the bottom. 2. Determine the magnitude and direction of the individual vectors required to navigate the maze. 3. Determine the x and y components of each vector. Graphically add the vertical and horizontal components. 5. Draw the resultant 6. Calculate the magnitude and direction of the resultant 7. Measure the magnitude and direction of the resultant. How do they...
