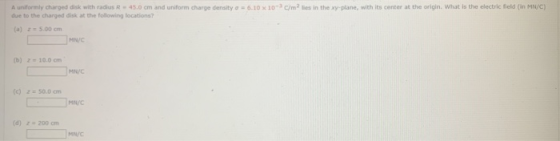

6.10 10C/m2 in the plane, with its center at the origin. What is the electric field...

Question

Question

science physics

Answer 1

Answer #1

Elective field E = 2*KG (1-02 Pred) = 2469 X 10 x 6-10x109 ( ) (6) z = 5,00m E = 3.45108 ( [co-os) ² (0.45) = 3.07x10 Nle 30

Answer 2

Similar Homework Help Questions

A uniformly charged disk with radius R = 25.0 cm and uniform charge density σ 7.60...

A uniformly charged disk with radius R = 25.0 cm and uniform charge density σ 7.60 x 10-3 C/m2 lies in the xy-plane, with its center at the origin. What is the electric field (in MN/C) due to the charged disk at the following locations? (a) z 5.00 cm MN/C (b) z 10.0 cm MN/C (c) z-50.0 cm MN/C (d) z 200 cm MN/C
A uniformly charged disk of radius 35.0 cm carries a charge density of 6.50 the disk...

A uniformly charged disk of radius 35.0 cm carries a charge density of 6.50 the disk at the following distances from the center of the disk 103 C/m2. Calculate the electric field on the axis of (a) 5.00 cm MN/C (b) 10.0 cm MN/C (c) 50.0 cm MN/C (d) 200 cm MN/C
A uniformly charged disk of radius 35.0 cm carries a charge density of 7.50 ✕ 10-3...

A uniformly charged disk of radius 35.0 cm carries a charge density of 7.50 ✕ 10-3 C/m2. Calculate the electric field on the axis of the disk at the following distances from the center of the disk. (a) 5.00 cm MN/C (b) 10.0 cm MN/C (c) 50.0 cm MN/C (d) 200 cm MN/C

A uniformly charged disk of radius 35.0 cm carries a charge density of 6.00 ✕ 10-3...

A uniformly charged disk of radius 35.0 cm carries a charge density of 6.00 ✕ 10-3 C/m2. Calculate the electric field on the axis of the disk at the following distances from the center of the disk. 5.00 cm 10.0 cm 50.0 cm 200 cm, all answers are in MN/C
A uniformly charged disk of radius 35.0 cm carries a charge density of 8.30 x 10...

A uniformly charged disk of radius 35.0 cm carries a charge density of 8.30 x 10 c/m2, Calculate the electric fheld on the a disk at the of the a) 5.00 cm MN/C (b) 10.0 cm MN/C c) 50.0 cm (d) 200 cm MN/C
A uniformly charged ring of radius 10.0 cm has a total charge of 50.0 μC. Find...

A uniformly charged ring of radius 10.0 cm has a total charge of 50.0 μC. Find the electric field on the axis of the ring at the following distances from the center of the ring. (Choose the x-axis to point along the axis of the ring.) (a) 1.00 cm What is the general expression for the electric field along the axis of a uniformly charged ring? î MN/C (b) 5.00 cm What is the general expression for the electric field...

The total electric field at a point on the axis of a uniformly charged disk, which...

The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.18 cm having a uniformly distributed charge of +4.83 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.12 mm...
The total electric field at a point on the axis of a uniformly charged disk, which...

The total electric field at a point on the axis of a uniformly charged disk, which has a radius R and a uniform charge density of σ, is given by the following expression, where x is the distance of the point from the disk. (R2 + x2)1/2 Consider a disk of radius R-3.27 cm having a uniformly distributed charge of +5.18 C. (a) Using the expression above, compute the electric field at a point on the axis and 3.30 mm...
a). Find the electric field along the axis of a thin disk placed in the xy...

a). Find the electric field along the axis of a thin disk placed in the xy plane, at a distance z from the disk center (the field at distance z from center). It has a uniform charge of density σ and an outer radius R. b). Now consider a similar disk with annular shape, it is the disk in part (a) but with a concentric hole of radius R/2. Calculate the electric field along the z axis. c). Find electric...

A circular disk of radius 'a' is uniformly charged with ps C/m2. If the disk lies on the = 0 plane with its axis along the z-axis. Determine:

A circular disk of radius 'a' is uniformly charged with ps C/m2. If the disk lies on the = 0 plane with its axis along the z-axis. Determine: (a) The electric field at (0, 0, -h) (b) From this, derive the electric field due to an infinite şheet of charge on the z = 0 plane at (0, 0, -h) (c) What will be the electric field at(0,0,-h) if a → 0
