Yes.

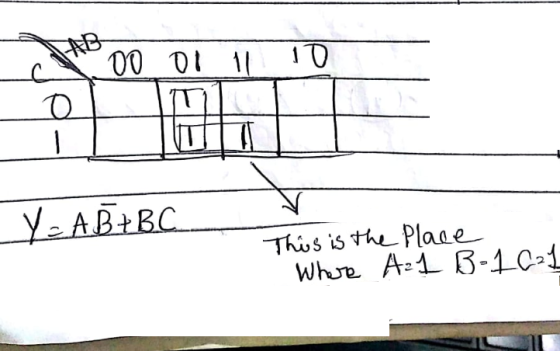

In the truth table Y has 3 truth values. last one is marked wrong in the k map. Please check the below marking:
Add Answer to:

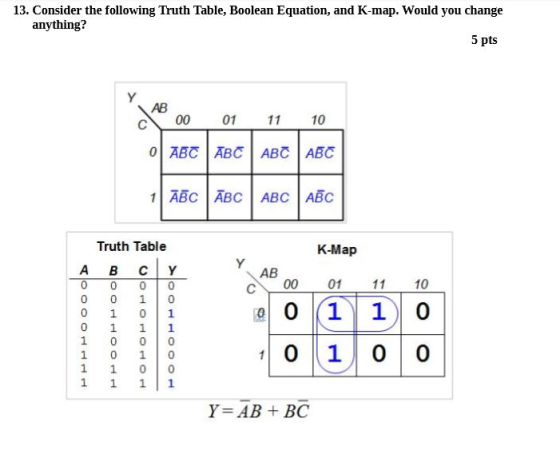

13. Consider the following Truth Table, Boolean Equation, and K-map. Would you change anything? 5 pts...
Hi, please convert the following truth table to Boolean equation, please simply as much as possible...
Hi,
please convert the following truth table to Boolean equation,
please simply as much as possible and show each stage step by step.
Thanks,
Z E 0 E 1 CD CD 00 01 11 10|00 01 11 10 X 00 01 AB 11 X 10 X. Please note X can be either zero or one. Will the empty signifies Zero
Question 3: Use a Karnaugh map to generate a simple Boolean expression for this truth table,...
Question 3: Use a Karnaugh map to generate a simple Boolean expression for this truth table, and draw a gate circuit equivalent to that expression: Qutpat А 0 в 0 0 0 0 0 0 1 1 0 0 1 0 0 0 1 1 0 0 0 1 1 1 ВС 10 00 01 11 A 0 1 Quostion 5 Use a Kamaugh map to generete a simple Boolean expression for this truth table, and draw a gate circuit...
Please show the detailed proof clearly.. 1. The Karnuagh map results from this Boolean equation AB...
Please show the detailed proof
clearly..
1. The Karnuagh map results from this Boolean equation AB 00 01 11 10 CD 8 0 01 0 0 11 0 0 10 0 0 0 0 a) F(ABCD) - BC' + AC'D' + ABD b) F(ABCD) - B'C' + AC'D' + ABD c) F(ABCD) - BC' + AC'D' + ABD' d) F(ABCD)==BC' + AC'D' + AB'D'
5. Simplify the following Boolean funct e following Boolean function by means of a four-variable K-map....
5. Simplify the following Boolean funct e following Boolean function by means of a four-variable K-map. Show your map and groups and write the simplest equation using proper variable names. F(W,X,Y,Z) = m (0, 1, 2, 3, 4, 6, 7, 10, 11, 12, 13, 14)
1.Show the circuit for the truth table shown above 2.Extract the Boolean equation to describe the...
1.Show the circuit for the truth table shown above
2.Extract the Boolean equation to describe the circuit you found.
Don’t simplify it yet!!!
3,Reduce the Boolean equation to its simplest form. Cite any
Boolean identities used
4.Draw the logic circuit corresponding to the simplified
expression and its truth table.
BC z 0 0 1 ololo 1 0 0 0 0 1 10 110
DI Question 6 2 pts Consider the following Truth table 000 0| 0 000 11 00 10| 0 00 1 11 0100|1 01 0 11 0 01 1 0 | 0 01 1 1| 0 100 0 | 0 100 1| 1 10 1010 10 1 1| 1 11 001 O 11 0 1 1 0 Fill the followi...
DI Question 6 2 pts Consider the following Truth table 000 0| 0 000 11 00 10| 0 00 1 11 0100|1 01 0 11 0 01 1 0 | 0 01 1 1| 0 100 0 | 0 100 1| 1 10 1010 10 1 1| 1 11 001 O 11 0 1 1 0 Fill the following K-map 01 2 Select ▼ | [Select] 01 sect] | ▼ | [Select] ▼ | [Select] [Select] f11 15 | ▼...
For the given truth table use a K-map to derive the minimum SOP. Please comment on...
For the given truth table use a K-map to derive the minimum SOP.
Please comment on how you know which groupings of 1's you
circle.
AB CLF 0001 0 01 0 1 0O 0 1 1 0 1 0 0 101 1 1 0 0 Fig. 4.46 Logic minimization 8
use ‘ for not Question 2 Given the following Truth Table: Inputs AB Outputs X 00...
use
‘ for not
Question 2 Given the following Truth Table: Inputs AB Outputs X 00 0 1 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for x in the answer box below. Note: Do not include "x="in your answer it will be marked wrong
A truth table for the Boolean function F is shown below. ldentify all of the terms...
A truth table for the Boolean function F is shown below. ldentify all of the terms that would be ORed together to form the Boolean expression for F A B C F 0001 0 0 11 011 0 10 0 0 1 1 0 0 A. ABC B. AB'C C. ABC D. A'BC E. AB'C F. AB'C G. ABC H. ABC
K-Maps and Logic circuits Name: Dig Sys and Micro EEET-247 Homework#2 1) Given the function F1...
K-Maps and Logic circuits
Name: Dig Sys and Micro EEET-247 Homework#2 1) Given the function F1 - ABCD ABCD ABCD ABCD a) Create the K-map and reduce into simplest form. Draw the logic circuit b) 2) Given the following truth table: a) b) Create the K-map and reduce into simplest form. Draw the logic circuit. o lo lo lo lo 0 01 01 0 01 10 0 1 0 0 1 0 1 1 01 1 00 0 1 0...
Hi,
please convert the following truth table to Boolean equation,
please simply as much as possible and show each stage step by step.
Thanks,
Z E 0 E 1 CD CD 00 01 11 10|00 01 11 10 X 00 01 AB 11 X 10 X. Please note X can be either zero or one. Will the empty signifies Zero
Question 3: Use a Karnaugh map to generate a simple Boolean expression for this truth table, and draw a gate circuit equivalent to that expression: Qutpat А 0 в 0 0 0 0 0 0 1 1 0 0 1 0 0 0 1 1 0 0 0 1 1 1 ВС 10 00 01 11 A 0 1 Quostion 5 Use a Kamaugh map to generete a simple Boolean expression for this truth table, and draw a gate circuit...
Please show the detailed proof
clearly..
1. The Karnuagh map results from this Boolean equation AB 00 01 11 10 CD 8 0 01 0 0 11 0 0 10 0 0 0 0 a) F(ABCD) - BC' + AC'D' + ABD b) F(ABCD) - B'C' + AC'D' + ABD c) F(ABCD) - BC' + AC'D' + ABD' d) F(ABCD)==BC' + AC'D' + AB'D'
5. Simplify the following Boolean funct e following Boolean function by means of a four-variable K-map. Show your map and groups and write the simplest equation using proper variable names. F(W,X,Y,Z) = m (0, 1, 2, 3, 4, 6, 7, 10, 11, 12, 13, 14)
1.Show the circuit for the truth table shown above
2.Extract the Boolean equation to describe the circuit you found.
Don’t simplify it yet!!!
3,Reduce the Boolean equation to its simplest form. Cite any
Boolean identities used
4.Draw the logic circuit corresponding to the simplified
expression and its truth table.
BC z 0 0 1 ololo 1 0 0 0 0 1 10 110
DI Question 6 2 pts Consider the following Truth table 000 0| 0 000 11 00 10| 0 00 1 11 0100|1 01 0 11 0 01 1 0 | 0 01 1 1| 0 100 0 | 0 100 1| 1 10 1010 10 1 1| 1 11 001 O 11 0 1 1 0 Fill the following K-map 01 2 Select ▼ | [Select] 01 sect] | ▼ | [Select] ▼ | [Select] [Select] f11 15 | ▼...
For the given truth table use a K-map to derive the minimum SOP.
Please comment on how you know which groupings of 1's you
circle.
AB CLF 0001 0 01 0 1 0O 0 1 1 0 1 0 0 101 1 1 0 0 Fig. 4.46 Logic minimization 8
use
‘ for not
Question 2 Given the following Truth Table: Inputs AB Outputs X 00 0 1 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for x in the answer box below. Note: Do not include "x="in your answer it will be marked wrong
A truth table for the Boolean function F is shown below. ldentify all of the terms that would be ORed together to form the Boolean expression for F A B C F 0001 0 0 11 011 0 10 0 0 1 1 0 0 A. ABC B. AB'C C. ABC D. A'BC E. AB'C F. AB'C G. ABC H. ABC
K-Maps and Logic circuits
Name: Dig Sys and Micro EEET-247 Homework#2 1) Given the function F1 - ABCD ABCD ABCD ABCD a) Create the K-map and reduce into simplest form. Draw the logic circuit b) 2) Given the following truth table: a) b) Create the K-map and reduce into simplest form. Draw the logic circuit. o lo lo lo lo 0 01 01 0 01 10 0 1 0 0 1 0 1 1 01 1 00 0 1 0...
