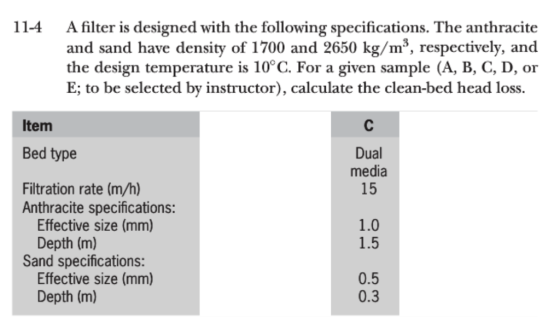

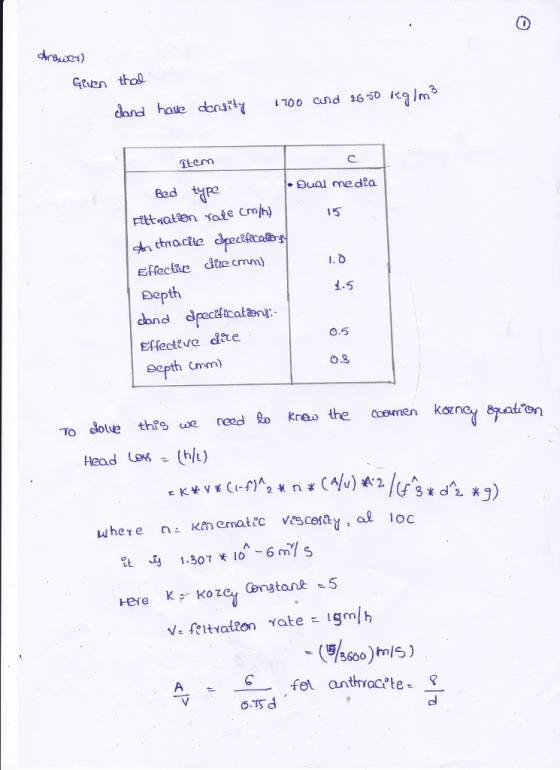

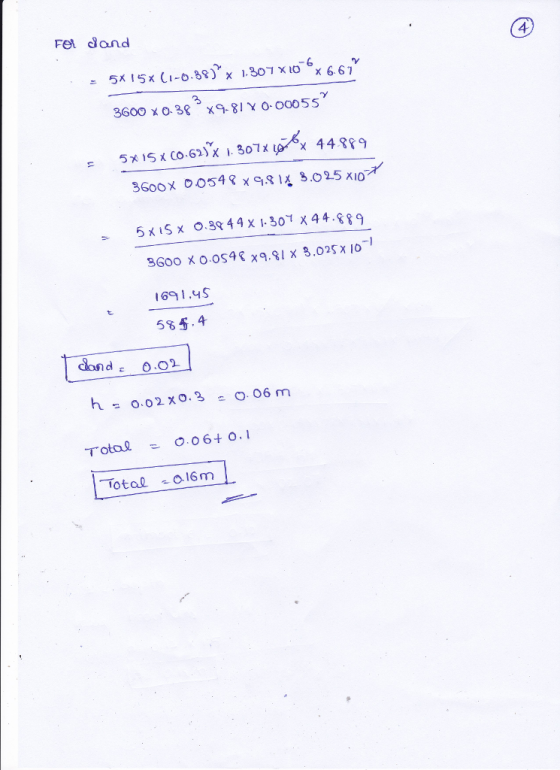

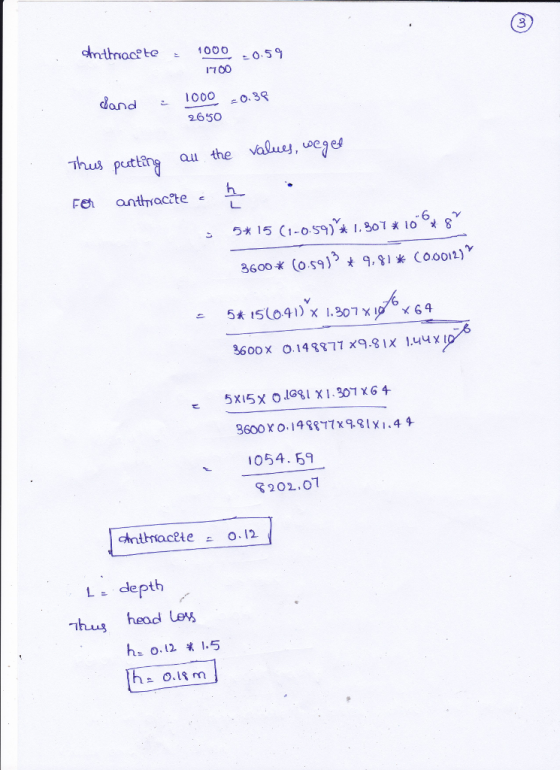

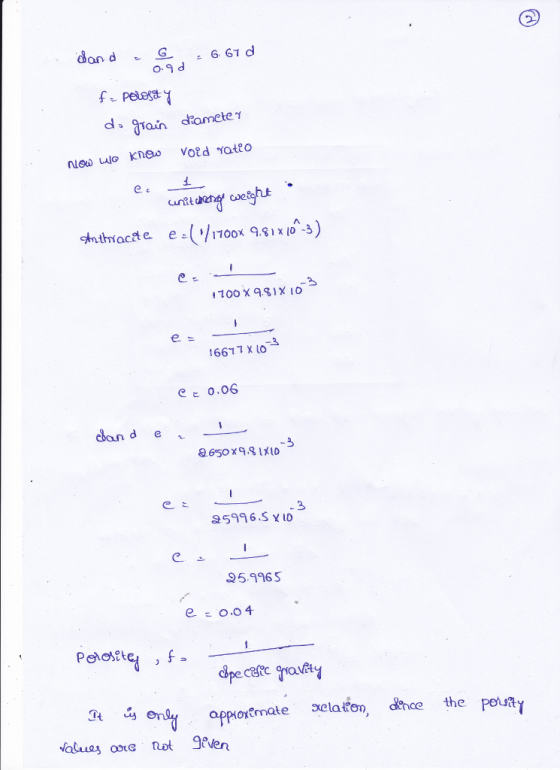

A filter is designed with the following specifications. The anthracite and sand have density of 1700...
a rapid sand filter has the following conditions: volumetric flow filtered = 3000 m^3/d, clean bed...
a rapid sand filter has the following conditions: volumetric flow filtered = 3000 m^3/d, clean bed filtration velocity = 4.6 m/h, water temp of 8 degrees Celsius, filter porosity during filtration =.43, filter porosity during backwash=.65, length of bed=.75m, particle diameter of media=.68mm, particle shape factor=.82, settling velocity of filter particle=.10 m/sec given this information, please calculate the clear water head loss, the depth of the filer during backwash, the velocity of backwash, and the total surface area of the...
Primary clarifier is to be designed for a municipal wastewater treatment plant with a flow of 416...
primary clarifier is to be designed for a municipal wastewater treatment plant with a flow of 4160 m/d and peak flow during the day of 3.10 times the average hourly flow. Pertinent data are: peak overflow rate 73.3 m/d.-m2, maximum peak weir loading 373 m3/d-m, and minimum tank depth 2.13 m. Determine: A. The clarifier diameter B. The side water deptlh C. The peak weir loading. Is it acceptable? D. The percent suspended solids removal on the basis of the...
3) (35 pts) There is a dual-media filter with 0.5 m of anthracite coal and 0.3...
3) (35 pts) There is a dual-media filter with 0.5 m of anthracite coal and 0.3 of sand. Other data for anthracite: specific gravity is 1.67, porosity is 0.5, deo grain size is 1.5 mm. Other data for sand: specific gravity is 2.65, porosity is 0.4, doo grain size is 0.9 mm. The water temperature is 200, so the mass density of water (p) is 998.2 kg/m' and the absolute viscosity is 1.002 x 103 kg/m-s. Assuming a 30% margin...
Calculate the head loss through a clean sand filter with a gradation as given by the...
Calculate the head loss through a clean sand filter with a gradation as given by the sieve analysis below. The filtration rate is 2.7 L/m^2*s, and the water temperature is 10 C. The filter depth is 0.7 m with a porosity of 0.45, and the sand grains have a sphericity of 0.75. Sieve designation number 12 16 20 30 40 50 Fraction of sand retained 0 0.05 0.22 0.51 0.20 0.02 Determine the effective size and uniformity coefficient for the...
Can someone solve this please? ENVE 4410/5510 INTRODUCTION TO ENVIRONMENTAL ENGINEERING PROBLEM SET NO. 9 Filtration...
Can someone solve this please?
ENVE 4410/5510 INTRODUCTION TO ENVIRONMENTAL ENGINEERING PROBLEM SET NO. 9 Filtration 1. (VH, p.348,10.28) Using the Kozeny equation, calculate the initial head loss (in ft) through a filter with 18 in. of uniform sand having a porosity of 0.42 and a grain diameter of 1.6 x 103 ft. Assume spherical particles and a water temperature of 50°F. The filtration rate is 2.5 gpm/ft 2. (DC, p 280; 3-81) The rapid sand filter being designed for...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
SYNOPSIS The product manager for coffee development at Kraft Canada must decide whether to introduce the...
SYNOPSIS The product manager for coffee development at Kraft Canada must decide whether to introduce the company's new line of single-serve coffee pods or to await results from the product's launch in the United States. Key strategic decisions include choosing the target market to focus on and determining the value proposition to emphasize. Important questions are also raised in regard to how the new product should be branded, the flavors to offer, whether Kraft should use traditional distribution channels or...
primary clarifier is to be designed for a municipal wastewater treatment plant with a flow of 4160 m/d and peak flow during the day of 3.10 times the average hourly flow. Pertinent data are: peak overflow rate 73.3 m/d.-m2, maximum peak weir loading 373 m3/d-m, and minimum tank depth 2.13 m. Determine: A. The clarifier diameter B. The side water deptlh C. The peak weir loading. Is it acceptable? D. The percent suspended solids removal on the basis of the...
3) (35 pts) There is a dual-media filter with 0.5 m of anthracite coal and 0.3 of sand. Other data for anthracite: specific gravity is 1.67, porosity is 0.5, deo grain size is 1.5 mm. Other data for sand: specific gravity is 2.65, porosity is 0.4, doo grain size is 0.9 mm. The water temperature is 200, so the mass density of water (p) is 998.2 kg/m' and the absolute viscosity is 1.002 x 103 kg/m-s. Assuming a 30% margin...
Can someone solve this please?
ENVE 4410/5510 INTRODUCTION TO ENVIRONMENTAL ENGINEERING PROBLEM SET NO. 9 Filtration 1. (VH, p.348,10.28) Using the Kozeny equation, calculate the initial head loss (in ft) through a filter with 18 in. of uniform sand having a porosity of 0.42 and a grain diameter of 1.6 x 103 ft. Assume spherical particles and a water temperature of 50°F. The filtration rate is 2.5 gpm/ft 2. (DC, p 280; 3-81) The rapid sand filter being designed for...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
SYNOPSIS The product manager for coffee development at Kraft Canada must decide whether to introduce the company's new line of single-serve coffee pods or to await results from the product's launch in the United States. Key strategic decisions include choosing the target market to focus on and determining the value proposition to emphasize. Important questions are also raised in regard to how the new product should be branded, the flavors to offer, whether Kraft should use traditional distribution channels or...
