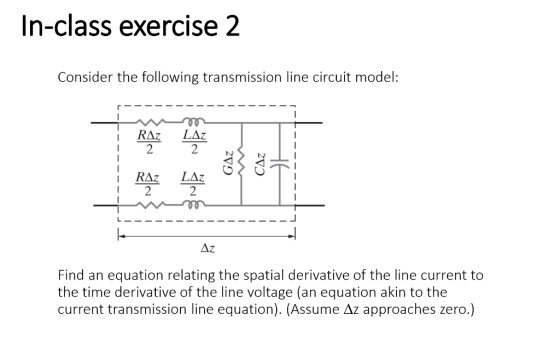

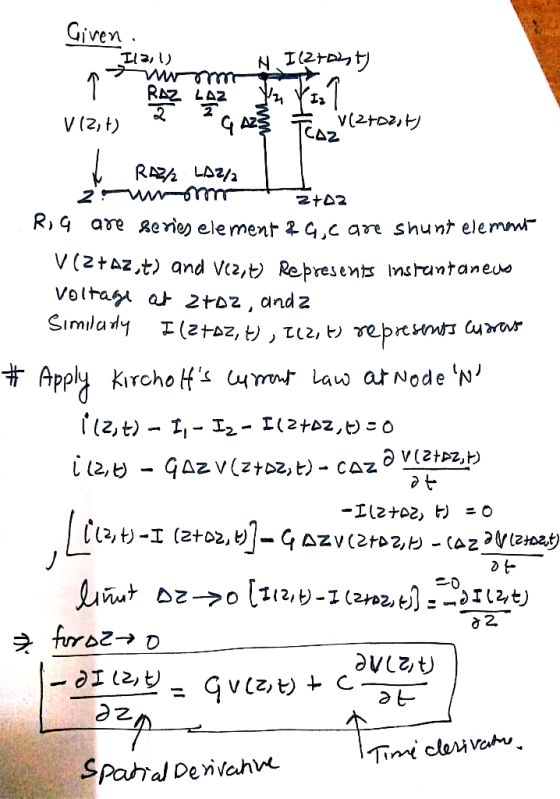

In-class exercise 2 Consider the following transmission line circuit model: - - RAZ LAZ - -...
power system
A single-circuit 60-Hz high voltage power transmission line is 370 km (230 mi) long. The conductors are Rook with flat horizontal configuration and 7.25 ms=(23.8 ft.) conductor spacing. The load on the line is 125 MW at 100% power factor. Use attached Tables A3 to A3to determine; The sending end voltage Vs The sending end current Is The sending end power Ps The percentage voltage regulation The transmission efficiency Given that Ds for the Rook conductor is 0.0327...
PROBLEM: A 230-kV, 50 Hz, three-phase transmission line is 120 km long. The line has a per phase series impedance of z-0.05 +j0.45 Ω per km, and a per phase shunt admittance of y 3.4x10-6 Siemens per km. The line delivers (at the receiving end) 200 MVA, 0.8 lagging power factor at 220 kV. Now consider two cases: A- Assume that shunt parameters of the transmission line are ignored (i.e. even if this is a medium length transmission line, under...
A single circuit three phase transmission line which is
110miles long and made of Ostrich
Problem 2: single circuit, three phase transmission line which is 110 miles long and made of Ostrich conduction ivers 70 MVA of power to a load with power factor of 0.85 lagging. If the V Lu is 169 KV and the spacing between each phase of conductors is 12.2 ft, determine: a) The line constants (ABCD) The sending end voltage, current, real and reactive power...
2.20 Use the Smith chart to find the following quantities for the transmission line circuit shown in the accompanying figure: (a) The SWR on the line. (b) The reflection coefficient at the load. (c) The load admittance. (d) The input impedance of the line (e) The distance from the load to the first voltage minimum. (f) The distance from the load to the first voltage maximum. ZL-60+)50 Ω
2. Lumped versus distributed circuits (15%) (a) A transmission line of length 1 connects a load to a sinusoidal voltage source with an oscillation frequency of f. Assuming that the velocity of wave propagation in the line is c (that is, the speed of light in vacuum), for which of the following sit- uations can we model the transmission line as a wire (that is, use a lumped-element model) and where do we need a distributed model? (i) f =...
5) (15) P4.18. Consider the circuit shown in Figure P4.18. Prior to t0, 100 V, and v20. a. Immediately after the switch is closed, what is the value of the current [i.e., what is the value of i(0+)]? b. Write the KVL equation for the circuit in terms of the current and initial voltages. Take the derivative to obtain a differential equation. c. What is the value of the time constant in this circuit? d. Find an expression for the...
1) A lossless transmission line that is 3N2 long with an impedance of 75Ω terminated by a load of 25 Ω The generator has a voltage of V,r-2sin(et) V and an internal impedance Ζ'50Ω (a) For this circuit give Vg, T, and the voltage standing wave ratio. (b) Give Vin. Inand Vo (c) Give and I (d) Give the voltage and current at the midpoint of the line (ie. P(z) and I(2) at z-3/4). (e) From the answer of (d)...
note that
1) single phase system
2) base values at transmission line circuit
A 100 MVA, 12 kV Single-phase generator has a sub transient reactance of 20%. The generator supplies a two synchronous motors over 25-km transmission line having transformers at both ends. The motors, all rated 6.0 kV, 66 MVA and 50 MVA for Mi and M2, respectively. For both motors X" = 15%. The single phase transformer T is rated 150 MVA, 132/12 kV with leakage reactance of...
Please answer ASAP
Problem 2 (35 points) For the transmission line circuit shown below, the voltage at the load is given by, vLCt)2 cos(ot +180°) v (a) Calculate the time-averaged power delivered to the load. (5 points) (b) Determine the generator voltage vs(t).(20 points) (c) Calculate the time-averaged power supplied by the generator.(10 points) 75 2 Zo-50 Ω
kV/phase, 60 Hz, lossless short transmission line has a short-circuit power of 500 MVA/phase. Consider 7. A a unity power factor load connected at the receiving end. Assume that the sending end voltage is equal to the nominal voltage. a. Determine the maximum active power this line can transmit (5 points) b. Determine the reactance of the line (5 points) c. Using basic equations of circuit analysis, show that the magnitude of the receiving end voltage (VR) is approximately 71%...
