Solve the following Job Sequencing problem. Draw Gantt chart. Find total time elapsed to complete the...
Solve the following Job Sequencing problem. Draw Gantt chart. Find total time elapsed to complete the jobs and idle time for machines.
| Job/Machine | M1 | M2 | M3 |
| 1 | 5 | 9 | 8 |
| 2 | 3 | 6 | 7 |
| 3 | 4 | 7 | 6 |
| 4 | 2 | 8 | 9 |
| 5 | 6 | 7 | 5 |
| 6 | 4 | 6 | 9 |

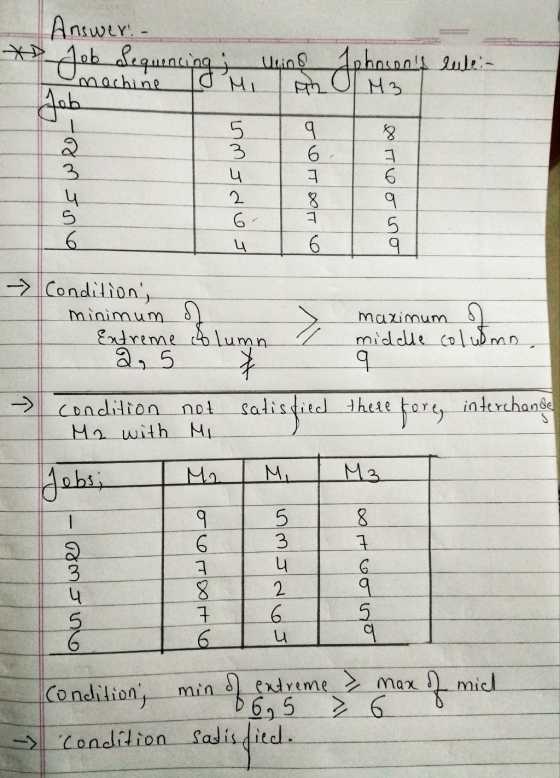

Homework Answers
(Please like the answer it will encourage me.)
