Please show the derivation of the formulas! Coil 1 has L1 = 25 mH and N1...

Question

Question

Coil 1 has L1 = 25 mH and N1 = 100 turns. Coil 2 has L2 = 40mH and N2 = 200 turns. The coils are fixed in place; their mutual

Please show the derivation of the formulas!

science physics

Answer 1

Answer #1

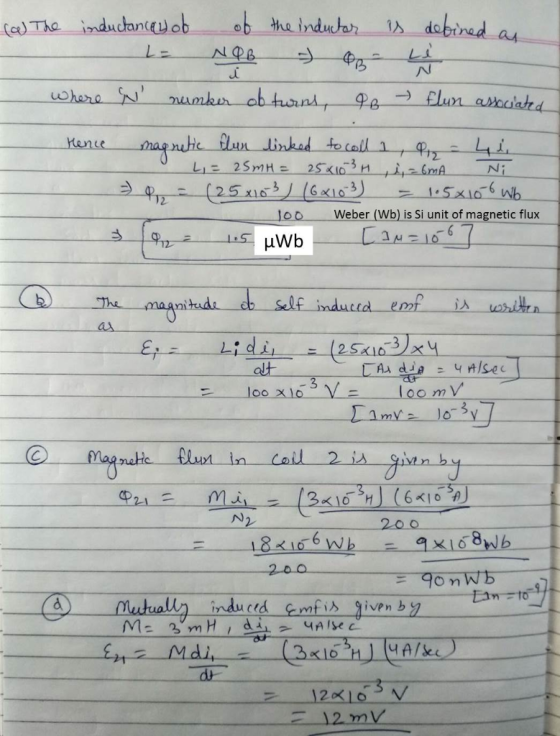

(a) The inductances of of the inductor is defined as = NOB ) BB- Le where N number of turns, 9B → Elun associated Hence magne

Answer 2

Similar Homework Help Questions

Coil 1 has L1 = 40 mH and N1 = 101 turns. Coil 2 has L2...

Coil 1 has L1 = 40 mH and N1 = 101 turns. Coil 2 has L2 = 41 mH and N2 = 234 turns. The coils are fixed in place; their mutual inductance M is 5.6 mH. A 6.1 mA current in coil 1 is changing at the rate of 4.4 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...
Coil 1 has L1 = 50 mH and N1 = 113 turns. Coil 2 has L2...

Coil 1 has L1 = 50 mH and N1 = 113 turns. Coil 2 has L2 = 72 mH and N2 = 233 turns. The coils are fixed in place; their mutual inductance M is 5.5 mH. A 7.3 mA current in coil 1 is changing at the rate of 7.3 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...
Coil 1 has L1 = 26 mH and N1 = 102 turns. Coil 2 has L2...

Coil 1 has L1 = 26 mH and N1 = 102 turns. Coil 2 has L2 = 59 mH and N2 = 216 turns. The coils are fixed in place; their mutual inductance M is 6.3 mH. A 8.4 mA current in coil 1 is changing at the rate of 4.5 A/s. (a) What magnetic flux Φ12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux Φ21 links coil 2, and (d) what...

Coil 1 has L1 = 50 mH and M, = 104 turns. Coil 2 has L2...

Coil 1 has L1 = 50 mH and M, = 104 turns. Coil 2 has L2 = 68 mH and M2 = 227 turns. The coils are fixed in place; their mutual inductance M is 3.6 mH. A 8.0 mA current in coil 1 is changing at the rate of 4.8 A/s. (a) What magnetic flux D12 links coil 1, and (b) what self-induced emf appears in that coil? (c) What magnetic flux D21 links coil 2, and (d) what...
Chapter 30, Problem 072 has L1 = 26 mH and N1 = 122 tums. Coll 2...

Chapter 30, Problem 072 has L1 = 26 mH and N1 = 122 tums. Coll 2 has L2 = 68 mH and N2 = 234 turns. The colls are fixed in place; their mutual inductance M is 5.2 mH. A 6.8 A current in coil 1 is changing at the rate of 6.0 A/s a w at magnetic flux Φ12 lin 1, and (b) what self-induced emf appears in that col? (c) Wh t magnetic flux Φ21 links coil 2,...
LI and L2 are two coils with 800 turns and 1500 turns respectively. It is found...

LI and L2 are two coils with 800 turns and 1500 turns respectively. It is found that 55 % of the flux produced by coil L1 links with the coil L2. A current of 7A in coil LI produces 60u Wb ; while a current of 3A in coil L2 produces 30 Wb. Determine: a. The mutual inductance b. The self- inductances

A coil has 460 turns and self-inductance 7.50 mH. The current in the coil varies with...

A coil has 460 turns and self-inductance 7.50 mH. The current in the coil varies with time according to i=(680mA)cos[πt/(0.0250s)]. What is the maximum emf induced in the coil? What is the maximum average flux through each turn of the coil? At t=0.0180 s, what is the magnitude of the induced emf?
10. A coil has 400 turns and self-inductance 4.80 mH. The current in the coil varies...

10. A coil has 400 turns and self-inductance 4.80 mH. The current in the coil varies with time according to i=(680mA)cos(att/0.0250s). (a) What is the maximum emf induced in the coil? (b) What is the maximum average flux through each turn of the coil? (c) At t= 0.0180 s, what is the magnitude of the induced emf?
A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2)...

A long solenoid (coil 1) is surrounded at its center by a shorter coil (coil 2) as in (Figure 1). At an instant when the current in coil 1 is 44.0 A and increasing at a rate of 2.00 A/s, the induced emf in coil 2 is 1.50×10−4 V. What is the mutual inductance of the two coils? At this instant, what is the total magnetic flux through all the turns of coil 2 due to the current in coil...

(5pts) Self-inductance (L) ofacoil is defined as the constant ofproporto nality between the coil current (i)...

(5pts) Self-inductance (L) ofacoil is defined as the constant ofproporto nality between the coil current (i) and the flux (NO) linking the coil (ie, 1 = NO, and (iii) so, by Paraday's law, voltage in the coLUse any one of these relationships to find the self-inductance of the solenoid (Show working for full grade) Self-inductance (L) (iv) A second coil of 25 turns is tightly wound around the middle section of the solenoid, such that the flux generated by the...
