. A diffraction 1. Red laser light ( - 650 nm) is incident on a diffraction...

Question

Question

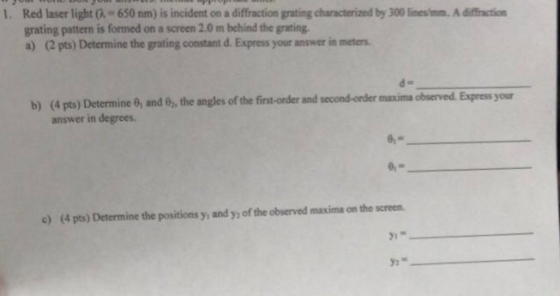

$. A diffraction 1. Red laser light ( - 650 nm) is incident on a diffraction grating characterized by 300 lines grating patter$

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

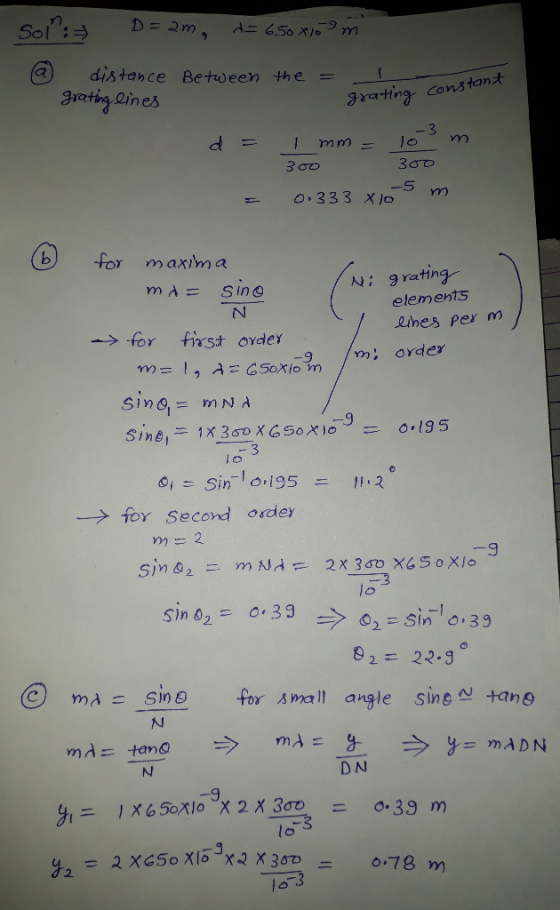

D= 2m. d= 650 X 109m a distance Between the = grating lines grating constant d = Jom 1 mm - 300 300 m 0.333 X 10 maxima Mi gr

Add a comment

Answer 2

Similar Homework Help Questions

a red laser, with a wavelength of 640 nm, shines on a diffraction grating with a...

a red laser, with a wavelength of 640 nm, shines on a diffraction grating with a grating spacing of 500 lines/mm. The resulting diffraction pattern is observed on a screen 1.00 meters away from the grating. What is the distance from the central bright spot to the first bright spot on the side chegg
A 650 nm laser illuminates a 100 lines/mm diffraction grating, producing a diffraction pattern on a...

A 650 nm laser illuminates a 100 lines/mm diffraction grating, producing a diffraction pattern on a screen (see figure). How far is the diffraction grating from the screen? SCIENCESOURCE 7 cm SCIENCESOURO
Question 10 30 pts A 650 nm laser illuminates a 100 lines/mm diffraction grating, producing a...

Question 10 30 pts A 650 nm laser illuminates a 100 lines/mm diffraction grating, producing a diffraction pattern on a screen (see figure). How far is the diffraction grating from the screen? SCIENCESOURCE 7 cm SCIENCESOURO Upload Choose a File

Problem 9: A red laser (λ = 608 nm) is incident on a diffraction grating that...

Problem 9: A red laser (λ = 608 nm) is incident on a diffraction grating that has n = 1100 lines per cm. Randomized Variables λ = 608 nm n = 1100 lines/cm Part (a) What is the angle, in radians, that the first order maximum makes, θ1? Numeric : A numeric value is expected and not an expression. θ1 = __________________________________________ Part (b) What is the angle of the fourth order maximum, θ4, in radians? Numeric : A...
Monochromatic light shines on a diffraction grating with 8,600 lines uniformly distributed over 1.8 cm. The...

Monochromatic light shines on a diffraction grating with 8,600 lines uniformly distributed over 1.8 cm. The grating is illuminated using a laser of 630 nm wavelength. A diffraction pattern is formed on a screen located at 1.7 m away from the grating. (a) What is the angle of the first-order maximum of the 630-nm light incident upon the grating? (b) What is the separation on the screen between the first and the second order maxima? (c) What is the highest...
Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of...

Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of the diffraction pattern is observed at 32.0°. (a) What is the number of rulings per centimeter for the grating?_________grooves/cm (b) Determine the total number of primary maxima that can be observed in this situation.__________

Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of...

Light of wavelength 500 nm is incident normally on a diffraction grating. The third-order maximum of the diffraction pattern is observed at 32.0°. (a) What is the number of rulings per centimeter for the grating? grooves/cm (b) Determine the total number of primary maxima that can be observed in this situation.
A red laser (lambda = 609 nm) is incident on a diffraction grating that has n...

A red laser (lambda = 609 nm) is incident on a diffraction grating that has n = 2300 lines per cm. Randomized Variables A = 609 nm n = 2300 lines/cm What is the angle, in radians, that the first order maximum makes, theta_1? What is the angle of the fourth order maximum, theta_4, in radians? theta_4 =
Short Answer (6 points diffraction grating has 5150 lines diffraction per centimeter ruled on it. It...

Short Answer (6 points diffraction grating has 5150 lines diffraction per centimeter ruled on it. It is illuminated by a laser with wavelength 633 nm. The a) What is the angular separation between the first- and the third-order bright spots on the same side of the central maximum? pattern is observed on a very wide screen 2.0 meters behind the diffraction grating. b) How many bright spots would you observe on the screen?

The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10-7 m) that is normally incident...

The below interference/diffraction pattern for two slits is observed on a screen that is 1.5 meters from the slits. Here, red light with a wavelength of 700 nm (7.0x10-7 m) that is normally incident on these slits yields this pattern. 9 mm 4 mm Using the locations of interference maxima (e.g., the m-2 maxima lies 4.0 mm from the center of the pattern), determine the distance between these two slits (in millimeters). For the above pattern, using the location of...
